PIC18LF2520-I/ML Programmable IC Chips Enhanced Flash Microcontrollers with 10-Bit A/D and nanoWatt Technology
PIC18LF2520-I/ML Programmable IC Chips Enhanced Flash Microcontrollers with 10-Bit A/D and nanoWatt Technology
Specifications
Brand Name :
Microchip
Model Number :
PIC18LF2520-I/ML
Certification :
Original Factory Pack
Place of Origin :
Malaysia
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000PCS
Delivery Time :
1 Day
Packaging Details :
in well pack
Description :

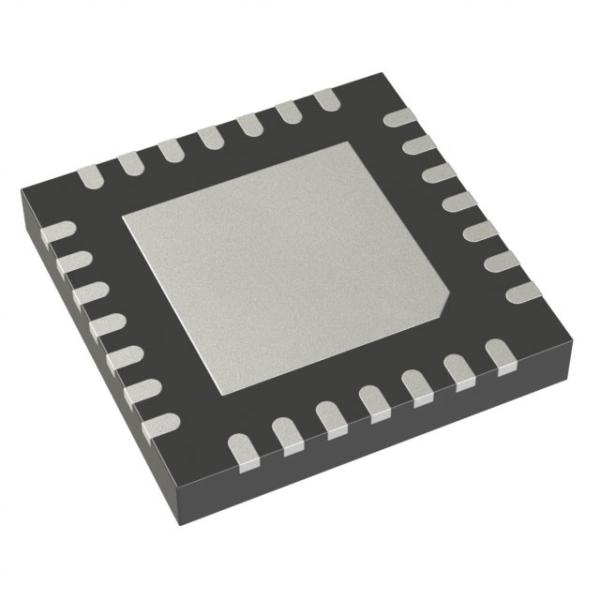

PIC PIC® 18F Microcontroller IC 8-Bit 40MHz 32KB (16K x 16) FLASH 28-QFN (6x6)
Program Memory :
32K
Main Line :
Ic,module,transistor,diodes,capacitor,resistor etc
Payment :
T/T, PayPal
Package :
SOP-28
Datecode :
2010+
Facory Package :
TRAY
Description

PIC18LF2520-I/ML

Programmable IC Chips Enhanced Flash Microcontrollers with 10-Bit A/D and nanoWatt Technology

Power Managed Modes:

• Run: CPU on, peripherals on

• Idle: CPU off, peripherals on

• Sleep: CPU off, peripherals off

• Idle mode currents down to 5.8 µA typical

• Sleep mode current down to 0.1 µA typical

• Timer1 Oscillator: 1.8 µA, 32 kHz, 2V

• Watchdog Timer: 2.1 µA

• Two-Speed Oscillator Start-up

Peripheral Highlights:

• High-current sink/source 25 mA/25 mA

• Three programmable external interrupts

• Four input change interrupts

• Up to 2 Capture/Compare/PWM (CCP) modules, one with Auto-Shutdown (28-pin devices)

• Enhanced Capture/Compare/PWM (ECCP) module (40/44-pin devices only): - One, two or four PWM outputs - SelI/Oectable polarity - Programmable dead time - Auto-Shutdown and Auto-Restart

• Master Synchronous Serial Port (MSSP) module supporting 3-wire SPI™ (all 4 modes) and I2C™ Master and Slave Modes

• Enhanced Addressable USART module: - Supports RS-485, RS-232 and LIN 1.2 - RS-232 operation using internal oscillator block (no external crystal required) - Auto-Wake-up on Start bit - Auto-Baud Detect

• 10-bit, up to 13-channel Analog-to-Digital Converter module (A/D): - Auto-acquisition capability - Conversion available during Sleep

• Dual analog comparators with input multiplexing)

Device Program Memory Data Memory I/O

10-bit A/D

(ch)

CCP/ ECCP

(PWM)

Flash

(bytes)

Single-Word

Instructions

SRAM

(bytes)

EEPROM

(bytes)
PIC18F2420 16K 8192 768 256 25 10 2/0
PIC18F2520 32K 16384 1536 256 25 10 2/0
PIC18F4420 16K 8192 768 256 36 13 1/1
PIC18F4520 32K 16384 1536 256 36 13 1/1
