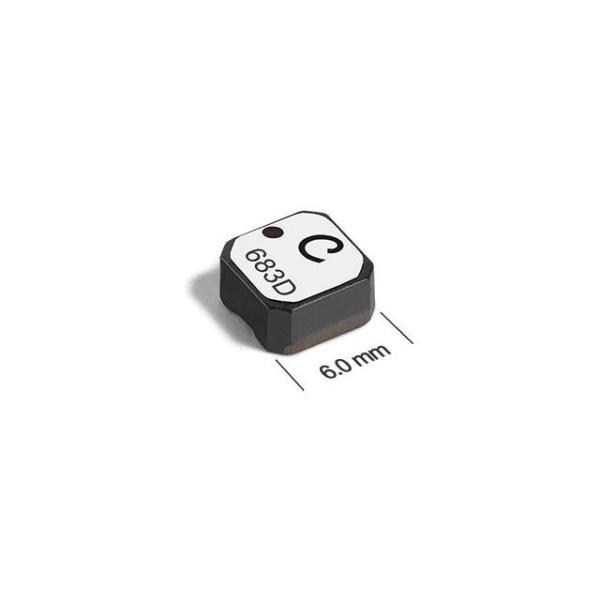

Shielded Power Inductors - LPS6235 Low DCR high current shielded construction LPS6235-103MRC
Shielded Power Inductors - LPS6235 Low DCR high current shielded construction LPS6235-103MRC
Specifications
Brand Name :
COILCRAFT
Model Number :
LPS6235-103MLC
Certification :
Original Factory Pack
Place of Origin :
Taiwan
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
580PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Description :
10 µH Shielded Drum Core Inductor 1.28 A 100mOhm Max 2424 (6060 Metric)
Core material :
Ferrite
Core and winding loss :
See www.coilcraft.com/coreloss
Terminations :
RoHS compliant silver-palladium-platinum-glass frit. Other terminations available at additional cost.
Weight :
460 – 480 mg
Ambient temperature :
–40°C to +85°C with Irms current, +85°C to +125°C with derated current
Description

Shielded Power Inductors – LPS6235

• Low DCR; high current; shielded construction

• Perfect for backlight applications

Designer’s Kit C345 contains 3 each of all values

Core material Ferrite

Core and winding loss See www.coilcraft.com/coreloss

Terminations RoHS compliant silver-palladium-platinum-glass frit. Other terminations available at additional cost.

Weight 460 – 480 mg

Ambient temperature –40°C to +85°C with Irms current, +85°C to +125°C with derated current

Storage temperature Component: –40°C to +125°C. Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity) Failures in Time (FIT) / Mean Time Between Failures (MTBF) 38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332 Packaging 350/7″reel; 1500/13″ reel Plastic tape: 16 mm wide, 0.3 mm thick, 8 mm pocket spacing, 3.68 mm pocket depth Recommended pick and place nozzle OD: 6.2 mm; ID: ≤ 3.1 mm PCB washing Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.

Shielded SMT Power Inductors – LPS6235 Series

Product tags

smd shielded power inductor

,

shielded power inductor

,

shielded smd power inductors
