SHT11 SHT70 SHT20 Pressure Sensor IC SHT1x / SHT7x Humidity & Temperature Sensor
FEATURES:

_ Relative humidity and temperature sensors
_ Dew point
_ Fully calibrated, digital output
_ Excellent long-term stability
_ No external components required
_ Ultra low power consumption
_ Surface mountable or 4-pin fully interchangeable
_ Small size
_ Automatic power down
DESCRIPTIONS

SHT1x / SHT7x Product Summary
The SHTxx is a single chip relative humidity and temperature multi sensor module comprising a calibrated digital output.
Application of industrial CMOS processes with patented micro-machining (CMOSensÆ technology) ensures highest reliability and excellent long term stability.
The device includes a capacitive polymer sensing element for relative humidity and a bandgap temperature sensor.
Both are seamlessly coupled to a 14bit analog to digital converter and a serial interface circuit on the same chip.
This results in superior signal quality, a fast response time and insensitivity to external disturbances (EMC) at a very competitive price.
Each SHTxx is individually calibrated in a precision humidity chamber with a chilled mirror hygrometer as reference.
The calibration coefficients are programmed into the OTP memory. These coefficients are used internally during measurements to calibrate the signals from the sensors.
The 2-wire serial interface and internal voltage regulation allows easy and fast system integration. Its tiny size and low power consumption makes it the ultimate choice for even the most demanding applications.

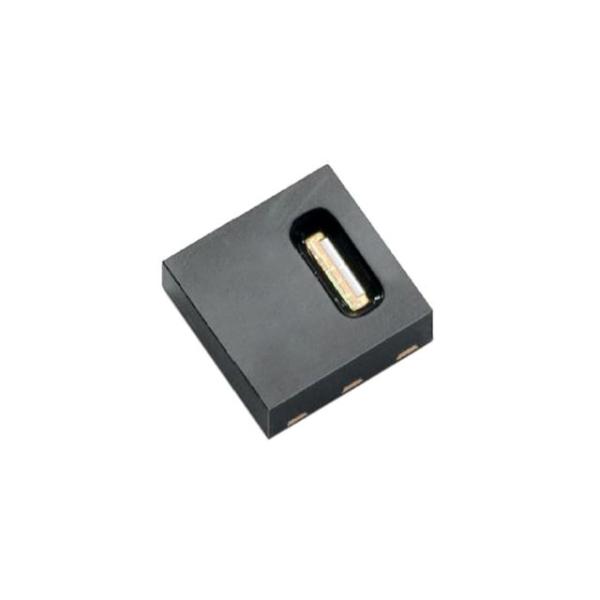

The device is supplied in either a surface-mountable LCC (Leadless Chip Carrier) or as a pluggable 4-pin single-in-line type package. Customer specific packaging options may be available on request.
