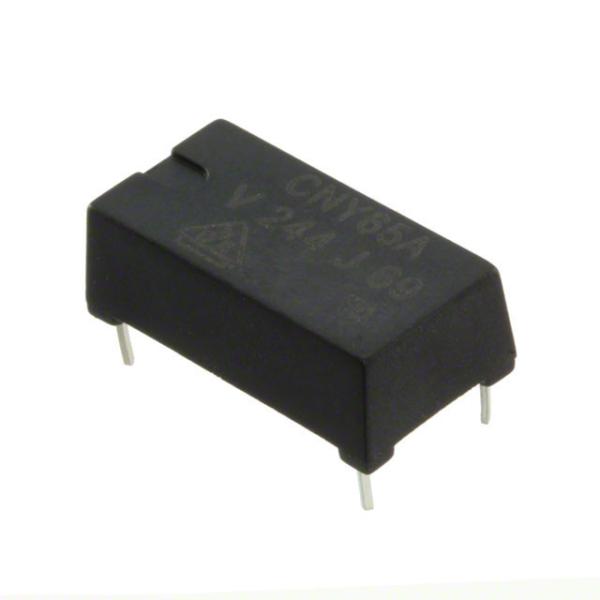

CNY65A Pressure Sensor IC Circuit Board Chips IC Chip Optocoupler with Phototransistor Output
CNY65A Pressure Sensor IC Circuit Board Chips IC Chip Optocoupler with Phototransistor Output
Specifications
Brand Name :
Vishay
Model Number :
CNY65A
Certification :
Original
Place of Origin :
CN
MOQ :
10 PCS
Price :
Please contact me for details
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000PCS/DAY
Delivery Time :
1 day
Packaging Details :
contact us for more details
Description :
Optoisolator Transistor Output 8200Vrms 1 Channel 4-DIP
Main Product Line :
IC,MODULE,TRANSISTOR,RESISTOR,DIODES,CAPACITOR
Voltage :
5V
Temperature :
-55°C---85°C
Package :
DIP-4
Payment Term :
T/T, Paypal,Western Union
Factory Pack :
TUBE
Description

CNY65A

Optocoupler, Phototransistor Output, Very High Isolation Voltage

Features

• Rated isolation voltage (RMS includes DC) VIOWM = 1000 VRMS (1450 V peak)

• Rated recurring peak voltage (repetitive) VIORM = 1000 VRMS

• Thickness through insulation ≥ 3 mm

• Creepage current resistance according to VDE 0303/IEC 60112 Comparative Tracking Index: CTI ≥ 200 • Lead-free component

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

Agency Approvals

• UL1577, File No. E76222 System Code H,J &K, Double Protection

• DIN EN 60747-5-2 (VDE0884) DIN EN 60747-5-5 pending

• VDE related features:

• Rated impulse voltage (transient overvoltage) VIOTM = 8 kV peak

• Isolation test voltage (partial discharge test voltage) Vpd = 2.8 kV peak

Applications

Circuits for safe protective separation against electrical shock according to safety class II (reinforced isolation): For appl. class I - IV at mains voltage ≤ 300 V For appl. class I - IV at mains voltage ≤ 600 V For appl. class I - III at mains voltage ≤ 1000 V according to DIN EN 60747-5-2(VDE0884)/ DIN EN 60747- 5-5 pending, table 2, suitable for: Switch-mode power supplies, line receiver, computer peripheral interface, microprocessor system interface.

Description

The CNY64/ CNY65/ CNY66 consist of a phototransistor optically coupled to a gallium arsenide infraredemitting diode in a 4-pin plastic package. The single components are mounted opposite one another, providing a distance between input and output for highest safety requirements of > 3 mm.

A part of stock list

CAP 100NF 50V X7R CL05B104KB5NNNC SAMSUNG AC82ODH SMD0402
CAP 4,7UF 10V X5R 10% CL21A475KPFNNNE SAMSUNG ACABOJN SMD0805
CAP 1NF 2KV X7R 10% CL31B102KJFNNNE SAMSUNG ACA9ORJ SMD1206
CAP 0402 10PF 50V NPO CL05C100JB5NNNC SAMSUNG AC90OSW SMD0402
CAP 0402 22PF 50V NPO CL05C220JB5NNNC SAMSUNG AC90OSW SMD0402
CAP 0805 1UF 16V X5R
CL21A105KOFNNNE		 SAMSUNG ACA7OCC SMD0805
RES 0402 10K 5%
RC0402JR-0710KL		 YAGEO 1646 SMD0402
RES 0402 100K 5% RC0402JR-07100KL YAGEO 1632 SMD0402
RES 0402 220R 5% RC0402JR-07220RL YAGEO 1625 SMD0402
RES 0402 0R 5%
RC0402JR-070RL		 YAGEO 1640 SMD0402
RES 0402 4K7 5%
RC0402JR-074K7L		 YAGEO 1640 SMD0402
RES 0R 5%
RC0805JR-070RL		 YAGEO 1645 SMD0805
RES 0402 49R9 1% RC0402FR-0749R9L YAGEO 1632 SMD0402
RES 0402 12K1 1% RC0402FR-0712K1L YAGEO 1644 SMD0402
CAP ELETR 1000UF 50V RF1H102M12.5X25 NANTUNG 16+ SMD
C.I MCP9700AT-E/TT MICROCHIP AFWJ SOT23-3
RC0805JR-0710KL YAGEO 1630 SMD0805
DIODO DF06S SEP 1611 SOP-4
TRANS. ZXMN10A09KTC ZETEX 1243 TO-252
RC0805JR-071ML YAGEO 1618 SMD0805
C.I L7812CV ST 620 TO-220
ACOPLADOR OTICO. MOC3021S-TA1 LITE-ON 1644 SOP-6
RES 1206 470R 5% RC1206JR-07470RL YAGEO 1518 SMD1206
CAP 220NF 100V 10% X7S C2012X7S2A224K085AE TDK IB16H30223SD SMD0805
RC0805JR-07330RL YAGEO 1632 SMD0805
DIODO PTZTE2518B ROHM 1639/18B/69 SMA
C.I MT29F4G08ABADAWP:D MICRON 1402 TSOP-48
DIODO SMCJ5.0A-E3/57T VISHAY 1632/GDE SMC
C.I ADS8344E TI 4ACZLLK SSOP-20
C.I DAC7714U TI 21AQSQT SOP-16
