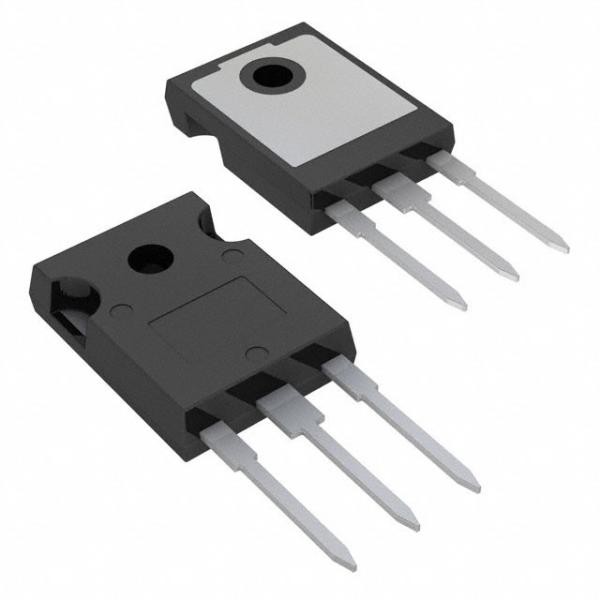

200V 50A Metal Oxide TO247 N Channel Power Mosfet IRFP260MPBF
200V 50A Metal Oxide TO247 N Channel Power Mosfet IRFP260MPBF
Specifications
Brand Name :
IR
Model Number :
IRFP260MPBF
Certification :
CE/ RoHS
Place of Origin :
USA
MOQ :
10pcs
Price :
To be negotiated
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
10,000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
Tube
Description :
N-Channel 200 V 50A (Tc) 300W (Tc) Through Hole TO-247AC
PN :
IRFP260MPBF
Brands :
IR
Original :
USA
Package :
TO-247
Current :
50A
Voltage :
200V
Description

IRFP260MPBF N - Channel Power Mosfet 200V 50A Through Hole Metal Oxide TO247-3

FEATURES

Type : MOSFETS-Single

Packaging :Tube

Part state: ACTIVE

FET type : N - Channel

Technology : MOSFET (Metal Oxide)

Drain-source voltage (VDSS) : 200V

Current - Continuous Drains (ID) (at 25°C): 50A (Tc)

Driving voltage (maximum RDS ON, minimum RDS ON) :10V

VGS (th) with different IDs (maximum) : 4V @ 250µA

Gate charge (Qg) at different VGs (Max.) : 234nC @ 10V

Input capacitance (CISS) at different VDS (maximum): 4057pF @ 25V

VGS (maximum) : ±20V

Power Dissipation (Maximum) : 300W (Tc)

RDS ON (Max.) : 40 mOhm @ 28A, 10V

Operating Temperature: -55°C ~ 175°C (TJ)

Install type: Through Hole

Supplier device package : TO-247AC

Package/enclosure : TO-247-3
