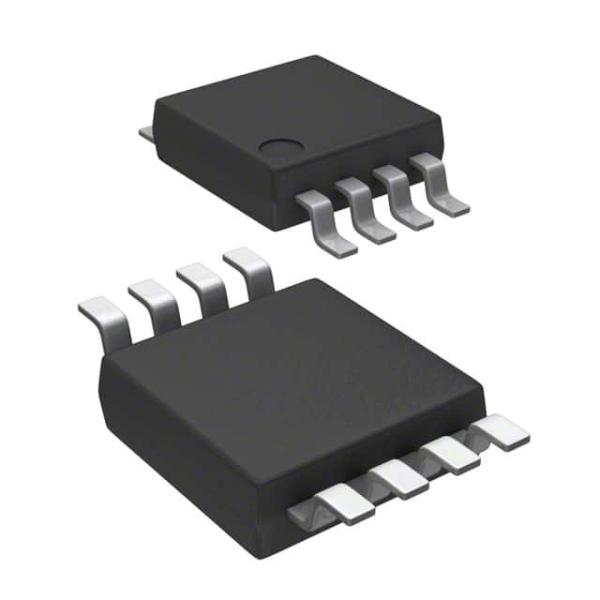

MAX1776EUA 24V 600mA Internal Switch 100% Duty Cycle Step Down Converter
MAX1776EUA 24V 600mA Internal Switch 100% Duty Cycle Step Down Converter
Specifications
Brand Name :
Analog Devices Inc./Maxim Integrated
Model Number :
MAX1776EUA
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
20pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
5200PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
IN, SHDN, ILIM, ILIM2 to GND :
.-0.3V to 25V
LX to GND :
-2V to (VIN + 0.3V)
OUT, FB to GND :
.-0.3V to 6V
Peak Input Current :
. 2A
Maximum DC Input Current :
. 500mA
Description

STOCK LIST

UPA1716 3200 NEC 16+ SOP-8
1N6303A 3201 VISHAY 16+ DO-201
ADC0801LCN 3201 NS 14+ DIP-20
ST3485EBDR 3202 ST 16+ SOP8
L6219 3205 ST 16+ DIP24/SOP24
TPS3828-50DBVR 3210 TI 15+ SOT23-5
LF156H 3211 NS 16+ CAN
TPS3828-50 3211 TI 15+ SOT-23
TIP100 3220 ST 12+ TO-220
XC5VLX50T-1FFG665C 3222 XILINX 16+ BGA
KPC357NT 3225 COSMO 12+ SOP-4
DS3696N DIP 3240 NS 16+ DIP-8
ADP3338AKC-1.8 3250 AD 16+ SOT-223
BDW93C 3250 ST 16+ TO-220
LM2575S-5.0 3250 NS 16+ TO-263
ADP3338AKC-3.3 3300 AD 16+ SOT-223
AT28C64B-15SI 3310 ATMEL 14+ SOP28
MMJT9435 3333 ON 16+ SOT223
K6X1008C2D-BF55 3336 SAMSUNG 16+ SOP32
IR2156S 3369 IR 15+ SMD-14
HM628512CLP-5 3400 HITACHI 16+ DIP32
ICM7555IPA 3426 INTERSIL 15+ DIP8
LM5025MTCX 3440 NS 12+ TSSOP16
CM1293-08MR 3442 CMD 16+ MSOP-10
LM4853MM 3450 NS 12+ MSOP10
TIP135 3450 ST 16+ TO-220
IRF9640S 3455 IR 16+ TO263
PIC16F57-I/SO 3455 MICROCHIP 16+ SOP28
SSC54 3470 VISHAY 16+ DO-214AB

MAX1776EUA

24V, 600mA Internal Switch, 100% Duty Cycle, Step-Down Converter

♦ Fixed 5V or Adjustable Output

♦ 4.5V to 24V Input Voltage Range

♦ Up to 600mA Output Current

♦ Internal 0.4Ω P-Channel MOSFET

♦ Efficiency Over 95%

♦ 15µA Quiescent Supply Current

♦ 3µA Shutdown Current

♦ 100% Maximum Duty Cycle for Low Dropout

♦ Current-Limited Architecture

♦ Thermal Shutdown

♦ Small 8-µMAX Package

General Description

The MAX1776 high-efficiency step-down converter provides an adjustable output voltage from 1.25V to VIN from supply voltages as high as 24V. An internal current-limited 0.4Ω MOSFET delivers load currents up to 600mA. Operation to 100% duty cycle minimizes dropout voltage (240mV at 600mA).

The MAX1776 has a low 15µA quiescent current to improve light-load efficiency and conserve battery life. The device draws only 3µA while in shutdown.

High switching frequencies (up to 200kHz) allow the use of tiny surface-mount inductors and output capacitors. The MAX1776 is available in an 8-pin µMAX package, which uses half the space of an 8-pin SO. For increased output drive capability, use the MAX1626/ MAX1627 step-down controllers, which drive an external P-channel MOSFET to deliver up to 20W.
