BV Certificate 5754 Aluminum Sheet Marine Applications Good Corrosion Resistance
BV Certificate 5754 Aluminum Sheet Marine Applications Good Corrosion Resistance
Specifications
Brand Name :
SR or OEM
Model Number :
Al profile 05
Certification :
SGS, BV
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 tons per month
Delivery Time :
5 - 30 days
Packaging Details :
Ocean Safe Package, Wooden Pallets/ Cases
Temper :
O/H
Material :
Aluminum alloy
Feature :
High strength / Good corrosion resistance
Type :
Aluminum sheet
Application :
Marine Applications
Item name :
5754 High Strength Aluminum Sheet Marine Applications Good Corrosion Resistance
Description

5754 High Strength Aluminum Sheet Marine Applications

Product Description

Alloy 5754 has excellent corrosion resistance especially to seawater and industrially polluted atmospheres.

It has higher strength than 5251. This high strength makes 5754 highly suited to marine applications requiring a combination of strength and resistance to corrosion in sea water.

Floating dock is a watertight compartment welded by 5754 aluminium alloy sheet. No paint or chemical treatment is needed for structure or floating dock.

In the marine environment, it is easy to maintain if use the aluminum alloy helicopter platform, 5754 has good corrosion resistance.
It takes profile splicing mode instead of welding which can prolong service life and avoid failure.

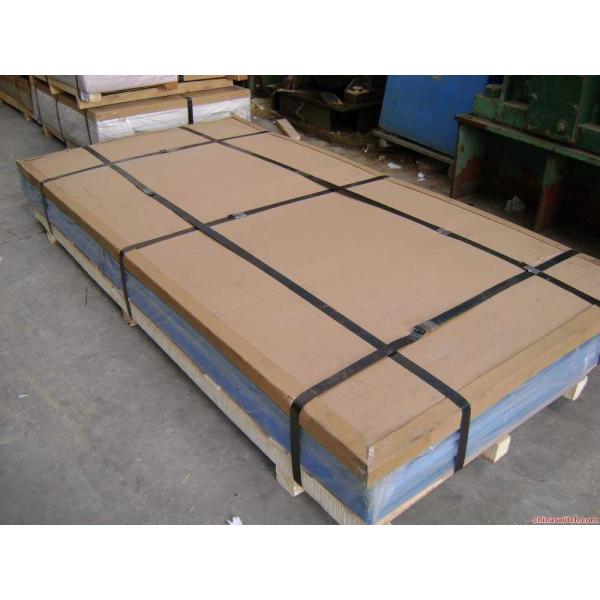

Packaging & Delivery

Packaging: Standard export package on wooden pallet OR as customize package

Port: Shanghai, Qingdao, Ningbo,Tianjin (as customer required)

Lead time: 25-45days

BV Certificate 5754 Aluminum Sheet Marine Applications Good Corrosion Resistance


Part of Alloy 5754 templers

O - Soft
H111 - Some work hardening imparted by shaping processes but less than required for H11 temper
H22 - Work hardened by rolling then annealed to quarter hard
H24 - Work hardened by rolling then annealed to half hard
H26 - Work hardened by rolling then annealed to three-quarter hard

Heat treatment process

1) Homogenization annealing: heating 440℃; holding 12-14 h; air cooling.

2) Rapid annealing: heating 350-410 ℃; holding time 30-120 min; air or water cooling.

3) High temperature annealing: heating 350-420 ℃; when the thickness of finished product is more than 6 mm or less than 6 mm, the holding time is 2-10 minutes or 10-30 minutes; air cooling.

4) Low-temperature annealing: heating 250-300 ℃ or 150-180 ℃; holding time 1-2 h, air-cooling.

Chemical composition(%)

Alloy Mg Cu Mn+Cr Fe Si Zn Mn Cr Ti Others
Each Total
5754 2.60 - 3.60 0.0-0.1 0.1-0.6 0.0-0.4 0.0-0.4 0.0-0.2 0.0-0.5 0.0-0.3 0.0-0.15 0.0-0.05 0.0-0.15

Mechanical Property Specification

Alloy
&
Temper		 Tensile
Strength
(MPa)		 Yield Strength
0.2% Proof
(MPa)min		 Elongation (% in 50mm)
minimum for sheet or plate thicknesses shown
0.20 - 0.50mm 0.50 - 1.50mm 1.50 - 3.00mm 3.00 - 6.00mm 6.00 - 12.5mm
5754 O/H111 190 - 240 80 12 14 16 18 18
5754 H14 240 - 280 190 3 3 4 4 －
5754 H16 265 - 305 220 2 3 3 3 －
5754 H28 290 230 3 3 4 － －

*Elongation limits stated do not cover the full range of thicknesses shown.

*With the increasing of cold rolling deformation, the tensile strength and yield strength of alloy plates increase gradually, while the elongation decreases. And the annealing time on the me-chanical propertied of 5754 aluminum alloy is less sensitive than the annealing temperature.

Generic Physical Properties

Alloy Density
(kg/m3)		 Elastic Modulus
(GPa)		 Melting Point
(°C)		 Thermal Conductivity
(W/m.K)		 Thermal Expansion
(K)		 Electrical Resistivity
(nΩ .m)
5754 2660 68 600 147 24 x10-6 0.049 x10-6

Application Examples

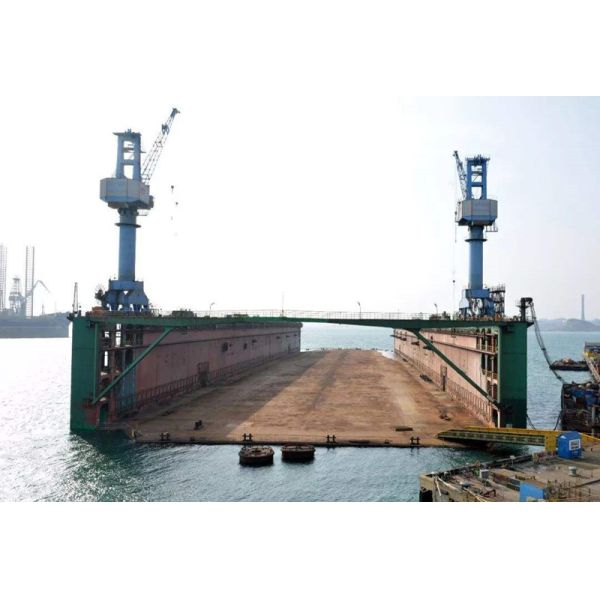

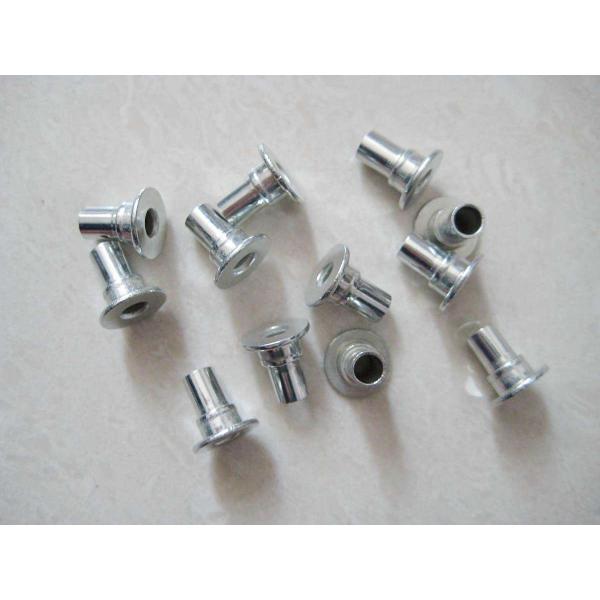

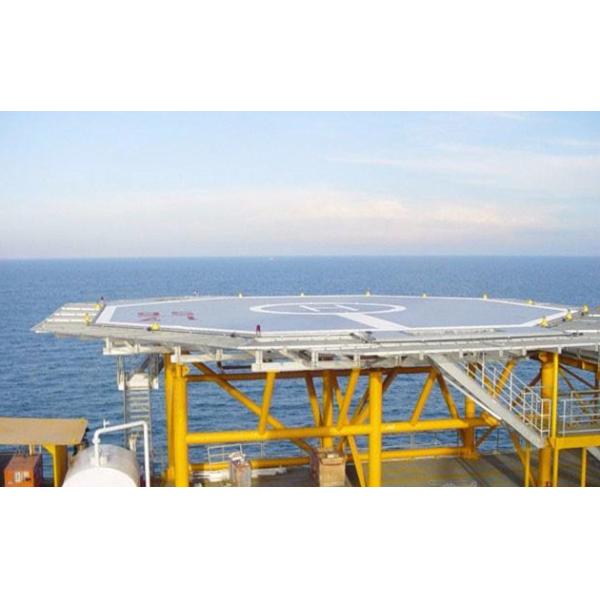

Floating dock Offshore Helicopter Platform Rivets

BV Certificate 5754 Aluminum Sheet Marine Applications Good Corrosion Resistance BV Certificate 5754 Aluminum Sheet Marine Applications Good Corrosion Resistance BV Certificate 5754 Aluminum Sheet Marine Applications Good Corrosion Resistance

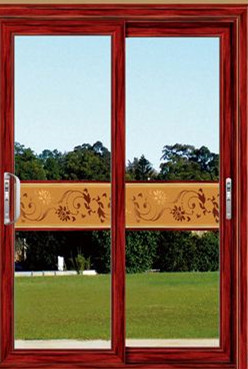

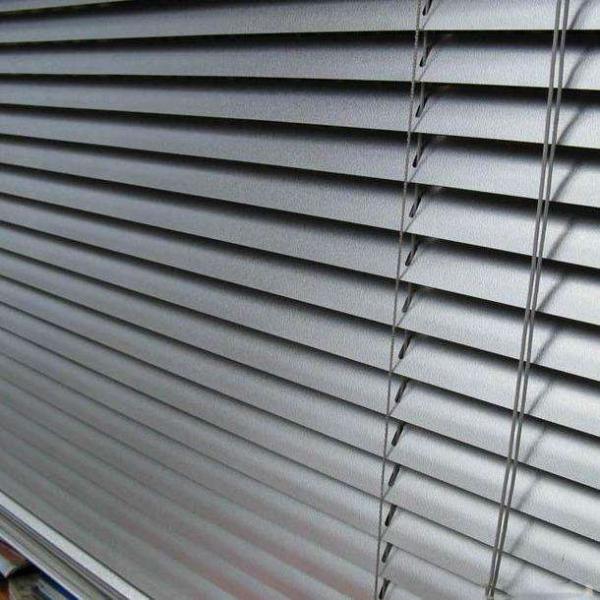

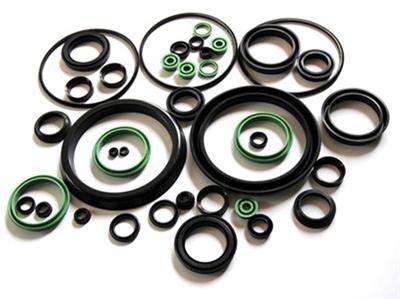

Window-blinds Door and Window frame Car seal components

BV Certificate 5754 Aluminum Sheet Marine Applications Good Corrosion Resistance BV Certificate 5754 Aluminum Sheet Marine Applications Good Corrosion Resistance BV Certificate 5754 Aluminum Sheet Marine Applications Good Corrosion Resistance
