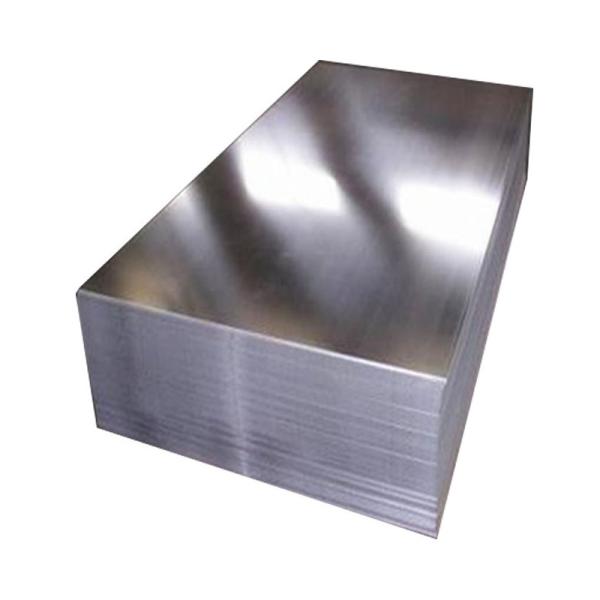

H32 H34 5052 Aluminum Sheet Medium To High Fatigue Strength 0.2mm- 12mm Thickness
H32 H34 5052 Aluminum Sheet Medium To High Fatigue Strength 0.2mm- 12mm Thickness
H32 H34 5052 Aluminum Sheet Medium To High Fatigue Strength 0.2mm- 12mm Thickness
H32 H34 5052 Aluminum Sheet Medium To High Fatigue Strength 0.2mm- 12mm Thickness
Specifications
Brand Name :
SR or OEM
Certification :
SGS, BV
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 tons per month
Delivery Time :
5 - 45 days
Packaging Details :
Ocean Safe Package, Wooden Pallets/ Cases
Name :
5052 aluminum sheet
Alloy :
Aluminum - Magnesium Alloy
Availibility :
Sheet/ coil /plate
Application :
Marine, cabinets, food equipment
Thickness :
0.2mm- 12mm
Width :
2600mm- 4300mm
Description

H32 H34 5052 Aluminum Sheet Medium to High Fatigue Strength Used in Seawater

Description of aluminum alloy 5052:

Alloy 5052 is a non-heat-treatable 2.5% magnesium alloy. Like other 5000-series high magnesium alloys 5052 has a high strength and is hardenable to a significant degree by cold working, enabling a series of “H” tempers, commonly H32 (1/4 Hard) and H34 (1/2 Hard) – as well as the soft annealed Temper O condition.

Features:

  • Good weldability
  • Medium to high fatigue strength
  • Medium to high strength
  • Very good corrosion resistance to seawater

Composition Specification (%):

Alloy Mg Cr Fe Si Zn Mg Cu Ti Others
Each Total
5052 2.2 - 2.8 0.15-0.35 0.4 0.25 0.10 0.1 0.1 － 0.05 0.15

Physical Properties:

Alloy Density
(kg/m3)		 Elastic
Modulus
(GPa)		 Mean Coefficient
of Thermal
Expansion
20-100°C
( m/m/°C)		 Thermal
Conductivity
at 25°C
(W/m.K)		 Electrical Conductivity
MS/m at 20°C
Equal Volume Equal Mass
5052 2680 70 23.8 138 20 67

Mechanical Property Specification:

Alloy & Temper Tensile Strength
(MPa)		 Yield Strength
0.2% Proof
(MPa)min		 Elongation (% in 50mm)
minimum for sheet or plate thicknesses shown
0.20 - 0.50mm 0.50 - 1.50mm 1.50 - 3.00mm 3.00 - 6.00mm 6.00 - 12.5mm
5052 O 170 - 215 65 12 14 16 18 19
5052 H32 215 - 260 130 5 6 7 10 －
5052 H34 235 - 280 150 4 5 6 7 －
5052 H36 255 - 300 180 3 4 5 6 －
5052 H38 270 min 210 3 3 4 － －

Application:

• Road & name signs

• Pressure vessels

• Treadplate

• Marine components

• Containers

• Chemical equipment

• Architectural facide
