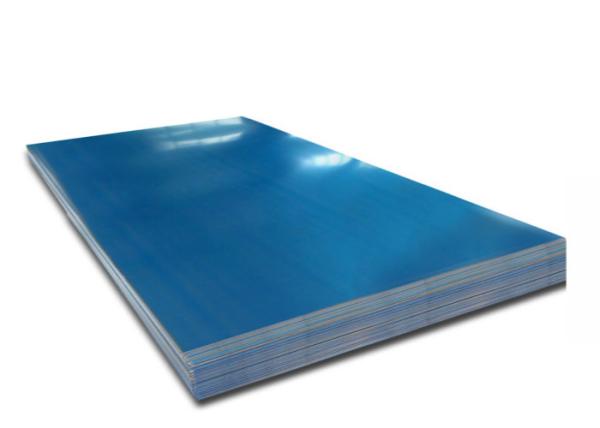

ASTM B209 5000 Series Aluminum Sheet Medium / High Strength Magnesium Alloy Sheet
ASTM B209 5000 Series Aluminum Sheet Medium / High Strength Magnesium Alloy Sheet
Specifications
Brand Name :
SR or OEM
Model Number :
Al sheet 5000
Certification :
SGS, BV
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 tons per month
Delivery Time :
5 - 40 days
Packaging Details :
Ocean Safe Package, Wooden Pallets/ Cases
Name :
Aluminum sheet 5052
Material :
Aluminium-magnesium alloy
Application :
Marine, cabinets, trailor, tooling box, food processing equipments
Temper :
O, H32, H34, H36, H38
Type :
Sheet plate coil
Treatment :
flat, tread, stucco
Description

ASTM B209 5052 aluminum sheet medium to high strength magnesium alloy sheet


Description of 5052 aluminum sheet:

5052 aluminium is a higher strength non-heat treatable alloy with 2.5% magnesium, 0.25% chromium alloy, commonly available in flat rolled coil, sheet and plate from a wide range of producing mills. When annealed it is stronger than 1000 series & 3000 series. The alloy benefits from a medium to high fatigue strength making it an excellent choice for use in structures which are exposed to excessive vibrations. 5052 also offers very good resistance to corrosion, especially in marine application. With good weldability and formability characteristics, the alloy can be used in a wide range of applications. Alloy 5052 is also produced as a treadplate with mainly industrial applications.

Chemical Composition (weight %)
Mn Fe Cu Mg Si Zn Cr Al Other
min 2.2 0.25 0.15 Re
Max 0.10 0.40 0.10 2.8 0.10 0.25 Re 0.15



Mechanical Properties
Tensile Strength 170-300MPa
Elongation (% in 50mm) 3%-19%
Shear Strength 135MPa
Hardness Vickers 70HV
Proof Stress 175MPa
Physical Properities
Density 2.68 g/cm3
Melting Point 605℃
Thermal Expansion 23.7*10-6/K
Modulus of Elasticity 70 GPa
Thermal Conductivity 138 W/mK


Possible Alternative Alloys:

Alloy Why it might be chosen instead of 3003, 5005, 5083　　　　　　　
3003 Brighter appearance required, particularly when considering treadplate.
5005 Bright (decorative) anodising finish is required.
5083 Higher strength or improved corrosion resistance required, particularly for ship hull applications.



Reference standard:

ASTM B209M – 10. Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate.
ASTM B928M – 09. Standard Specification for High Magnesium Aluminum-Alloy Sheet Service and Similar Environments.
