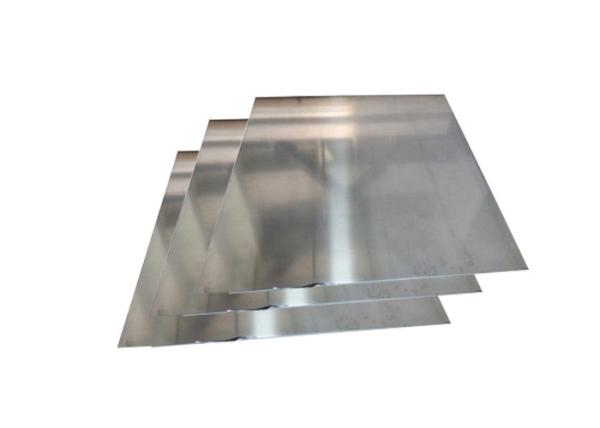

Beverage Cans 3104 H19 3000 Series Aluminum Alloy Plate Good Deep Drawing Property
Beverage Cans 3104 H19 3000 Series Aluminum Alloy Plate Good Deep Drawing Property
Beverage Cans 3104 H19 3000 Series Aluminum Alloy Plate Good Deep Drawing Property
Beverage Cans 3104 H19 3000 Series Aluminum Alloy Plate Good Deep Drawing Property
Specifications
Brand Name :
SR or OEM
Model Number :
3104 aluminum sheet
Certification :
SGS, BV
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 tons per month
Delivery Time :
5 - 30 days
Packaging Details :
Ocean Safe Package, Wooden Pallets/ Cases
Application :
Beverage cans
Alloy :
3104
Temper :
H19
Thickness :
0.28-0.35 mm
Width :
200-2600mm
Length :
500-12000mm
Description

Good Deep drawing property 3104 H19 aluminum plate for beverage cans

Description:

Alloy 3104
Temper H 19
Thickness 0.28-0.35 mm
Width 200-2600 mm
Standard YS/T 435--2000

3104-H19 aluminum is a type of 3104 aluminum. It is furnished in the H19 temper. To achieve this temper, the metal is strain hardened to a strength that exceeds H18 by at least 10 MPa (or 1.5 ksi). The graph bars on the material properties cards below compare 3104-H19 aluminum to: 3000-series alloys (top), all aluminum alloys (middle), and the entire database (bottom). The length of each bar shows the given value as a % of the largest value in the relevant set.

Beverage Cans 3104 H19 3000 Series Aluminum Alloy Plate Good Deep Drawing PropertyBeverage Cans 3104 H19 3000 Series Aluminum Alloy Plate Good Deep Drawing Property

Physical Properties Metric English
Density 2.72 g/cc 0.0983 lb/in³
Mechanical Properties Metric English
Hardness, Brinell 78 78
Hardness, Knoop 101 101
Hardness, Vickers 88 88
Tensile Strength, Ultimate 290 MPa 42100 psi
Tensile Strength, Yield 260 MPa 37700 psi
Elongation at Break 4.00% 4.00%
Modulus of Elasticity 69.0 GPa 10000 ksi
Poissons Ratio 0.34 0.34
Shear Modulus 26.0 GPa 3770 ksi
Shear Strength 175 MPa 25400 psi
Electrical Properties Metric English
Electrical Resistivity 0.00000400 ohm-cm 0.00000400 ohm-cm
Thermal Properties Metric English
CTE, linear 23.8 µm/m-°C 13.2 µin/in-°F
25.4 µm/m-°C 14.1 µin/in-°F
Specific Heat Capacity 0.880 J/g-°C 0.210 BTU/lb-°F
Thermal Conductivity 170 W/m-K 1180 BTU-in/hr-ft²-°F
Melting Point 630 - 655 °C 1170 - 1210 °F
Solidus 630 °C 1170 °F
Liquidus 655 °C 1210 °F
Component Elements Properties Metric English
Aluminum, Al 95 - 98.4 % 95 - 98.4 %
Copper, Cu 0.05 - 0.25 % 0.05 - 0.25 %
Gallium, Ga <= 0.05 % <= 0.05 %
Iron, Fe <= 0.80 % <= 0.80 %
Magnesium, Mg 0.80 - 1.3 % 0.80 - 1.3 %
Manganese, Mn 0.80 - 1.4 % 0.80 - 1.4 %
Other, each <= 0.05 % <= 0.05 %
Other, total <= 0.15 % <= 0.15 %
Silicon, Si <= 0.60 % <= 0.60 %
Titanium, Ti <= 0.10 % <= 0.10 %
Vanadium, V <= 0.05 % <= 0.05 %
Zinc, Zn <= 0.25 % <= 0.25 %
