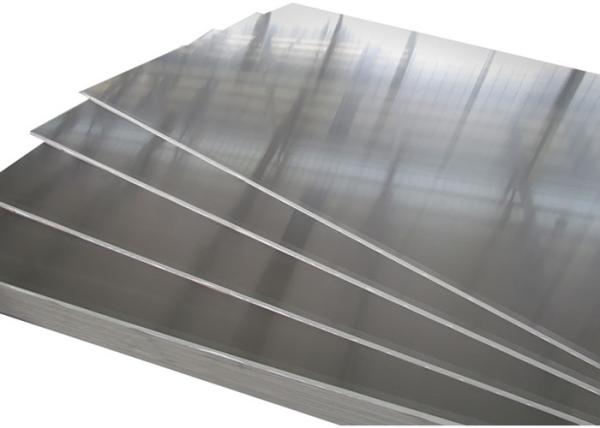

Good Weldability 3000 Series Aluminum Alloy Sheet O H14 AMS 4006 Standard
Good Weldability 3000 Series Aluminum Alloy Sheet O H14 AMS 4006 Standard
Good Weldability 3000 Series Aluminum Alloy Sheet O H14 AMS 4006 Standard
Good Weldability 3000 Series Aluminum Alloy Sheet O H14 AMS 4006 Standard
Specifications
Brand Name :
SR or OEM
Model Number :
Al 3003
Certification :
SGS, BV
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 tons per month
Delivery Time :
25 - 30 days
Packaging Details :
Ocean Safe Package, Wooden Pallets/ Cases
Item name :
Aluminum 3003 Alloy
Temper :
O/H
Length :
customized
Thickness :
0.1mm - 500mm
Width :
100mm - 2600mm
Application :
Cooking Utensils Insulation Panels and other places
Description

Aluminum 3003 wrought alloy sheet O H14 Good weldability AMS 4006 QQ-A-250/2

Description

3003 aluminium alloy is a commercially pure aluminium which boasts excellent mechanical properties and is a widely used aluminium throughout industry. It is a medium strength alloy with very good resistance to atmospheric corrosion. The alloy boasts improved mechanical properties when compared with 1000 series alloys and is 20% stronger than 1100.

Corrosion Resistance

Very good

Weldability

Weldability-Gas: Very good

Weldability-Arc: Very good

Weldability-Resistance:Good

Brazeability-Excellent

Key features

• Very good corrosion resistance
• Very good workability
• 20% stronger than 1100
• Very good weldability

Related Material Specifications

3003 - 0 Sheet
• AMS 4006 • ASTM B 209 • QQ-A-250/2


3003 H-14 Sheet
• AMS 4008 • ASTM B 209 • QQ-A-250/2

Mechanical Property Specification of 3003 H14

Proof stress : 50 Min MPa
Tensile strength: 140-180Mpa
Elongation at 50mm: 5 Min %
Brinell Hardness: 28HB

Applications

• Storage tanks
• Chemical equipment
• Cooking & kitchen equipment
• Heat exchangers

• Metal jacketing

Among the 3xxx Aluminum alloys, the amount of 3003 alloy is the largest. Aluminum 3003 alloy sheet is easy to process, it can be roolled with color paint on the surface of raw aluminum to make curtain wall panels for various decoration purposes.

Aluminum 3003 has better price than 5052 alloy, with its good weldability, some truck fuel tank material manufacturer use alloy 3003 H24 to produce pressure-free baffle instead of 5052, so they can reduce the cost without affecting use.

Good Weldability 3000 Series Aluminum Alloy Sheet O H14 AMS 4006 StandardGood Weldability 3000 Series Aluminum Alloy Sheet O H14 AMS 4006 StandardGood Weldability 3000 Series Aluminum Alloy Sheet O H14 AMS 4006 Standard

Possible Alternative Alloys

Alloy Why it might be chosen instead of 3003
5005 Bright (decorative) anodising finish is required.
5052 Higher strength required and less bright finish is acceptable.
5083 Higher strength or improved corrosion resistance required, particularly for ship hull applications.

Packaging

Good Weldability 3000 Series Aluminum Alloy Sheet O H14 AMS 4006 Standard
