HVAC Air Conditioner Anodized Aluminum Sheet Coil Stock Covered With Blue Film
HVAC Air Conditioner Anodized Aluminum Sheet Coil Stock Covered With Blue Film
Specifications
Brand Name :
SR or OEM
Model Number :
Al sheet 012
Certification :
SGS, BV
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 tons per month
Delivery Time :
5 - 30 days
Packaging Details :
Ocean Safe Package, Wooden Pallets/ Cases
Grade :
8011
Temper :
O
Item name :
Aluminium foil for air conditioner
Surface :
Covered with blue film
Thickness :
0.07mm - 15 mm
Width :
20mm - 300mm
Description

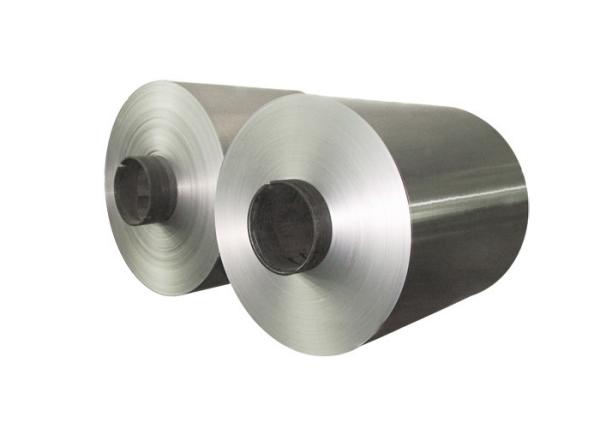

8011 aluminium coil for HVAC air conditioner with coating

Chemical composition of alloy 8011 aluminium coil

Element Content %
Al 97.3 - 98.9
Fe 0.60 - 1
Si 0.50 - 0.90
Mn ≤ 0.20
Zn ≤ 0.10
Cu ≤ 0.10
Ti ≤ 0.080
Cr ≤ 0.050
Mg ≤ 0.050
Remainder ≤ 0.050
Remainder ≤ 0.15

Properties of alloy 8011 aluminum coil

Alloy 8011 is grouped under code 8. EN-AW 8011 thus entails, in addition to the main component of aluminum, mainly the alloying elements iron and silicon. Alloy 8011 is non-toxic, hygienic, odorless, tasteless, corrosion-resistant and extremely resistant to deformation in the soft state, and widely used in many areas, one is air - to - air hear exchanger fins.

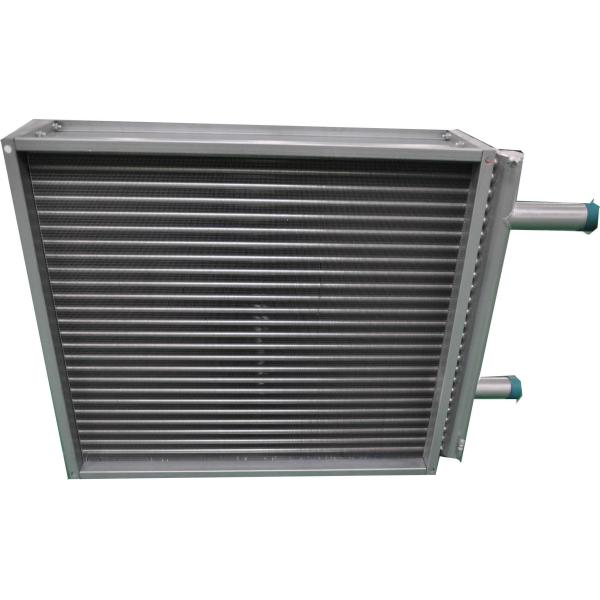

Aluminum is used for micro - channel heat exchangers, fin and tube heat exchnager, and ventilation.

Why aluminum coil in HVAC coils?

HVAC coils are made with two metals aluminum and copper for efficiently heat transfer. In most HVAC coils, tubes bear 30% of the heat transfer while fins are 70 %. Aluminum offers effective heat transfer at a lower cost than copper, so aluminum coil as HVAC fins. Copper is has better heat transfer and is easier to repair than aluminum, so tubes in HVAC coils are made of copper.

Packing term:

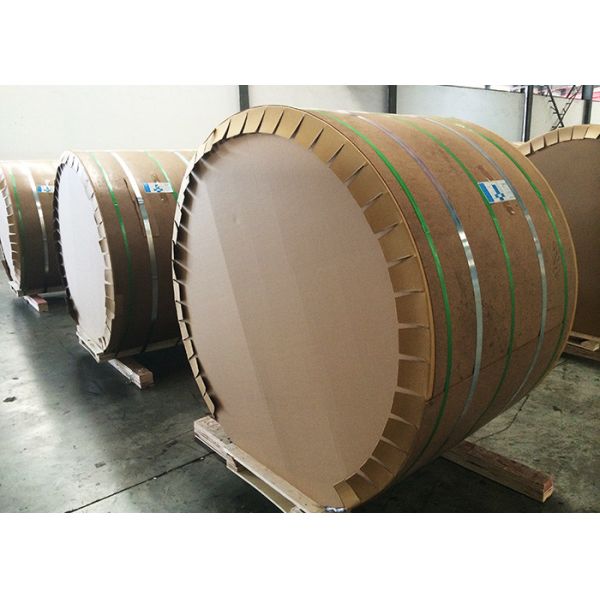

1. Standard seaworthy export packing,wooden cases for the aluminum coil.
2. 20' container and 40' container.
3. Customized requirement is accepted

Delivery time:
5-30 working days (Subject to quantities)

Transportation:
Massive production by sea, samples by air

HVAC Air Conditioner Anodized Aluminum Sheet Coil Stock Covered With Blue FilmHVAC Air Conditioner Anodized Aluminum Sheet Coil Stock Covered With Blue Film
