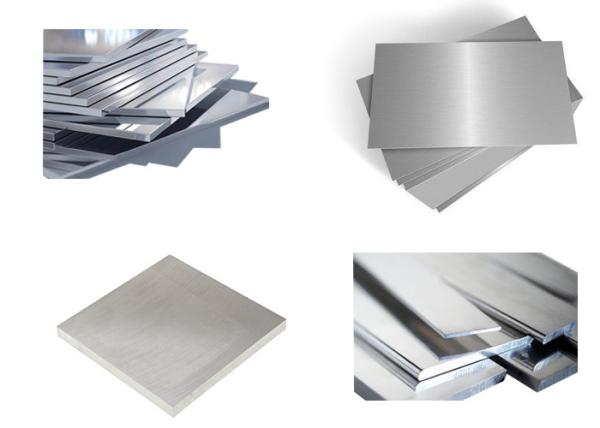

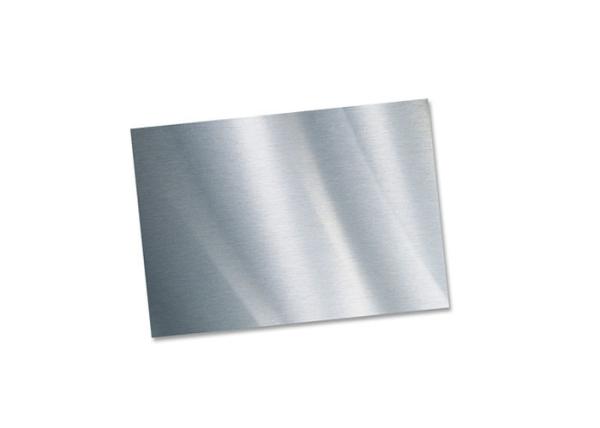

Aluminum alloy 1050 flat aluminum sheet for lighting vessel CTP plate
Description of alloy 1050 flat aluminum sheet
Alloy 1050 with a purity of 99.5% Aluminum, 0.4% of Iron(Fe) is added to it, so that it has a property of electrical conductivity. 1050 alloy also has high ductility and high reflective finish.1000 series alloy aluminum group offers the best corrosion resistance compared to any other alloy group, as well as 1050 alloy. 1050 aluminum sheet is non-heat treatment and It has excellent cold workability, braze-ability and welding-ability, and it could be strengthened by cold working. Meanwhile, 1050 alloy has a quality of anodizing. All of these characteristics make 1050 aluminum sheet widely used in chemical industries and electrolytic brightening.
1. Thickness:
Aluminum sheet 0.2mm – 6.35mm
2. Width:
Aluminum sheet 200mm – 2650mm
3. Length:
Aluminum sheet ≤12000mm
4. Temper:
O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38
Chemical Composition % | ||||||||||||
Alloy No. | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | V | Ti | Zr | Al |
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.05 | 0.03 | - | Remainder |
Applications of 1050 flat aluminum sheet:
