Mill Finish Pure Aluminum Alloy / 1060 Aluminum Sheet Metal For Nameplate
Mill Finish Pure Aluminum Alloy / 1060 Aluminum Sheet Metal For Nameplate
Mill Finish Pure Aluminum Alloy / 1060 Aluminum Sheet Metal For Nameplate
Mill Finish Pure Aluminum Alloy / 1060 Aluminum Sheet Metal For Nameplate
Mill Finish Pure Aluminum Alloy / 1060 Aluminum Sheet Metal For Nameplate
Mill Finish Pure Aluminum Alloy / 1060 Aluminum Sheet Metal For Nameplate
Specifications
Brand Name :
SR or OEM
Model Number :
SR-1060-4
Certification :
ISO/SGS
Place of Origin :
CN
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 tons per month
Delivery Time :
5 - 30 days
Packaging Details :

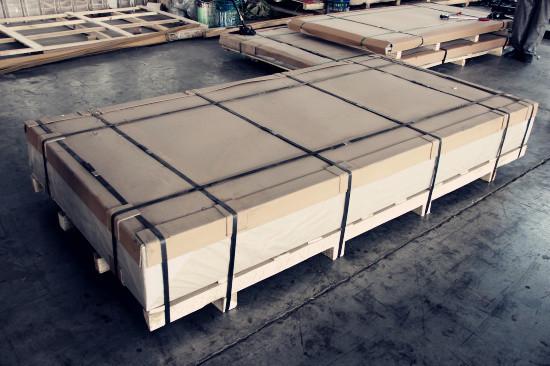

Ocean Safe Package, Wooden Pallets/ Cases for 1060 Aluminum Sheet
Alloy :
1060
Temper :
O
Thickness :
0.2-6.35mm
Width :
200-2650mm
Length :
≤12000mm
Surface :
Mill Finish
Material :
DC / CC
Product Keyword :
1060 Aluminum Sheet
Description

Pure Aluminum Alloy 1060 O / H12 /H16 / H18 / H24 Aluminum Sheet For Nameplate


Product introduction of 1060 Aluminum Sheet:

1060 aluminum is a 1000-series aluminum alloy: it is considered commercially pure, and is formulated for primary forming into wrought products. 1060 is the Aluminum Association (AA) designation for this material. In European standards, it will be given as EN AW-1060. A91060 is the UNS number. Additionally, the EN chemical designation is Al99.6.

Product Details of Aluminum Sheet:

Alloy : 1060

Temper: O, H12, H14, H16, H18, H22, H24, H26, H28 and etc.

Material: direct chill cast (DC) or Continuous cast(CC)

Thickness: 0.2mm-6.35mm

Width: 200mm-2650mm

Length: ≤12000mm

Mechanical Property Specification of 1060 Aluminum Sheet:

Elements Si Fe Cu Mn Mg Cr Zn Ti Others Al
Content 0.25 0.35 0.05 0.03 0.03 - 0.05 0.03 0.15 Remain
(max)
Alloy Specified Tensile Yield Elongation
Temper strength strength
Thickness(in.) (ksi) (ksi) (%)
1060-O 0.006-0.019 8.0-14.0 2.5 Min15
(annealed) 0.020-0.050 Min22
0.051-3.000 Min25
1060-H12/ 0.017-0.050 11.0-16.0 9 Min6
1060-H22 0.051-2.000 Min12
1060-H14/ 0.006-0.019 12.0-17.0 10 Min1
1060-H24 0.020-0.050 Min5
0.051-1.000 Min10
1060-H16/ 0.006-0.019 14.0-19.0 11 Min1
1060-H26 0.020-0.050 Min4
0.051-0.162 Min5
1060-H18/ 0.006-0.019 Min16.0 Min12.0 Min1
1060-H28 0.020-0.050 Min3
0.051-0.128 Min4
0.250-0.499 Min11.0 Min7.0 Min10
1060-H112 0.500-1.000 Min10.0 Min5.0 Min20
1.001-3.000 Min9.0 Min4.0 Min25

Principal Design Features This is a relatively low strength, essentially pure aluminum, alloy. It is noted for excellent welding characteristics and formability along with good corrosion resistance. It cannot be hardened by heat treatment.
Applications

Commonly used in the manufacture of chemical equipment and railroad tank cars.
Machinability The machinability of AL 1060 is fair to poor, especially in the soft temper conditions. In the harder (cold worked) tempers such as H16 and H18 the machining characteristics are improved. Either carbide or high-speed steel tooling may be used and use of lubricants is recommended, although some cutting may be done dry.
Forming This alloy has excellent forming capability by cold or hot working with commercial techniques.
Welding AL 1060 may be welded by standard commercial methods. If filler rod is required it should be of AL 1060. A precaution should be noted for the use of resistance welding as by this method some trial and error experimentation may be required to obtain good results.

Applications of 1060 Aluminum Sheet:

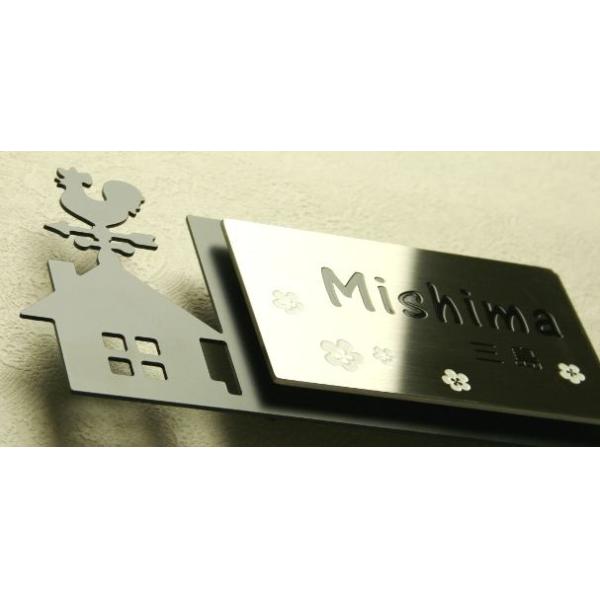

Clock surface and nameplate and eetc.

Mill Finish Pure Aluminum Alloy / 1060 Aluminum Sheet Metal For NameplateMill Finish Pure Aluminum Alloy / 1060 Aluminum Sheet Metal For Nameplate

Mill Finish Pure Aluminum Alloy / 1060 Aluminum Sheet Metal For Nameplate

Mill Finish Pure Aluminum Alloy / 1060 Aluminum Sheet Metal For Nameplate
