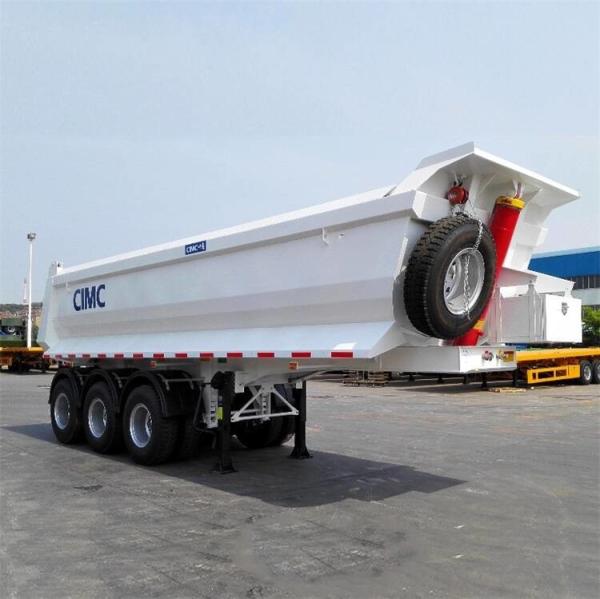

Hydraulic Lift CIMC U Type 50T Tipper Semi Trailer
Hydraulic Lift CIMC U Type 50T Tipper Semi Trailer
Specifications
Brand Name :
CIMC
Model Number :
U Type Tipper Semi Trailer
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-14500/Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 Unit/Units per Month
Delivery Time :
25-30 Works
Packaging Details :
Container,Bulk cargo or RORO shipping
Type :
Semi-Trailer
Use :
Truck Trailer
Oem no. :
Tipper Semi Trailer
Landing gear :
Fuwa
King pin :
2"(50mm)or3.5"(90mm) JOST
Product name :
Tipper trailer,dump trailer,Semi trailer
Axle :
3
Function :
Transport Sand and Stone Transport
Tire specification :
12pieces
Brake system :
WABCO Valve
Description

50Ton 3 Axle U Type Tipper Semi Trailer For Sale-CIMC Trailer

Product Description:

The rear tipping semi-trailer train is mainly composed of a tractor and a semi-trailer. The U Type Tipper Semi Trailer hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.

Operate the tractor tipper trailer transmission power take-off device to drive the hydraulic pump.The hydraulic pump sucks the hydraulic oil in the hydraulic oil tank through the low-pressure oil inlet pipe and generates high-pressure oil for output.
The tractor is connected by a saddle and a semi-trailer to form a semi-trailer train.

The Feature of Tipper semi trailer:

The high-pressure oil output by the gear pump enters the poppet valve through the high-pressure oil pipe.

The lift valve sends high pressure oil to the oil cylinder or discharges it into the hydraulic oil tank under the control of the air control valve, thereby achieving the functions of lifting, stopping and lowering the hydraulic oil cylinder.

Main Specification:

Overall dimension: 9000*2500*4000mm
Volume: 40-60T
Axles: 3 axles
Suspension: Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Tire 12 units
King pin 90#
Landing gear JOST
Brake system WABCO
Electrical system

24V, LED lights

Hydraulic Lift CIMC U Type 50T Tipper Semi Trailer

U Type Tipper Semi Trailer For sale

Hydraulic Lift CIMC U Type 50T Tipper Semi Trailer

Tipper semi Trailer Price
