Steel Frame Container Skel CIMC 20 40 Tril Axle Chassis
Steel Frame Container Skel CIMC 20 40 Tril Axle Chassis
Specifications
Brand Name :
CIMC
Model Number :
Skel trailer
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD 6000-11000/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 Unit/Units per Month
Delivery Time :
25-30 work days
Packaging Details :
Container,Bulk cargo or RORO shipping
Type :
Skel trailer
Max payload :
60 Tons
Size :
12500*2500 *1530mm
Function :
Transport 20/40ft container and Heavy Duty Equipment
Suspension :
Mechanical / Air / Bogie
Material :
Carbon steeel
King pin :
2"(50mm)or3.5"(90mm) JOST
Name :
container skeletal trailer
Use :
Truck Trailer, contain transport
Landing gear :
JOST
Axle :
FUWA
Color :
Customers Optional
Condition :
New Made / Customize by needs
Description

45 Feet Container Chassis Skel Trailer for Sale Near Me-CIMC

Product Description

CIMC skel trailer can be equipped with a double tow pin structure, which can be used to transport 45-foot standard containers and front probe boxes. An optional lock beam can be installed in the middle to stabilize the container; this truck has the characteristics of low bearing surface, light weight, high reliability and strong applicability.


Container chassis lock frame structure and the corresponding parts of the front lock beam are strengthened to effectively prevent the front anti-skid lock frame and the front lock beam from tearing. Robustness and safety are further guaranteed.

How to Choose the Right container chassis Trailer

Your choice first depends on your preference for the type of work you need to accomplish. Usually, the selection is based on the following conditions:

Application
If you use a container chassis trailer to transport not only containers but also some other goods, it is best to choose the type of flatbed trailer. Choose according to your needs, you can let professionals provide you with buying advice.

Axle
All these skel trailers can carry considerable weight. The greater the number of axles, the greater the carrying capacity.

Price
Cost is also an important factor to consider when choosing a trailer. Ordinary trailers have many uses and reasonable prices.

Specification of skel trailer

Type Skel trailer
Overall dimensios 12500*2500 *1530mm
Loading weight 60 ton
Container twist lock 8/12 pcs
Main beam Q345B steel
Side beam 16 U shaped steel or I shaped steel
Axle brand FUWA/BPW/CIMC brand
Traction pin 2” or 3.5”
Landing gear JOST brand optional
Suspension system Mechanical suspension, air suspension is optional
Tire 12.00R22.5 Triangle brand tires, others tires optional
Brake 6 big chamber brake system
Tool box 1 unit
Side marker lamp LED type
Voltage 24V

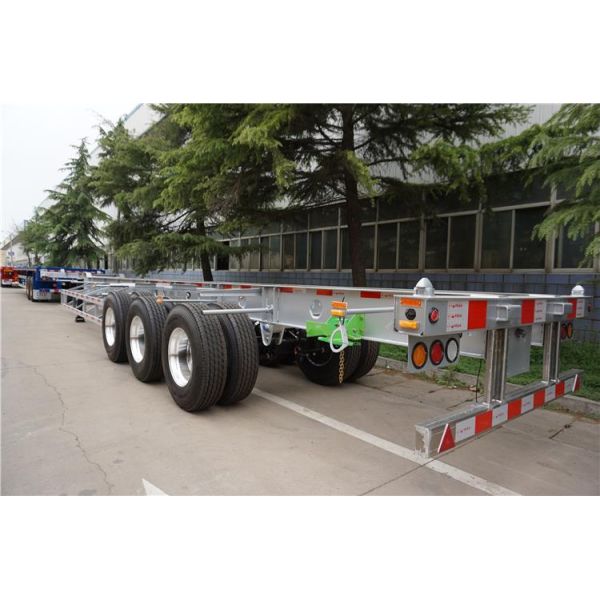

Steel Frame Container Skel CIMC 20 40 Tril Axle Chassis

CIMC 3 axle container chassis trailer

Steel Frame Container Skel CIMC 20 40 Tril Axle Chassis

CIMC container chassis for sale near me

Steel Frame Container Skel CIMC 20 40 Tril Axle Chassis

CIMC 45ft contaienr skel trailer
