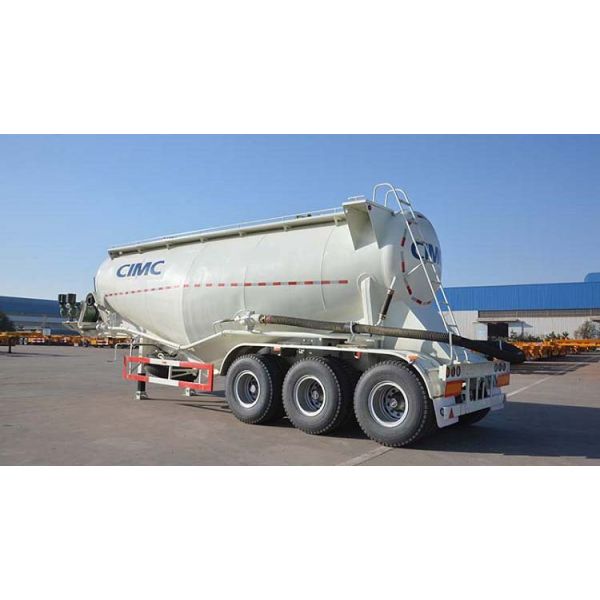

Steel Pneumatic 3 Axle 40 Tonne Bulk Powder Tankers
Steel Pneumatic 3 Axle 40 Tonne Bulk Powder Tankers
Specifications
Brand Name :
CIMC
Model Number :
Pneumatic sand trailer
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD 14000-18000/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 Unit/Units per Month
Delivery Time :
25-30 work days
Packaging Details :
Container,Bulk cargo or RORO shipping
Type :
Pneumatic sand trailer
Size :
10000*2500*4000mm
Volume :
45Cubic metre
Diesel engine :
Weichai Model 4102
Max payload :
40T
Suspension :
Mechanical / Air Suspension
Product name :
Bulk Cement Tank Semi Trailer
King pin :
2"(50mm)or3.5"(90mm) JOST
Function :
Bulk cement transporting semi trailer
Material :
Steel/Aluminum Alloy
Landing gear :
JOST optional
Axle :
2/3/4axle
Description

3 Axle 40 Tonne Pneumatic Sand Bulk Cement Tanker Trailer-CIMC

Product description:

The main assembly of the pneumatic sand trailer is composed of a tank body, a power system (diesel engine, air compressor), a gas circuit system, and a brake system.

At present, the design of the fluidized bed in the tanks of CIMC pneumatic cement tanker is scientific and the layout is reasonable, which can effectively shorten the discharge time and reach 1.4T / min. The volume utilization rate of the tank is improved, and the residual ash rate is reduced, and the residual ash rate is 0.2%.

Advantage:

1. The frame is the main body of the pneumatic sand trailer. It welds two longitudinal beams and many beams into a frame structure and then forms a resistance welding with the tank body.

2. Pneumatic cement tanker adopts domestic famous brand oil-free swing bar type single-cylinder or double-cylinder air compressor to provide compressed air for discharging, the rated working pressure is 0.2Mpa;

3. Brake system: The pneumatic bulk tanker adopts a dual-pipe inflatable brake system.

The service braking system mainly consists of palm joints, air supply pipelines, control pipelines, emergency maintenance valves, air storage tanks, energy storage brake chambers, and wheel brakes.

Specification of pneumatic sand trailer

Dimension: 10000*2500 *4000mm
Discharging System
Diesel Engine Model 4102 Diesel
Air Compressor 12 m³ one unit double cylinders compressor
Discharging valve 4 inch butterfly valve
Discharging pipe 1pcs, 6m/each
Manholes 2 pcs
Trailer Chassis
Main Beam Welded design,
Axles 3 axles
Landing gear JOST
Kin pin 3.5 inch high tensile bolt-in king pin
Suspension Mechanical suspension with 10 layers leaf spring
Tire 12.00R22.5 ,
Braking system WABCO emergency valve;
Electrical system Voltage: 24V
Tool box & tire carrier One tool box , 2 pieces tire carrier
Light & reflector Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light

Steel Pneumatic 3 Axle 40 Tonne Bulk Powder Tankers

CIMC 3 axle bulk cement tanker trailer

Steel Pneumatic 3 Axle 40 Tonne Bulk Powder Tankers

CIMC pneumatic sand trailer for sale
