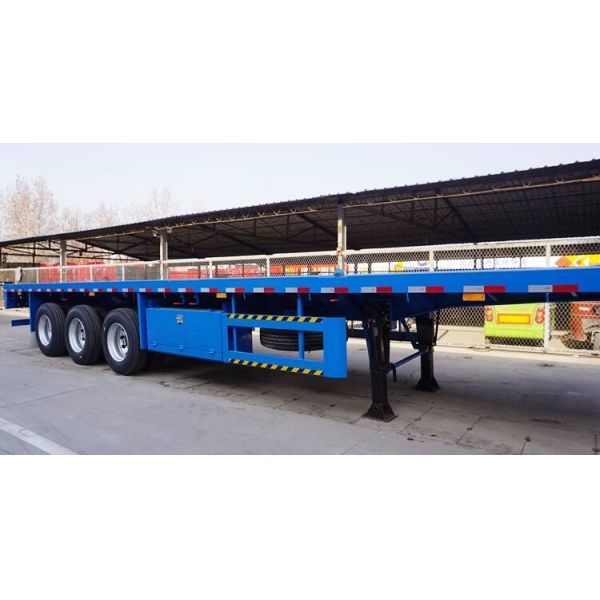

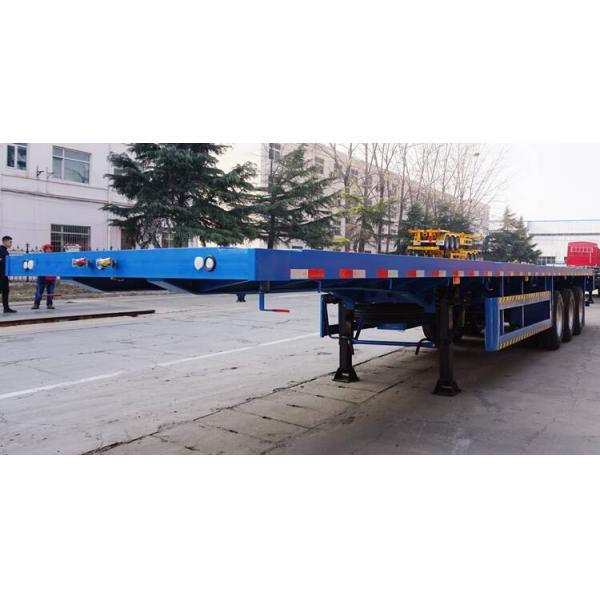

Mechanical Suspension Tri Axle 45Ft Flatbed Trailer
Mechanical Suspension Tri Axle 45Ft Flatbed Trailer
Specifications
Brand Name :
CIMC
Model Number :
Container Chassis trailer
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 Unit/Units per Month
Delivery Time :
25-30 work days
Packaging Details :
Container,Bulk cargo or RORO shipping
Type :
Flatbed Trailer
Size :
13000X2500X1500
Use :
Truck Trailer
Max payload :
60T
Oem no. :
Flatbed Trailer
Suspension :
Mechanical Suspension / air suspension / single point suspension
King pin :
2"(50mm)or3.5"(90mm) JOST flatbed semi trailer
Landing gear :
JOST / FUWA etc.
Color :
according to customer's requirement.
Product name :
50tons 40ft Flat Bed Container Semi-trailer,3 axle flatbed semi trailer
Function :
Transport 20/40ft container and Heavy Duty Equipment
Brake system :
Dual Line Braking System with ABS
Keywords :
Flatbed Container trailer
Loading capacity :
25T~80T according to your requestment
Description

CIMC 45Ft Flatbed Trailer for Sale In Ghana

Product Description:

The function of a flatbed trailer is made possible through its structure’s design and manufacture. Basically, it is transport equipment mainly of a steel construction defining its frame. It also comprises a lighting system, brakes and tires.

It is carefully designed to desired heights and weight capacity to safely load and transport cargoes from one location to another. Use platform trailers to transfer cargo at the shipper’s warehouse. Unloaded to the consignee’s warehouse, when changing container trailer or boat on the way, there is no need to take the goods out of the box and change them.

Adavantage:

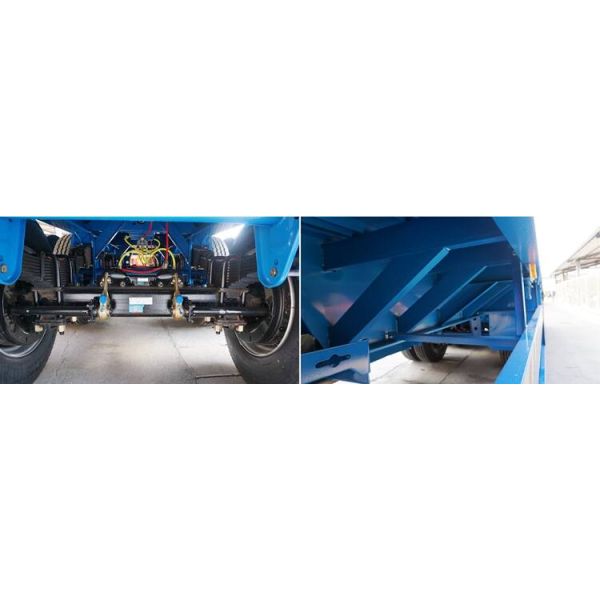

1. The shipping container trailer is welded by the longitudinal beam, the beam and the front and rear beams. The longitudinal beam is made of high quality steel plate 16Mn submerged arc welded into an I-shape (main size is 450, 500). The beam is punched into a trough type with high quality steel plate, front and rear ends. The beam is a welded rectangular section. An integral long beam is arranged at the intermediate container locking device to improve the carrying capacity of the container locking device
2. The common container trailer chassis is easy to use and affordable. However, you will need auxiliary equipment such as the overhead cranes for loading and unloading the containers from the chassis.
3. Most important to note about container chassis trailers is the fact that they come in different types and that includes both robust and lightweight options. This is because of the reason that there those that are used in heavyweight applications and the others are used in lightweight operations.

Specification of Container chassis trailer

Type Container semi trailer
Overall dimensions 13000*2500* 1550mm
Loading weight 60 ton
Container twist lock 8/12 pcs
Main beam Q345B steel
Side beam 16 U shaped steel or I shaped steel
Axle brand FUWA/BPW/CIMC brand
Traction pin 2” or 3.5”
Landing gear JOST brand optional
Suspension system Mechanical suspension, air suspension is optional
Tire 12.00R22.5 Triangle brand tires, others tires optional
Brake 6 big chamber brake system
Tool box 1 unit
Side marker lamp LED type
Voltage

24V

Mechanical Suspension Tri Axle 45Ft Flatbed Trailer

CIMC 45ft shipping container trailer

Mechanical Suspension Tri Axle 45Ft Flatbed Trailer

CIMC 3 axle container skeleton trailer

Mechanical Suspension Tri Axle 45Ft Flatbed Trailer

CIMC 60t Flatbed Semi Trailer for Sale
