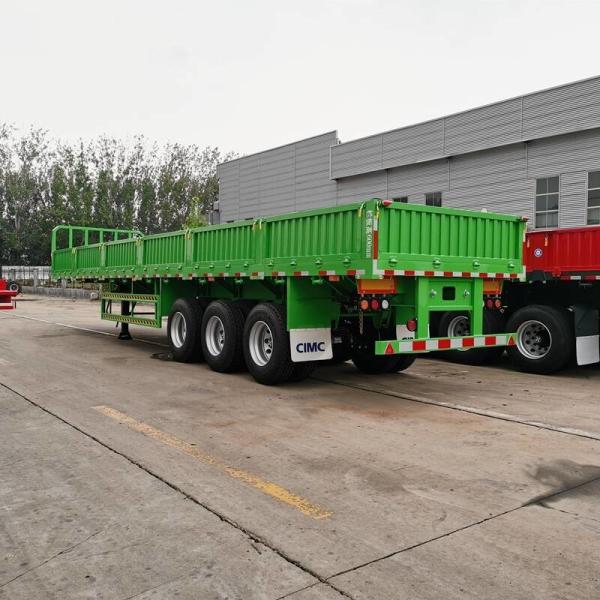

Dry Cargo 12 Wheel Tri Axle 80T Drop Side Wall Trailer
Dry Cargo 12 Wheel Tri Axle 80T Drop Side Wall Trailer
Specifications
Brand Name :
CIMC
Model Number :
cargo semi trailer
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 Unit/Units per Month
Delivery Time :
25-30 Works
Packaging Details :
Container,Bulk cargo or RORO shipping
Size :
12500*2500*1550mm
Use :
Truck Trailer
Type :
Semi-Trailer,Semi Trailer
Oem no. :
side wall semi trailer
Suspension :
Mechanical / air / single point suspension
King pin :
JOST 2.0 inch (50mm)/3.5 inch (90mm)
Landing gear :
Heavy Duty Landing Gear
Product name :
3 Axle 12 Wheel WABCO Brake System Side Wall Semi Trailer
Function :
40 Tons Curtain Side Wall Semi Truck Fence Cargo Trailer for Sale,cargo transporting side wall semi trailer
Loading capacity :
30T~80T according to your requestment
Braking system :
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks,WABCO RE6 Replay Valve
Condition :
New
Description

CIMC Tri Axle 80T Drop Side Wall Trailer For Sale In Senegal

Product Description:

The 3 axle dry cargo trailer is mainly used for transporting steel, timber, stone, and other cargo goods. The advantage of the sidewall trailer is that it can carry goods like super long, super wide and super high.it have wide applicability.

The CIMC 3 Axle 50T Cargo Trailer With Sidewall is widely used to transport containers, pipe, steel, lumber, heavy equipment, and any other item that would be difficult to load into the back of a trailer.

The sidewall trailer of suspension system is a three-axis leaf spring suspension, which is used to support the load and has the function of absorbing driving vibration and so on.

Details of bulk cargo semi trailer:

1.Electrical system: The drop side semi trailer is equipped with an international electrical system that is compatible with the tractor. There are electrical connector sockets on the front beam of the frame.
2.Suspension system: Suspension device support is welded on the back and the lower part of the longitudinal beam and support device support is provided on the lower front part.
3.Axles and wheels: Three axle assemblies of the same structure are installed under the suspension system.
4.Support leg: In order to make the semi-trailer reliably parked after leaving the truck head, the front end of the frame is equipped with two support legs that are linked left and right or left and right.

Specification of Cargo Semi Trailer:

L*W: 12500mm*2500mm
Sidewall Height: 600mm
Max. Payload: <50T
Application: Coal/Cargo/Containers Loading
Material: Q345B Steel
Bottom Platform: 3mm-thick checkered plate
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Support leg: JOST brand
Suspension: Airbag / Mechanical / Bogie suspension
Axles: FUWA/BPW/CIMC/other
Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
Brake System: WABCO
Electrical System: 24-volt lighting system

Dry Cargo 12 Wheel Tri Axle 80T Drop Side Wall Trailer

60T Side wall semi trailer

Dry Cargo 12 Wheel Tri Axle 80T Drop Side Wall Trailer

Tri Axle Cargo Semi Trailer

Dry Cargo 12 Wheel Tri Axle 80T Drop Side Wall Trailer

CIMC Tri Axle 80T Drop Side Wall Trailer For Sale In Senegal
