CE Livestock 60T Fence 600mm Sidewall Semi Trailer
CE Livestock 60T Fence 600mm Sidewall Semi Trailer
Specifications
Brand Name :
CIMC
Model Number :
Livestock trailer
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 Unit/Units per Month
Delivery Time :
25-30 work days
Packaging Details :
Container,Bulk cargo or RORO shipping
Size :
12500*2500*1550mm
Use :
Truck Trailer
Type :
Semi-Trailer,Semi Trailer
Max payload :
60T
Suspension :
Mechanical / air / single point suspension
King pin :
JOST 2.0 inch (50mm)/3.5 inch (90mm)
Landing gear :
Heavy Duty Landing Gear
Product name :
3 Axle 12 Wheel WABCO Brake System Side Wall Semi Trailer
Function :
transport containers and bulk cargo
Axle :
FUWA or BPW brand
Loading capacity :
30T~80T according to your requestment
Braking system :
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Description

CIMC 60T Fence Semi Trailer For Sale In Senegal

Description:

CIMC fences trailer are another commonly used type of equipment in the transportation industry. Fence semi trailer are used to deliver products like pipe, steel, lumber, bulker cargo and other items that would be difficult to load into the back of a trailer. 3 axles fence trailer is widely used in various industries.
CIMC production the 40ft fence truck trailer are noted for their highly robust structure steel, we can provide different configurations of our flatbed semi trailer to meet your transportation requirement.

Factory of livestock trailer:

CIMC fences trailer adopt advanced design concep, automatic arc-submerging welding method to weld the main beam, it can ensure the intergrated main beam, so the main beam is more stronger and more durable.

Adavantage:

1.The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of a livestock trailer is 14/8/16 mm.
2.The steel plate in the middle of the beam uses Q345B manganese steel, the thickness is 8mm. The international standard thickness of the middle part of the beam must be 8mm.
3. Bottom Floor, many fence semi Trailers are also used to transport bulk cargo and other items. The bottom plate of the fence drop side trailer passes the international standard 3mm thick checkered plate.
4. Side door. The fence trailer common height of side door is 600mm, 800mm, 1000mm. The side door adopts vertical corrugated structure.

Specification of fences trailer

Remark

This Specification just for your reference, we can produce fence semi trailer as your demands.
Dimensions

11900x2500 x1600mm
Side wall

600mm, 800mm, 10000mm
Loading Capacity

60 Ton
Tire

12R22.5, 12units
Rim

9.00-22.5, 12units
Axles

4X13T BPW or FUWA brand
King Pin

3.5 inch JOST Brand
Brake System

WABCO Valve and relays/ABS
Landing Gears

JOST Landing gear
Susension

Mechanical spring suspension
Electrical

24 V
Light

LED light ( speically intended for Africa market)
Container lock

Optional

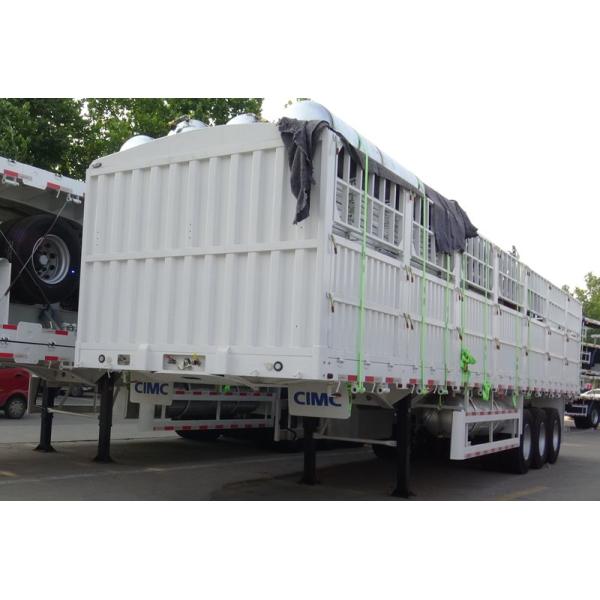

CE Livestock 60T Fence 600mm Sidewall Semi Trailer

CIMC livestock trailer for sale

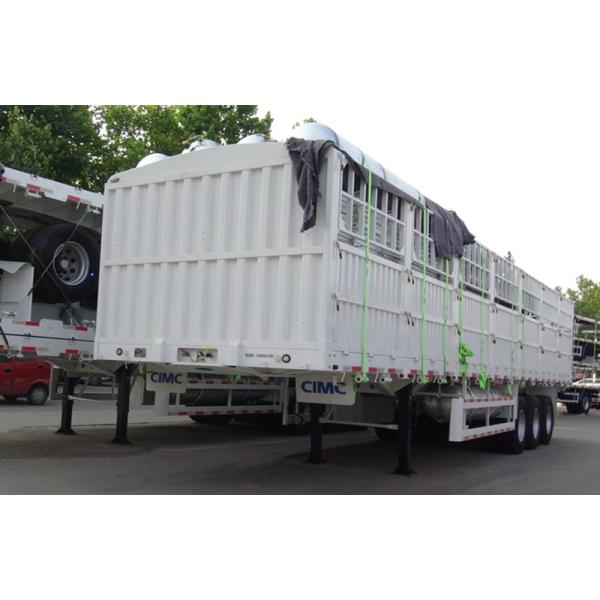

CE Livestock 60T Fence 600mm Sidewall Semi Trailer

CIMC 3 axle 60t fences trailer
