Air Suspension Aluminum 40cbm Bulk Cement Tanker Trailer
Air Suspension Aluminum 40cbm Bulk Cement Tanker Trailer
Specifications
Brand Name :
CIMC
Model Number :
Aluminium Alloy Cement Bulker
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 Unit/Units per Month
Delivery Time :
25-30 work days
Packaging Details :
Container,Bulk cargo or RORO shipping
Type :
Aluminium Alloy Cement Bulker
Max payload :
40cbm
Size :
10000*2500 *4000mm
King pin :
2"(50mm)or3.5"(90mm) JOST
Suspension :
Mechanical / Air Suspension
Volume :
40Cubic metre
Diesel engine :
Weichai Model 4102
Function :
Bulk cement transporting semi trailer
Material :
Steel/Aluminum Alloy
Product name :
Bulk Cement Tank Semi Trailer
Landing gear :
JOST optional
Axle :
2/3/4axle
Description

50/60 Tonne Aluminium Alloy Cement Bulker Trailer-CIMC Trailers

Product description:

CIMC Aluminium Alloy cement bulker trailer frame adopts a hump design, which has a stronger carrying capacity and a higher safety factor. The tank section is treated with technology, the fluidization angle is effectively fine-tuned, the in and out airflow is more smooth and coordinated, and the discharge performance is better.

The whole vehicle is equipped with an intelligent control system, high-performance ABS brake, wheel preheating alarm, and reversing image function.The bulk cement tanker trailer tank body and internal structure will be used for a long time without corrosion and thickness reduction. The tank body thickness is more than twice the thickness of carbon steel. The safety factor is higher, and the TIG welding process has better compression resistance.

Specification of bulk cement trailer

Dimension: 10000*2500 *4000mm
Tank Body
Tank thickness 4 mm
Front & end plate 4 mm
Tank rated pressure 0.2Mpa
Discharging System
Diesel Engine Model 4102 Diesel
Air Compressor 12 m³ one unit double cylinders compressor
Discharging valve 4 inch butterfly valve
Discharging pipe 1pcs, 6m/each
Manholes 2 pcs
Trailer Chassis
Main Beam Welded design,
Axles 3 axles
Landing gear 28T
Kin pin 3.5 inch high tensile bolt-in king pin
Suspension Mechanical suspension with 10 layers leaf spring
Tire 12.00R22.5 ,
Braking system WABCO emergency valve;
Electrical system Voltage: 24V
Tool box & tire carrier One tool box , 2 pieces tire carrier
Light & reflector Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light

Feature of dry bulk tanker

The dry bulk tanker frame adopts an L-beam design, 6061-T6 high-performance extruded profile, and its strength is twice that of a carbon steel frame. The top is equipped with aluminum alloy six-claw quick-opening manhole cover, with safety buckle, wear-resistant block, more efficient. Equipped with two independent toolboxes and rear hidden toolboxes to meet different needs of customers.

The whole cement bulker trailer and most of its parts are made of aluminum alloy, which has a smooth and beautiful appearance, ensuring strength and greatly reducing its own weight.

CIMC bulk powder tankers has always been committed to providing high-quality tank products and services for modern logistics and transportation.

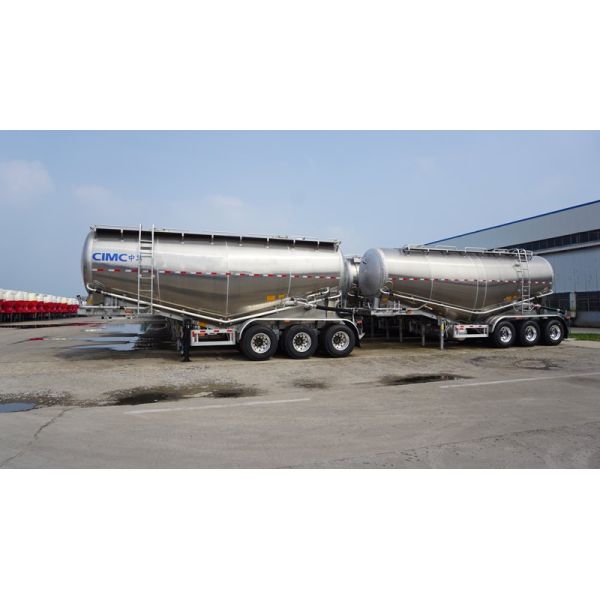

Air Suspension Aluminum 40cbm Bulk Cement Tanker Trailer

CIMC bulk cement tanker trailer

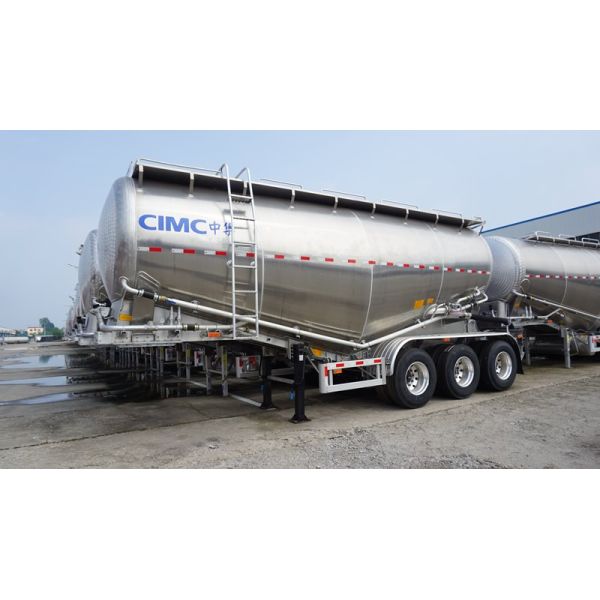

Air Suspension Aluminum 40cbm Bulk Cement Tanker Trailer

CIMC 40cbm bulk cement tanker manufacturers
