Big Mouth 6860D Single Needle Compound Feed Sewing Machine
Big Mouth 6860D Single Needle Compound Feed Sewing Machine
Big Mouth 6860D Single Needle Compound Feed Sewing Machine
Big Mouth 6860D Single Needle Compound Feed Sewing Machine
Big Mouth 6860D Single Needle Compound Feed Sewing Machine
Big Mouth 6860D Single Needle Compound Feed Sewing Machine
Big Mouth 6860D Single Needle Compound Feed Sewing Machine
Big Mouth 6860D Single Needle Compound Feed Sewing Machine
Specifications
Brand Name :
Jianglong
Model Number :
JL-6860D
Place of Origin :
Dongguan,China
MOQ :
1 set
Price :
USD 794.12 - 853 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000 Set per month
Delivery Time :
5-8 Work days
Packaging Details :
The inner packaging is a foam box, and the outer packaging is a carton
product name :
Cylinder bed sewing machine
Max. Sewing Speed :
2200(r.p.m)
Max.Stitch Length :
0-10.5 mm
Diameter of Cylinder Bed :
70mm
Needle size :
DP*17(21#)
Hook :
Vertical standard hook（26.4mm Core）
Lubrication :
Automatic lubrication
Working Space :
250*110mm
Description

6860D Lock Stitch Single Needle Compound Feed Sewing Machine for Thick Material

Product introduce

High-quality computer direct-drive big-mouth high-speed sewing machine heavy leather handbags and luggage industrial sewing machine, using Powermax electric control system, patented design, direct-drive integrated machine.

Product advantage

Optional electric presser foot lifting or pneumatic presser foot lifting, pneumatic reverse sewing device, efficient and labor-saving.
With automatic winding core, fixed needle function, automatic oil supply, high-quality configuration, precise selection of parts and accessories, durable.

Parameter of machine

Model JL-6860D
Number of Needle Single Needle
Max. Sewing Speed 2200(r.p.m)
Max.Stitch Length 0-10.5mm
Diameter of Cylinder Bed 70mm
Presser foot lift 8 mm (by hand) 13 mm(by knee)
Needle size DP*17(21#)
Hook Vertical/Standard hook (26.4mm core)
Lubrication Automatic lubrication
Working Space 250*110mm
motor Servo Direct Drive Motor
Mechanical Configuration Cylinder-bed
Feed Mechanism Compound Feed
Dimensions 65.5*31*60.2cm
Color White
N.W 50KG

Application case

suitable for sewing leather goods, handbags, luggage, hats, clothing, shoes, etc.

Product details

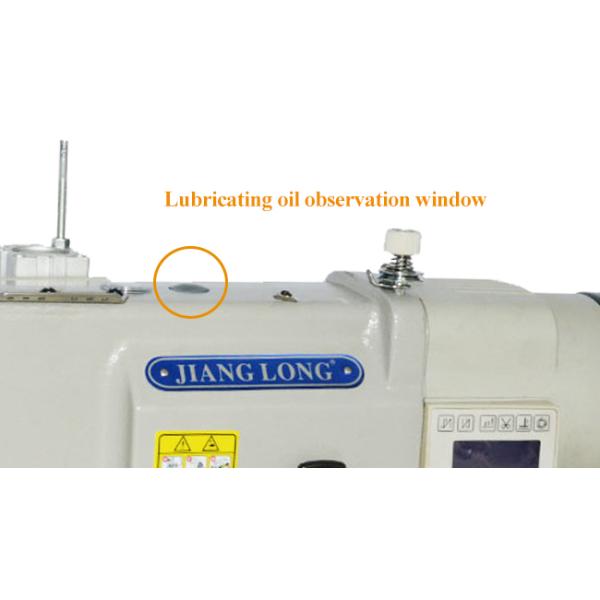

1. Oil supply observation window, this oil observation window is designed in the fuselage, and the oil supply situation can be observed through this window.

Big Mouth 6860D Single Needle Compound Feed Sewing Machine


2. Automatic circulating oil supply device, an improved version based on traditional manual oiling, equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of all parts, greatly increase the service life of the machine and reduce parts wear.

Big Mouth 6860D Single Needle Compound Feed Sewing Machine

FAQ

Q1. Is your company a factory or trading company?

A. We are sewing machine factory, we focus on excellence sewing machine.

Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.

Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price.

Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.

Q5. How can I get a quotation?

A. First please give us your email address and which machine are your interesting.
