Specifications
Brand Name :
Jianglong
Model Number :
JL-180
Place of Origin :
Dongguan,China
MOQ :
1 set
Price :
USD 559 - 669.12 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000 Set per month
Delivery Time :
5-8 Work days
Packaging Details :
The inner packaging is a foam box, and the outer packaging is a carton
Product name :
compound feed sewing machine
Max. Sewing Speed :
800(r.p.m)
Max.Stitch Length :
0-11mm
Diameter of Cylinder Bed :
81mm
Needle size :
DY*3
Hook :
Shuttle (KSP-204N)
Lubrication :
Manual Lubrication
Condition :
new
Description

180 Thick Thread Flat Bed Single Needle Super Heavy Duty Industrial Sewing Machine

Product introduce

This sewing machine is a thick thread lockstitch sewing machine. It is a Hercules in the heavy-weight machine series. It uses a shuttle and adopts a three-synchronous comprehensive feeding system: needle feed dog and presser foot cross lifting mechanism to ensure that it is within the rated range The sewing material can be smooth and sticky at any stitch length inside. The lifting amount of the presser foot of this machine can reach 25mm, and the alternate amount of the differential presser foot can reach 10mm to ensure that the thickness of the fabric changes during the sewing process. At the beginning of the seam or when sewing the cross seam, the presser foot can still be fed smoothly and continuously.

Parameter of machine

Model JL-180
Number of Needle Single Needle
Max. Sewing Speed 800(r.p.m)
Max.Stitch Length 0-11mm
Diameter of Cylinder Bed Lockstitch machine
Presser foot lift 13 mm (by hand) 25mm (by knee)
Needle size DY*3
Hook Shuttle(KSP-204N)
Lubrication Manual Lubrication
Working Space 420*200mm
motor Optional: 550W 4P slow clutch motor/750W servo motor
Mechanical Configuration flat - bed
Feed Mechanism Compound Feed
Dimensions 77*42*55cm
Color White
N.W 55KG

Product case

Luggage,sofa,tent,cushion,car interior, leather sewing, etc.

Product details

1. Large swing shuttle, reduce the number of bottom thread changes and improve work efficiency

Manual Lubrication 800RPM 750W Servo Motor Sewing Machine

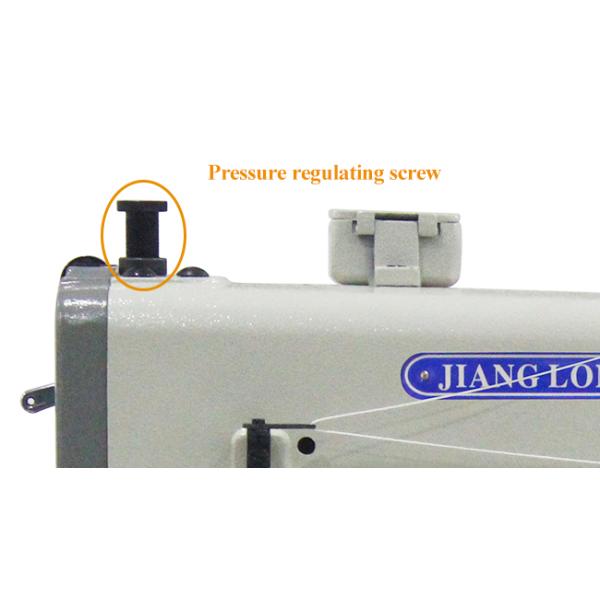

2. Pressure adjusting nut, adjust the pressure of the large and small presser feet; turn clockwise to increase the pressure when sewing thick materials, so that the machine can feed stably and the stitch length is even; on the contrary, when sewing thin materials, reduce the pressure and make the sewing material unavailable wrinkle

Manual Lubrication 800RPM 750W Servo Motor Sewing Machine

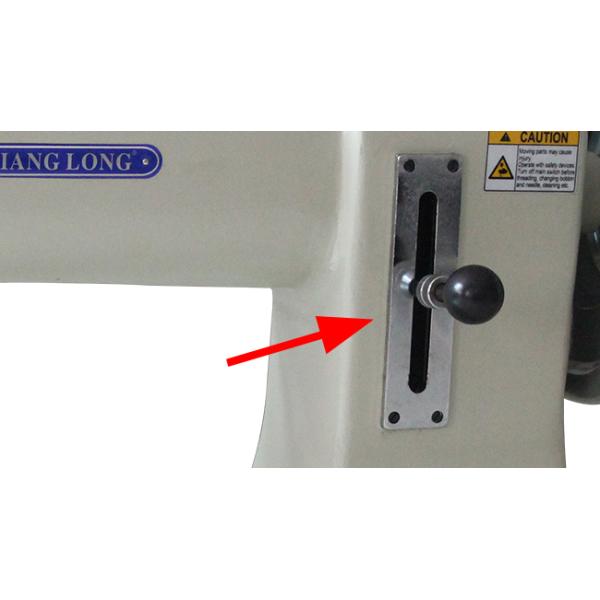

3. Adjust the stitch length handle

Manual Lubrication 800RPM 750W Servo Motor Sewing Machine
