Compound Feed Large Hook 8mm Stitch Leather Sewing Machine
Compound Feed Large Hook 8mm Stitch Leather Sewing Machine
Compound Feed Large Hook 8mm Stitch Leather Sewing Machine
Compound Feed Large Hook 8mm Stitch Leather Sewing Machine
Compound Feed Large Hook 8mm Stitch Leather Sewing Machine
Compound Feed Large Hook 8mm Stitch Leather Sewing Machine
Compound Feed Large Hook 8mm Stitch Leather Sewing Machine
Compound Feed Large Hook 8mm Stitch Leather Sewing Machine
Specifications
Brand Name :
Jianglong
Model Number :
JL-8BDL-2A
Place of Origin :
Dongguan,China
MOQ :
1 set
Price :
USD 680.89 - 732.36 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000 Set per month
Delivery Time :
5-8 Work days
Packaging Details :
The inner packaging is a foam box, and the outer packaging is a carton
Product name :
cylinder bed sewing machine
Max. Sewing Speed :
2200（r.p.m）
Max.Stitch Length :
0-8mm
Diameter of Cylinder Bed :
65mm
Needle size :
DP*17 (21#)
Hook :
Large Vertical Hook
Lubrication :
Automatic lubrication
condition :
new
Description

Single Needle Large Hook Compound Feed Lockstitch Industrial Sewing Machine

Product introduce

This is a sewing machine directly driven by a large shuttle computer, using high-quality accessories. It has the functions of automatic winding core, up and down fixed needles, fully automatic circulating oil supply and lubrication design, which greatly reduces the wear of parts and reduces noise. The sliding rod type thread take-up and the vertical rotary hook hook the thread form a double-thread lock stitch. The upper and lower shafts are driven by a synchronous toothed belt. The presser foot, the feed dog, and the needle feed synchronously, and the lever type stitch length adjustment mechanism. High-pressure foot stroke, high-pressure foot lifting clearance and large stitch length, with cylindrical sewing table, suitable for seam sewing of school bags, travel backpacks, rucksacks, handbags, etc. Optional pneumatic presser foot lifting and reverse stitching device, which is efficient, energy-saving, environmentally friendly and silent.

Parameter of machie

model JL-8BDL-2A
Number of Needle Single Needle
Max. Sewing Speed 2200(r.p.m)
Max.Stitch Length 0-8mm
Diameter of Cylinder Bed 65mm
Presser foot lift 8 mm(by hand) 14 mm(by knee)
Needle size DP*17 (21#)
Hook Large Vertical Hook
Lubrication Automatic lubrication
Working Space 250*110mm
motor Servo Direct Drive Motor
Mechanical Configuration Cylinder-bed
Feed Mechanism Compound Feed
Dimensions 65.5*31*60.2cm
N.W 50KG
Color white

Product Case
Suitable for the surrounding operations of heavy bags, suitcases and mattresses.

Product details
1. Computer direct drive integrated.


2. Automatic oil supply device.

3.Presser foot, machine needle, feeding cloth, three synchronous feeding, so that the fabric is not easy to slip and wrinkle.

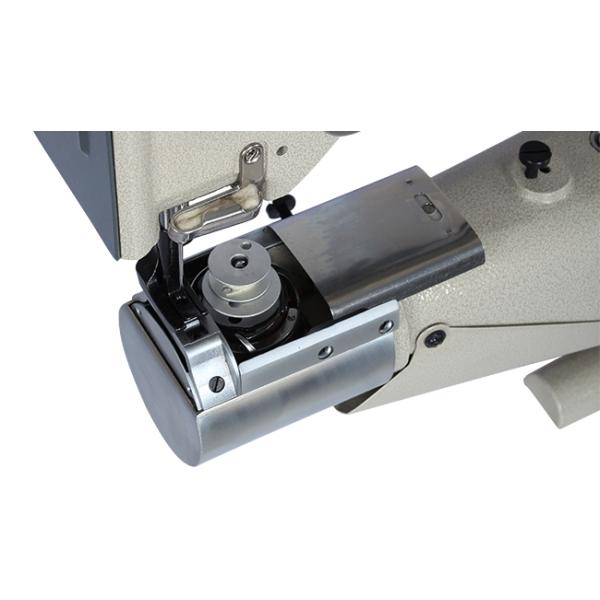

4.Large vertical hook .

Compound Feed Large Hook 8mm Stitch Leather Sewing Machine

FAQ

Q1. Is your company a factory or trading company?

A. We are sewing machine factory, we focus on excellence sewing machine.

Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.

Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price

Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.

Q5. How can I get a quotation?

A. First please give us your email address and which machine are your interesting.
