Thick Materials 220V 6.5mm Stitch Leather Sewing Machine
Thick Materials 220V 6.5mm Stitch Leather Sewing Machine
Thick Materials 220V 6.5mm Stitch Leather Sewing Machine
Thick Materials 220V 6.5mm Stitch Leather Sewing Machine
Thick Materials 220V 6.5mm Stitch Leather Sewing Machine
Thick Materials 220V 6.5mm Stitch Leather Sewing Machine
Thick Materials 220V 6.5mm Stitch Leather Sewing Machine
Thick Materials 220V 6.5mm Stitch Leather Sewing Machine
Specifications
Brand Name :
Jianglong
Model Number :
JL-8B-J
Place of Origin :
Dongguan,China
MOQ :
1 set
Price :
USD 305.88 - 394.12 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000 Set per month
Delivery Time :
5-8 Work days
Packaging Details :
The inner packaging is a foam box, and the outer packaging is a carton
Product name :
single needle sewing machine
Max. Sewing Speed :
2200（r.p.m）
Max.Stitch Length :
0-6.5mm
Diameter of Cylinder Bed :
65mm
Needle size :
DP*17 (21#)
Hook :
Small Vertical Hook
Lubrication :
Manual oil injection
Conmdition :
new
Description

Heavy Duty Leather Sewing Machine Cylinder Bed Walking Foot Industrial Sewing Machine

Product introduce

This is an ordinary nozzle barrel type comprehensive feed sewing machine, which adopts manual lubrication method, adopts sliding rod to take up the thread to form a double-thread lock stitch, and the upper and lower shafts are driven by synchronous gear belts. The presser foot, the needle, the feeding cloth are fed synchronously, and the lever type stitch length adjustment mechanism.

Product advantages

Machine nozzle design
Improved the disadvantage that the casting structure is easy to slip compared with the previous casting structure.

product case

Suitable for the surrounding operations of heavy bags, suitcases and mattresses.

Product parameter

product name industrial sewing machine
keyword mattress dewing machine
presser foot lift 8mm (by hand) 14mm (by knee)
voltage 220 V
sewing material thick materials
Dimensions 66.6*26.6*51cm

Product details

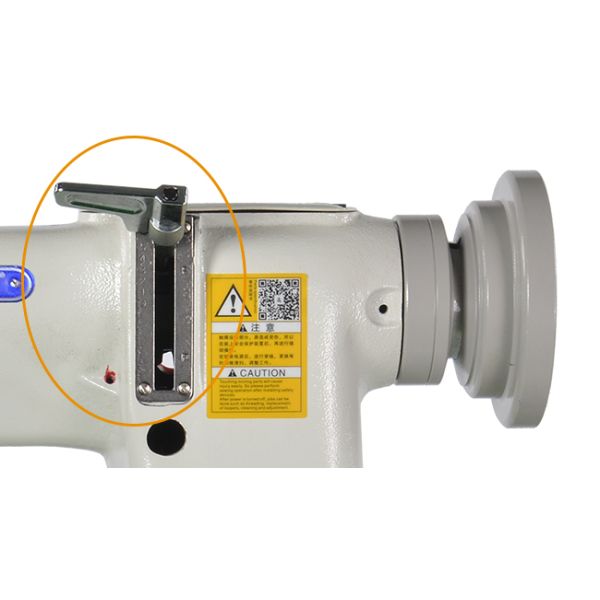

Back needle handle
The machine adopts the stitch length adjustment and the reverse seam structure to integrate, the appearance is beautiful, the structure is reasonable, the length of the stitch length can be changed by adjusting the front and back of the nut, and the reverse seam feeds when the reverse seam handle is pulled down.

Thick Materials 220V 6.5mm Stitch Leather Sewing Machine

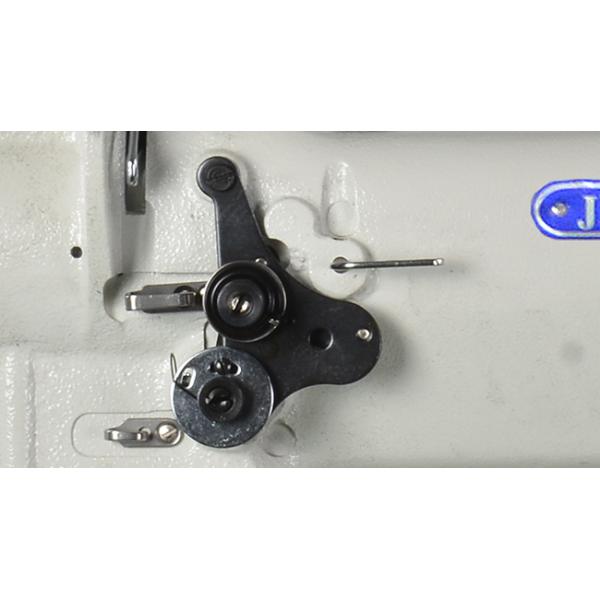

Thread clamp
Adjust the tension of the upper thread.

Thick Materials 220V 6.5mm Stitch Leather Sewing Machine

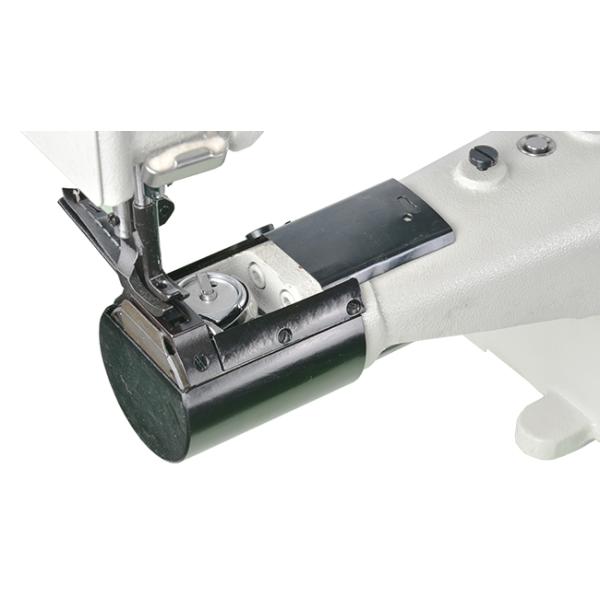

Vertical shuttle
The hook tip hooks the thread loop while expanding the thread loop and guides the thread around the bobbin to form a lock stitch.

Thick Materials 220V 6.5mm Stitch Leather Sewing Machine

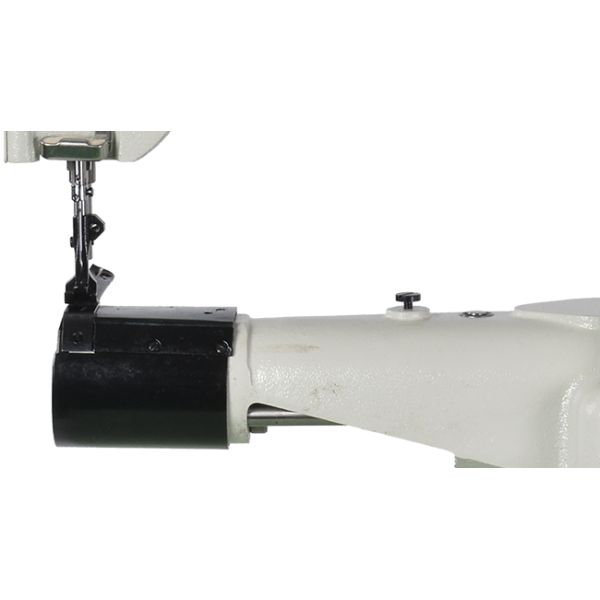

Cylindrical cover
The cylindrical protective cover can protect the shuttle bed, the diameter of the protective cover is 65mm.

Thick Materials 220V 6.5mm Stitch Leather Sewing Machine
