Specifications
Brand Name :
Jianglong
Model Number :
JL-8B-A
Place of Origin :
Dongguan,China
MOQ :
1 set
Price :
USD 350 -438.24 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000 Set per month
Delivery Time :
5-8 Work days
Packaging Details :
The inner packaging is a foam box, and the outer packaging is a carton
product name :
Single Needle Industrial Sewing Machine
Max. Sewing Speed :
2200(r.p.m)
Max.Stitch Length :
0-8.0mm
Diameter of Cylinder Bed :
65mm
Needle size :
DP*17 (21#)
Hook :
Small Vertical Hook
Lubrication :
Manual Lubrication
condition :
new
Description

Industrial 8B Cylinder Bed Sewing Machine High Speed Hand Bag Sewing Machine

Product introduce
This is a cylinder type thick material lockstitch sewing machine specially designed for luggage manufacturing. It has a solid structure and a novel shape.
The sliding rod is used to take up the thread to form a double-thread lock stitch, and the upper and lower shafts are driven by a synchronous toothed belt.
Presser foot, feeding cloth, synchronous needle feeding, lever type stitch length adjustment structure.
The stroke of the high-pressure foot, the high-pressure foot lifts the gap and the large stitch length, to match the cylindrical sewing table.

Product advantages
It is made of high-precision, high-wear-resistant materials to increase its stability, wear-resistant type, and improve the service life of the machine

Product case

Suitable for the surrounding operations of heavy bags, suitcases and mattresses.

Product parameter

product name thick leather sewing machine
keyword leather hand bag sewing machine
presser foot lift 8mm (by hand ) 14mm (by knee )
voltage 220 V
motor Clutch Electric Motor, Electronic Energy-saving Machine(Including with Fixed Needle, Adjustable Speed)
working space 250×110mm

Product details

Parametric screw
The lateral screw can fix the edging tube frame.

750W 2200RPM Manual Lubrication Cylinder Bed Sewing Machine

Back needle handle
The machine adopts the stitch length adjustment and the reverse seam structure to integrate, the appearance is beautiful, the structure is reasonable, the length of the stitch length can be changed by adjusting the front and back of the nut, and the reverse seam feeds when the reverse seam handle is pulled down.

750W 2200RPM Manual Lubrication Cylinder Bed Sewing Machine

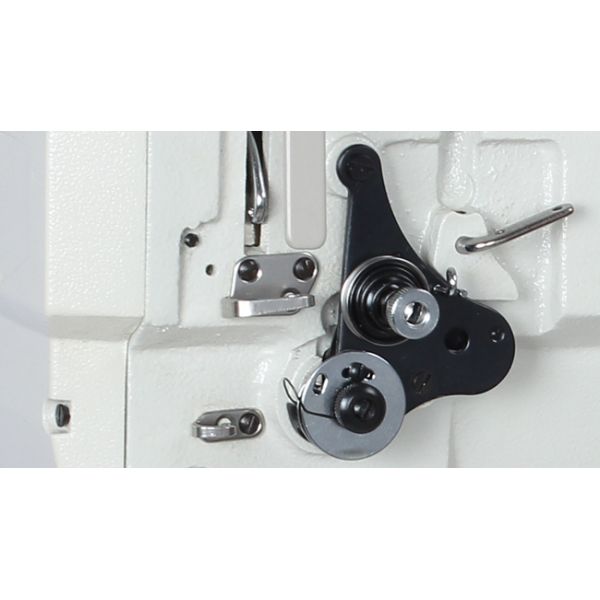

Thread clamp
Adjust the tension of the upper thread.

750W 2200RPM Manual Lubrication Cylinder Bed Sewing Machine

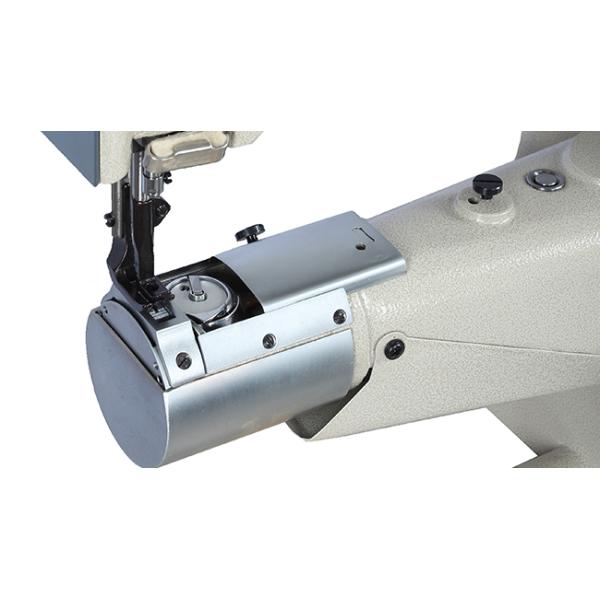

Vertical shuttle
The hook tip hooks the thread loop while expanding the thread loop and guides the thread around the bobbin to form a lock stitch.

750W 2200RPM Manual Lubrication Cylinder Bed Sewing Machine

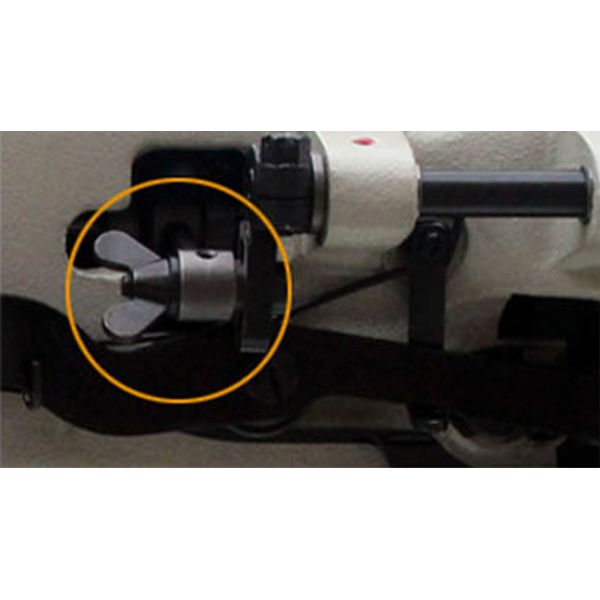

Adjust presser foot lifting function
Adjust the height of the alternate feeding of the presser foot by the position of the wing nut.

750W 2200RPM Manual Lubrication Cylinder Bed Sewing Machine
