Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine
Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine
Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine
Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine
Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine
Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine
Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine
Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine
Specifications
Brand Name :
Jianglong
Model Number :
JL-341
Place of Origin :
Dongguan,China
MOQ :
1 set
Price :
USD 419.12 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 Set per month
Delivery Time :
5-8 Work days
Packaging Details :
The inner packaging is a foam box, and the outer packaging is a carton
product name :
industrial sewing machine
Number of Needle :
Single Needle
Max. Sewing Speed :
2200(r.p.m)
Max.Stitch Length :
0-9.5mm
Diameter of Cylinder Bed :
70mm
Needle size :
DP*17(21#)
Hook :
Vertical/Standard hook（26.4mm Core）
Lubrication :
Manual Lubrication
Description

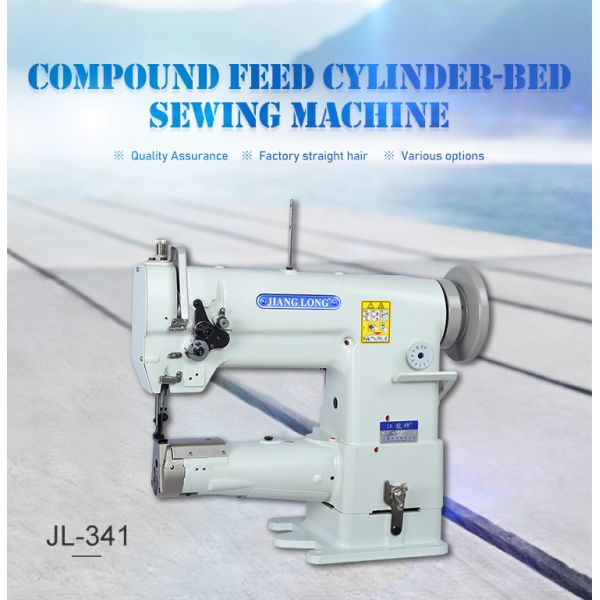

JL341 Cylinder Bed Luggage Bag Making Industrial Sewing Machine for Thick material

Product Introduction

1 Adopt the new tooth frame, double large rotary hook and shuttle, Taiwan-made twill gear, shuttle bed base with copper sleeve, standard horn splitter hook and other accessories.

2 The sliding rod is used to take up the thread to form a double-thread lock stitch, and the upper and lower shafts are driven by a synchronous gear belt.

3 Presser foot, feeding cloth, synchronous needle feeding, lever type stitch length adjustment structure.

4 Cylindrical thick material lockstitch sewing machine specially designed for luggage and bags.

Parameter of machine

Model JL-341
Number of Needle Single Needle
Max. Sewing Speed 2200(r.p.m)
Max.Stitch Length 0-9.5mm
Diameter of Cylinder Bed 0-9.5mm
Diameter of Cylinder Bed 70mm
Presser foot lift 8mm (by hand) 13mm (by knee)
Needle size DP*17(21#)
Hook Vertical/Standard hook(26.4mm Core)
Lubrication Manual lubrication
Working Space 250*110mm
motor Clutch Electric Motor, Electronic Energy-saving Machine
Mechanical Configuration cylinder -bed
Feed Mechanism Compound Feed

Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine

Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine

Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine

Thick Material 9.5mm Stitch 70mm Cylinder Bed Sewing Machine

FAQ

Q1. Is your company a factory or trading company?
A. We are sewing machine factory, we focus on excellence sewing machine.

Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.

Q3. How about your price?
A. The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price.

Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.

Q5. How can I get a quotation?
A. First please give us your email address and which machine are your interesting.
