250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine
250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine
250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine
250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine
250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine
250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine
250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine
250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine
Specifications
Brand Name :
Jianglong
Model Number :
JL-28BL-2A
Place of Origin :
Dongguan,China
MOQ :
1 set
Price :
USD 632.36 - 867.65 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000 Set per month
Delivery Time :
5-8 Work days
Packaging Details :
The inner packaging is a foam box, and the outer packaging is a carton
product name :
high speed sewing machine
Number of Needle :
double needle
Max. Sewing Speed :
2200(r.p.m)
Max.Stitch Length :
0-8.0mm
Diameter of Cylinder Bed :
65mm
Needle size :
DP*17 (21#)
Hook :
Small Vertical Hook
Working Space :
250×110mm
Description

Industrial Compound Feed Supper Hook Twin Needle Sewing Machine For Thick Goods

Product introduce

This is a cylindrical double-needle sewing machine, the design of the large shuttle can be thicker, while reducing the number of times to replace the bottom thread. The machine adopts a fully automatic circulating oil supply lubrication system, which greatly reduces the loss of parts and reduces the noise generated during sewing. The surface is black-plated diamond tooth frame, which is more wear-resistant than ordinary tooth frame. This machine is equipped with optional clutch motor, electronic energy-saving motor (including fixed needle, adjustable speed)

Product advantages
The automatic oil supply design greatly reduces the loss of parts and reduces sewing noise. It adopts a large rotating shuttle design, a 28MM large bobbin reduces the frequency of changing the core, and the selection of spare parts is precise. The new black gold steel frame is adopted, which is durable.

Parameter of machine

Model JL-28BL-2A
Number of Needle Double Needle
Max. Sewing Speed 2200(r.p.m)
Max.Stitch Length 0-8mm
Diameter of Cylinder Bed 65mm
Presser foot lift 8 mm (by hand)14 mm (by knee)
Needle size DP*17 (21#)
Hook Large Vertical Hook
Lubrication Automatic lubrication
Working Space 250*110mm
motor Clutch Electric Motor, Electronic Energy-saving Machine
Mechanical Configuration Cylinder-bed
Feed Mechanism Compound Feed
Dimensions 65.5*31*60.2cm
Color White
N.W 32KG

Product case
It is suitable for the operation of handbags, toys, storage boxes, cosmetic boxes, bags and leather factories.

Product details
1. Inverted needle handle, this model adopts the stitch length adjustment and the reverse stitch structure to integrate, with beautiful appearance and reasonable structure, the length of the stitch length can be changed by adjusting the front and back of the nut, and the reverse stitching handle is pulled down to feed the reverse stitch.

250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine

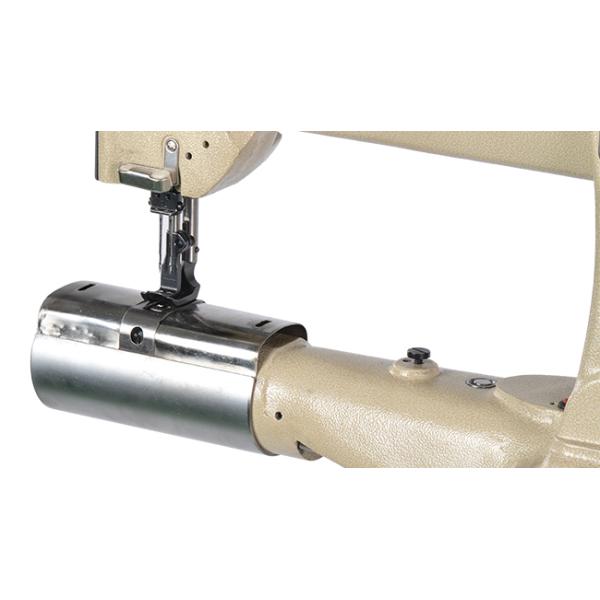

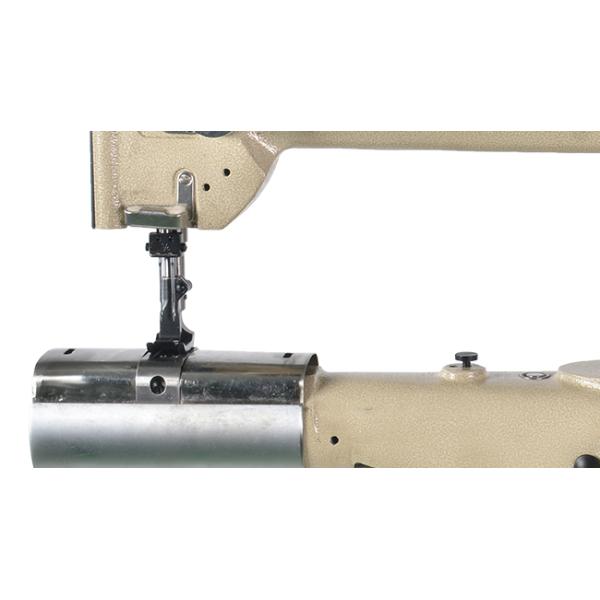

2. Cylindrical mouth cover, the cylindrical protective cover can protect the shuttle bed, the diameter of the protective cover is 65mm.

250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine


3. The automatic circulating oil supply device is an improved type on the basis of traditional manual oiling. It is equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of various parts, greatly increase the service life of the machine and reduce parts wear.

250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine


4. Double needle, double needle sewing can reduce sewing time and make stitches more beautiful.

250×110mm Compound Feed 65mm Cylinder Bed Sewing Machine

FAQ

Q1.Is your company a factory or trading company?
A. We are sewing machine factory, we focus on excellence sewing machine.

Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.

Q3. How about your price?
A. The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price.

Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.

Q5. How can I get a quotation?
A. First please give us your email address and which machine are your interesting.
