Vertical Hook 1600RPM Post Bed Double Needle Sewing Machine
Vertical Hook 1600RPM Post Bed Double Needle Sewing Machine
Vertical Hook 1600RPM Post Bed Double Needle Sewing Machine
Vertical Hook 1600RPM Post Bed Double Needle Sewing Machine
Vertical Hook 1600RPM Post Bed Double Needle Sewing Machine
Vertical Hook 1600RPM Post Bed Double Needle Sewing Machine
Vertical Hook 1600RPM Post Bed Double Needle Sewing Machine
Vertical Hook 1600RPM Post Bed Double Needle Sewing Machine
Specifications
Brand Name :
Jianglong
Model Number :
JL-4420H-7
Place of Origin :
Dongguan,China
MOQ :
1 set
Price :
USD 1000 - 1117.7 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000 Set per month
Delivery Time :
5-8 Work days
Packaging Details :
The inner packaging is a foam box, and the outer packaging is a carton
Product name :
seat belt sewing machine
Max. Sewing Speed :
1600(r.p.m)
Max.Stitch Length :
0-10 mm
Needle size :
DP*17 (21#)
Hook :
Large Vertical Hook
Lubrication :
Manual lubrication
motor :
400W dedicated motor/800W electronic motor
Condition :
new
Description

Industrial Post Bed Thick Line Compound Feed Double Needle Sewing Machine

Product introduce

This is a three-synchronous comprehensive feeding cylindrical double-needle sewing machine, which is mainly used in medium-thickness material leather automotive supplies, etc., suitable for cylindrical products, with neat and beautiful stitches. It adopts a large vertical rotary hook to hook the thread and the connecting rod to take up the thread, which can pass thick threads and has a large thread volume, which can reduce frequent replacement of the bottom thread.

Product advantage

The post bed design can sew items that other models cannot sew and meet the different sewing needs of customers. The whole machine rotates smoothly in terms of comprehensive performance, low noise, high durability; neat and beautiful stitches.

Parameter of machine

Model 4420H-7
Number of Needle Double Needle
Max. Sewing Speed 1600(r.p.m)
Max.Stitch Length 10mm
Presser foot lift 8 mm (by hand) 14 mm (by knee)
Needle size DP*17 (21#)
Hook Large Vertical Hook
Lubrication Manual Lubrication
Working Space 250*100mm
motor 400W dedicated motor/800W electronic motor
Mechanical Configuration post-bed
Feed Mechanism Compound Feed
Dimensions 66*37*88.7cm
Color White
N.W 55KG
G.W 60KG

Product details

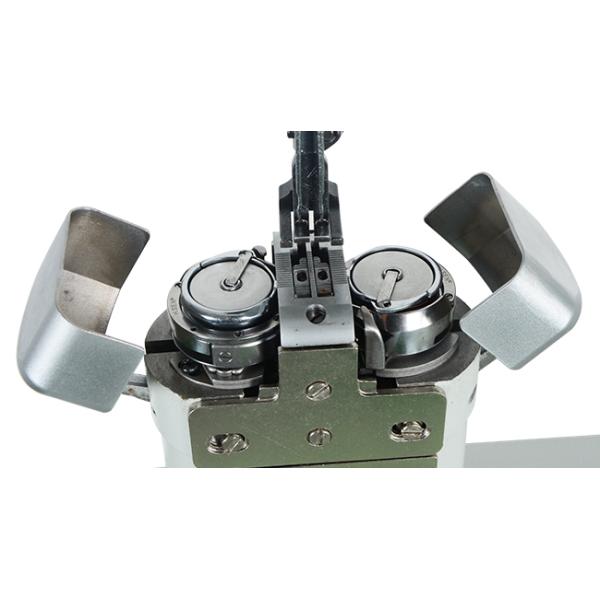

1. Vertical rotary hook, the tip of the hook hooks the thread loop while expanding the thread loop and guiding the thread loop around the bobbin to form a lock stitch.


2. Oil pump, the oil pump of this machine can suck the oil stored in the oil basin to various key parts of the machine head to reduce friction.


3. Adjust the stitch length digital dial.


4. Needle position group selectable.


5. The left and right shuttle bed frame, the frame for assembling parts such as the rotary hook, the line dividing hook, the dividing hook seat and the dividing hook connecting rod.

Vertical Hook 1600RPM Post Bed Double Needle Sewing Machine

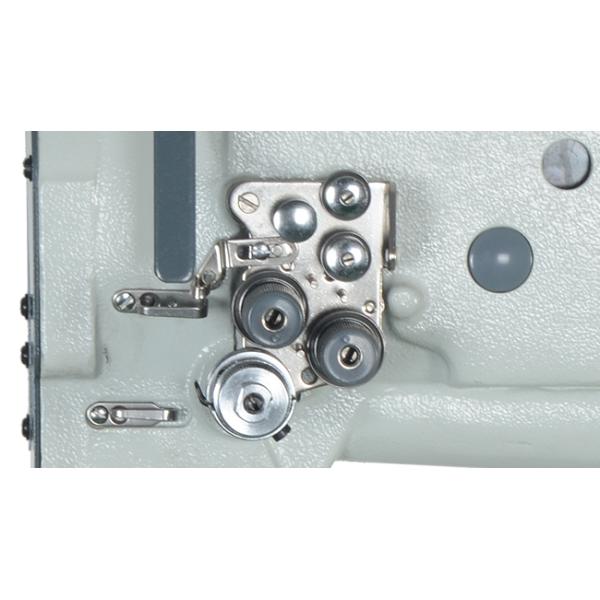

6. Thread clamp, adjust the tension of the upper thread.

Vertical Hook 1600RPM Post Bed Double Needle Sewing Machine

FAQ

Q1. Is your company a factory or trading company?

A. We are sewing machine factory, we focus on excellence sewing machine.


Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.

Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price.

Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.

Q5. How can I get a quotation?

A. First please give us your email address and which machine are your interesting.
