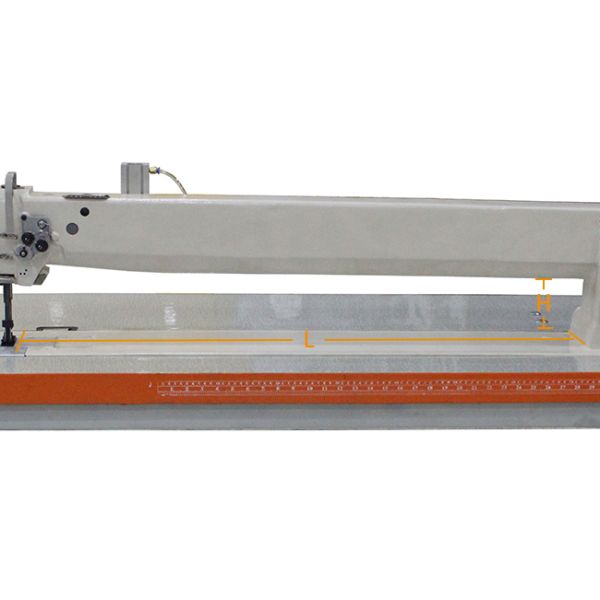

Flat Bed 1041*150 MM 2000RPM Compound Feed Sewing Machine
Flat Bed 1041*150 MM 2000RPM Compound Feed Sewing Machine
Flat Bed 1041*150 MM 2000RPM Compound Feed Sewing Machine
Flat Bed 1041*150 MM 2000RPM Compound Feed Sewing Machine
Flat Bed 1041*150 MM 2000RPM Compound Feed Sewing Machine
Flat Bed 1041*150 MM 2000RPM Compound Feed Sewing Machine
Specifications
Brand Name :
Jianglong
Model Number :
JL-6620-41
Place of Origin :
Dongguan,China
MOQ :
1 set
Price :
USD 1912- 2221 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000 Set per month
Delivery Time :
5-8 Work days
Packaging Details :
The inner packaging is a foam box, and the outer packaging is a carton
Product name :
Flat bed sewing machine
Max. Sewing Speed :
2000 (r.p.m)
Max.Stitch Length :
0-11mm
Needle size :
DP*17 (21#)
Hook :
Large Vertical Hook
Lubrication :
Automatic lubrication
Working space :
1041*150 mm
Condition :
new
Description

Super Large Operating Space Compound Feed Double Needle Industrial Sewing Machine​

Product introduce

This is a customized three-synchronous comprehensive feeding and long double-needle industrial sewing machine, which can be equipped with pneumatic foot lifter and pneumatic reverse stitching. Its working space is 1041*150 mm, the maximum sewing speed is 2000 (r.p.m), and the maximum stitch length is 11mm. The synchronous toothed belt transmission plunger oil pump lubrication system is adopted. The oil pump can suck the oil stored in the oil basin to various key parts of the machine head to reduce friction.

Product advantage

Increase the operating space, which is conducive to the sewing of large items;
Use high-quality spare parts to increase the stability and wear resistance of the machine;
The whole machine rotates smoothly in terms of comprehensive performance, has low noise and high durability.

Parameter of machine

Model JL-6620-41
Number of Needle Double Needle
Max. Sewing Speed 2000(r.p.m)
Max.Stitch Length 11mm
Presser foot lift 8mm (by hand) 15 mm (by knee)
Needle size DP*17 (21#)
Hook Large Vertical Hook
Lubrication Automatic lubrication
Working Space 1041*150mm
motor Ordinary clutch motor optional / energy-saving adjustable speed motor
Mechanical Configuration flat-bed
Feed Mechanism Compound Feed
Dimensions Customized
Color White
N.W Customized
G.W Customized

Product details

1. Adjust the stitch pitch digital dial.

Flat Bed 1041*150 MM 2000RPM Compound Feed Sewing Machine


2. Automatic circulating oil supply device, an improved version based on traditional manual oiling, equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of various parts, greatly increase the service life of the machine and reduce parts wear.

Flat Bed 1041*150 MM 2000RPM Compound Feed Sewing Machine


3. Super large operating space can meet the sewing needs of large materials.

Flat Bed 1041*150 MM 2000RPM Compound Feed Sewing Machine
4. Double needle and double needle sewing can reduce sewing time and make stitches more beautiful.

Flat Bed 1041*150 MM 2000RPM Compound Feed Sewing Machine


5. Pneumatic lifting of the presser foot, pneumatic reverse sewing, more labor-saving operation.

FAQ

Q1. Is your company a factory or trading company?

A. We are sewing machine factory, we focus on excellence sewing machine.


Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.

Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price.

Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.

Q5. How can I get a quotation?

A. First please give us your email address and which machine are your interesting.
