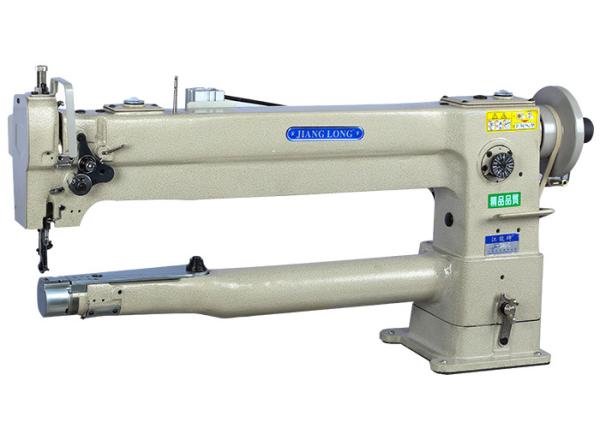

Manual Lubrication 1000mm × 110mm Long Arm Leather Sewing Machine
Manual Lubrication 1000mm × 110mm Long Arm Leather Sewing Machine
Manual Lubrication 1000mm × 110mm Long Arm Leather Sewing Machine
Manual Lubrication 1000mm × 110mm Long Arm Leather Sewing Machine
Manual Lubrication 1000mm × 110mm Long Arm Leather Sewing Machine
Manual Lubrication 1000mm × 110mm Long Arm Leather Sewing Machine
Manual Lubrication 1000mm × 110mm Long Arm Leather Sewing Machine
Manual Lubrication 1000mm × 110mm Long Arm Leather Sewing Machine
Specifications
Brand Name :
Jianglong
Model Number :
246V-C
Place of Origin :
Dongguan,China
MOQ :
1 set
Price :
USD857.36 - 1985.3 per set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100000 Set per month
Delivery Time :
5-8 Work days
Packaging Details :
The inner packaging is a foam box, and the outer packaging is a carton
Product name :
Compound feed sewing machine
Max. Sewing Speed :
2200（r.p.m）
Max.Stitch Length :
0-8mm
Diameter of Cylinder Bed :
50mm
Needle size :
DP*17 (21#)
Hook :
Large horizontal hook
Lubrication :
Manual lubrication
Working Space :
500/600/800/1000mm × 110mm
Description

Single Needle Industrial Long Arm Compound Feed Sewing Machine For Leather

Product introduce

This is an ordinary long-length small-mouth sewing machine. It is a thick leather sewing machine, mainly for sewing leather products. The lengthened space can be selected according to the needs of your own products, and the arm length is available in various specifications (500mm, 600mm, 800mm, 1000mm)

Product advantages

The functions of hemming and open thread can be interchanged conveniently. The operation space is lengthened and the working area is larger, which can meet the sewing needs of more products.

Parameter of machine

Model 246V-C
Number of Needle Single Needle
Max. Sewing Speed 2200(r.p.m)
Max.Stitch Length 0-8mm
Diameter of Cylinder Bed 50mm
Presser foot lift 8 mm (by hand) 12 mm(by knee)
Needle size DP*17 (21#)
Hook Large horizontal hook
Lubrication Manual lubrication
Working Space 500/600/800/1000*110mm
motor Clutch Electric Motor, Electronic Energy-saving Machine
Mechanical Configuration cylinder -bed
Feed Mechanism Compound Feed
Dimensions 65.5*31*60.2cm
Color White
N.W Customized

Application case

Suitable for stitching and sewing at the bottom of ultra-long bags, such as special uniform bags, golf club bags, tubular musical instrument bags, extended shoes, etc.

Product details

1. Oil supply observation window, this oil observation window is designed in the fuselage, and the oil supply situation can be observed through this window.

Manual Lubrication 1000mm × 110mm Long Arm Leather Sewing Machine

2. Reverse stitch handle and reverse stitch handle are in a static state during sewing operation. If you need to reinforce the sewing material, press down the reverse stitch handle and the sewing material will be fed back.

Manual Lubrication 1000mm × 110mm Long Arm Leather Sewing Machine

FAQ

Q1. Is your company a factory or trading company?

A. We are sewing machine factory, we focus on excellence sewing machine.

Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.

Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price

Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.

Q5. How can I get a quotation?

A. First please give us your email address and which machine are your interesting.
