High Speed Automatic Sewing Thread Winding Machine
High Speed Automatic Sewing Thread Winding Machine
High Speed Automatic Sewing Thread Winding Machine
High Speed Automatic Sewing Thread Winding Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
single horse
Certification :
ISO9001
Supply Ability :
1000 Set/Sets per Month
Packaging Details :
standard wooden cases
MOQ :
1 - 9 Sets
Price :
$2,300.00
Power(W) :
1100W motor power of cleaner
Dimension(L*W*H) :
2300*1100*1500mm
Weight :
350kg
Warranty :
1 Year
After-sales Service Provided :
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Condition :
New
Voltage :
3 phased 400V±10%
Application :
winding yarns
Automatic Grade :
Automatic
Production Capacity :
1000m/min
Memory Capacity :
upon request
Name :
AUTO THREAD WINDING MACHINE
Color :
White
Function :
Cone Yarn Bobbin Winding Machine
Product name :
Full-automatic Bobbin Winder Machine
Scope of application :
Indusrtial
Spindle :
2-108 Spindles Winding Machine
Speed :
100-1000m/min
Port :
shanghai,ningbo
Description

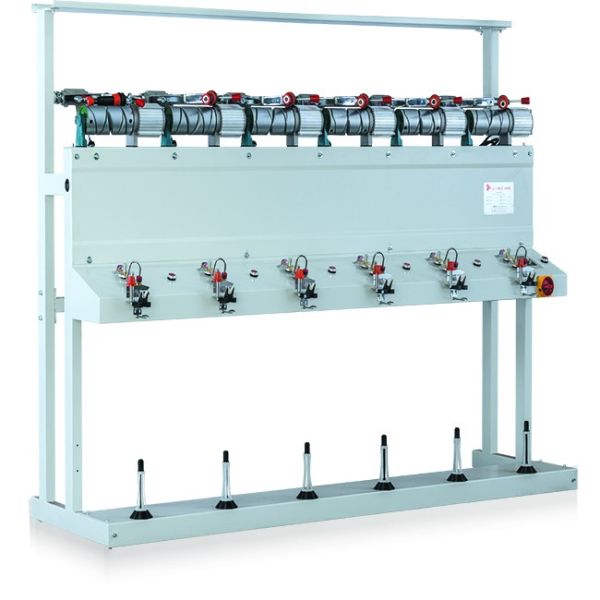

High Speed Automatic Sewing Thread Winding Machine

HAVE YOU MEET GSJX

WALK WITH KNITTER
PROFESSIONAL OF KNITTING MACHINERY

With 25 years of product upgrade,and 25 years of service improvement,
Guosheng is now at the very forefront of world's smart manufacturer of knitting machines.
It undertakes the task of improving the performance of the whole products,
And join hands with the knitter to constantly make significant contributions to the standardization
of the world's knitting machine.
Product Description

Product Application

it's mainly for the Yarn Dyeing preparing using, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.

SPECIFICATIONS FOR WINDING MACHINE
MODEL
GM-DT18
GROOVED DRUM
Length 182mm,O/D 82mm,pitch 2.5,symmetrical 0º
TAKE UP
Taper 3º30′,4º20′,5º57′cylindrical170*
CONFIGURATION
2or6 Heads/Section single side,12 Heads/Section gouble side
MAX.SPEED
1000m/min
TRAVERSE
Standard:147mm
YARN FRAME BALANCER
The winding pressure can be controlled by balance of spring
MAX.PACKAGE
250mm
START/STOP
By single spindle operation panel and button
RADIAL ANTI PATTERNING SYSTEM
The anti pattern parament is controlled by computer
ABSORBED POWER
90W per head at max.speed
POWER SUPPLY
220V 50/60HZ
DRIVE SYSTEM
Single head control alone,2 heads to 108 heads is acceptable
DETECTOR
Infrared ray has the function of stop motion for broken yarn,full bobbin and empty spin
MOTORIZATION
Each spindle has one inverter motor,and each side has most 54 spindles
YARN CLEARING ASSY
Consisits of the up,down blades and adjustable holder,can adjust size according to be the number of yarn
BLOWING SUCKING CLEANER
1100W motor power of cleaner.24 spindles can be matched.

High Speed Automatic Sewing Thread Winding Machine

Certifications
High Speed Automatic Sewing Thread Winding Machine
Our Service
High Speed Automatic Sewing Thread Winding Machine
High Speed Automatic Sewing Thread Winding Machine

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Every machine you buy, we take care of every product like a child

To make sure the product you buy is safe during transportation,we use vacuum package to prevent moisture and rust.In addition,we provide complete packaging methods according to your requirement,and provide convenience for loading,uploading and storage as well as save time for checking and delivery.Make sure you can receive proper product at a proper time.

High Speed Automatic Sewing Thread Winding Machine
High Speed Automatic Sewing Thread Winding Machine
