IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
Specifications
Brand Name :
A.L
Model Number :
AL-1E2W
Certification :
CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
24pcs/CTN (38x29x27CM),Weight 10Kg
Power :
1W,3W
Beam Angle :
30°
Input :
24V;120V;240V
Material :
316 Stainless Steel,Die-casting Aluminum
Cable Length :
0.6m or longer
Description

IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting

Quick Details

1. Power:2W

2. Voltage:24V,120V,240V

3. Color:R/G/B/Y//WW/CW/W

4. Light Size:Φ55mm x H76mm

5. Lighting Way:Side Lighting

6. Beam Angle:30°

7. Material:304/316 stainless steel + Die-casting aluminum

8. Warranty:Two years

Technical Datas

Model No. AL-1E2W
Input Voltage 24V,120V,240V
Power 2W
Light Size Φ55mm x H78m
Sleeve Size Φ48mm x H98m
Color R/G/B/Y/Amber/W/CW/WW
Color Temperature 2700K~6500K
LED Chip CREE 1W/3W high power LED
LED Qty 1pcs
Beam Angle 30°
Dimmable YES
IP Grade IP67
Weight 0.41Kg
Front Cover 304 / 316 Stainless Steel
Lighting Way Side Lighting
Housing Die-casting aluminum
Sleeve PVC
Carton Package Dimension 38 x 29 x 27CM
Carton Package Qty 24pcs
Carton Package Weight 10Kg
Certification CE,RoHS
Warranty 2/3years

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Front cover:stainless steel sus316#.

Loading Capacity:>2000Kg

Cable gland:IP68 PG-11 copper with nickel-coated.

Gasket:Molding shaped silicone seal

Driver:Constant current output

Applicaation environment: -20℃-40℃

Power cable: H05RN-F 3x1.0mm² L=0.5M(High Voltage)

Mounting Sleeve:012PVC

Model Information

Model No. Color Power Lighting Way
AL-1E2W02 R/G/B/Y/W/CW/WW 2W One-Side-Lighting
AL-1E2W05 RGB 3in1 2W One-Side-Lighting
AL-2E2W02 R/G/B/Y/W/CW/WW 2W Two-Side-Lighting
AL-2E2W05 RGB 3in1 2W Two-Side-Lighting
AL-4E2W02 R/G/B/Y/W/CW/WW 2W Four-Side-Lighting
AL-4E2W05 RGB 3in1 2W Four-Side-Lighting

Competitive Advantage

1. 304/316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.

2. R/G/B/Y/W/CW/WW/RGB color optional,meet different lighting design.

3. Low voltage 24V,high voltage 120V-240V optional.

4. One/Two/Four side-lighting,choose the most appropriate way to light the building.

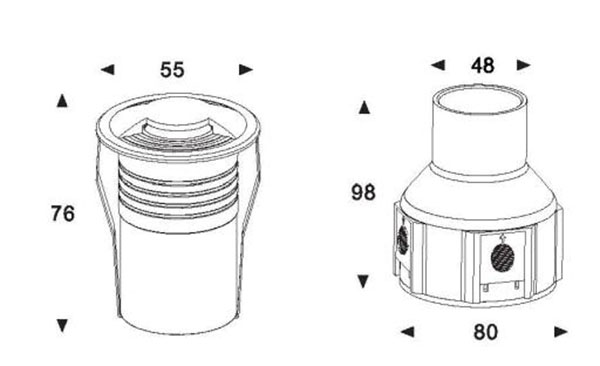

Dimension

IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting

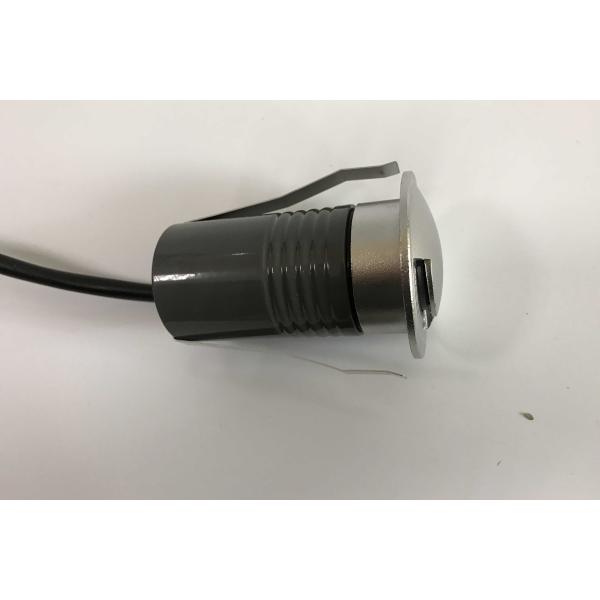

Product Photo

IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting

IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting

IP67 LED Underground Lamp,Aluminum Underground Lighting Fixtures 1 / 2 / 4 Side Lighting
