IP68 LED Underwater Light RGBW 4in1 With SUS316 Stainless Steel For Water Project

Products Description

This is an underwater lights with very good quality of molding shapped SUS316 stainless steel,tope brand of CREE high power LED.Its colors are very colorful,unicolor,RGB,RGB 3in1 and RGB 3in1 with DMX512.

The molding shapped SUS 316 stainless steel tripod bracket,making the installation more easy and convenient.

Quick Details

• LED:High power LED
• Voltage:DC12/24V
• Material:Molded shaped SUS 316 stainless steel
• Color:RGB/RGB 3in1/RGB 3in1 DMX512 /RGBW 4in1
• IP68

Technical Datas

Dimension

Material & Manufacturing Technique

Housing&Front Cover&Tripod:Molding shaped stainless steel sus316#

Glass:Step tempered glass,T=10mm

Lens:All-in -one optional lens,efficiency ≥ 85%

Loading capacity:Exert force area of Φ10=210Kgs,Φ30=550Kgs,Φ60=800Kgs

Cable Gland:IP68 PG-11 copper with nickel-coated.

LED:High power LED,CREE/OSRAM brand.

PCB:Excellent heat conductivity aluminum PCB,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

Power Cable:H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)

Glue:Dow Corning glue

Model Number Infos

Competitive Advantage

• All materials are stricted choosing,and used the most popular brand in the world.
• Molding shaped stainless steel sus316#,good heat dissipation and corrosion resistant make sure the lamps has wide application and long lifetime.
• 8mm Tempered glass, able to bear huge pressure.
• CE, ROHS, IP68 approved.
• Honeycomb lens,light is soft and uniform,RGB 3in1 colour mixture is beautiful.
• DMX 512 optional,easy to make your water lighting project magnificent.

Accessoris

Molding shapped SUS316 stainless steel tripod bracket,easy to install,can adjust the lighting angle.

Warm Tip & Warning

• This underwater light has to be lightened underwater to keep the light heat dissipation. Pls don't light it more than 15 minutes out of water!
• The LED underwater light is 12V / 24V low voltage,pls don't connect it to 220V / 240V high voltage,this will burn the LED underwater light.
• The best height for this LED underwater light lighting is within 1M
• The power cable of this LED underwater light can be customized.
• If you need the lamp work with DMX512 signal,pls contact our customer service agent.
• Temperature of water between -20℃-40℃ less than 1m depth.

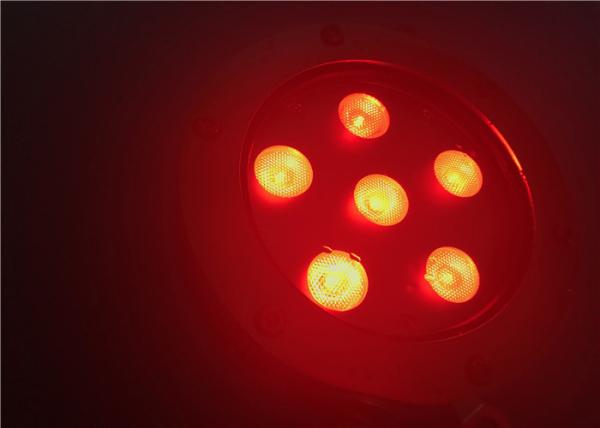

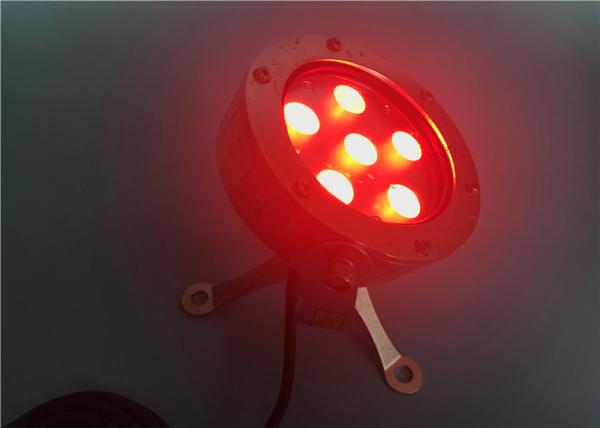

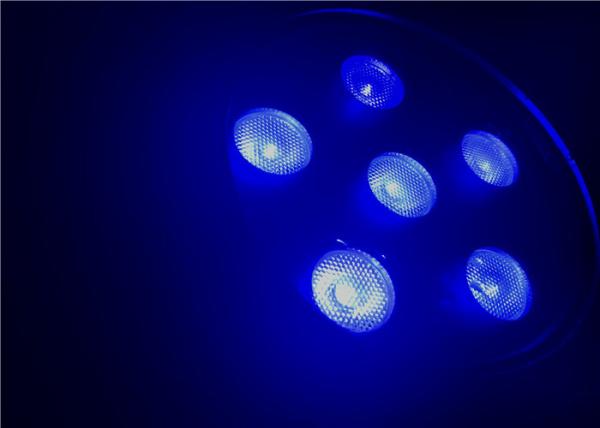

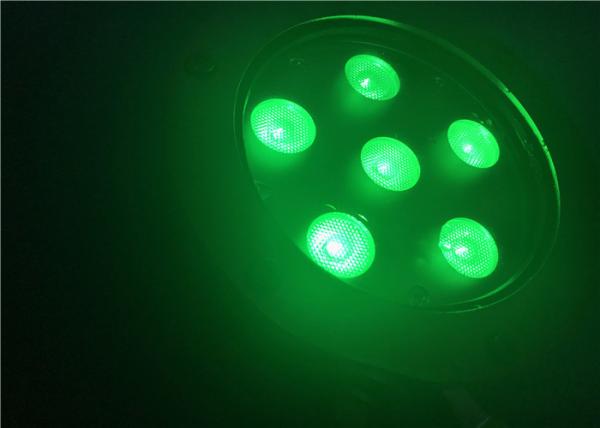

Photoes

Application Scene
