1 x 4W RGBW 4in1 LED Underwater Fountain Lights With 8MM Step Tempered Glass For Pool Lighting
1 x 4W RGBW 4in1 LED Underwater Fountain Lights With 8MM Step Tempered Glass For Pool Lighting
1 x 4W RGBW 4in1 LED Underwater Fountain Lights With 8MM Step Tempered Glass For Pool Lighting
1 x 4W RGBW 4in1 LED Underwater Fountain Lights With 8MM Step Tempered Glass For Pool Lighting
1 x 4W RGBW 4in1 LED Underwater Fountain Lights With 8MM Step Tempered Glass For Pool Lighting
1 x 4W RGBW 4in1 LED Underwater Fountain Lights With 8MM Step Tempered Glass For Pool Lighting
Specifications
Brand Name :
A.L
Model Number :
AL-4X
Certification :
CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
4pcs/CTN (34x18x31CM),Weight 6Kg
Power :
3W,9W
Beam Angle :
20°/30°
Input :
12V;24V
Cable Length :
0.6m or longer
Tempered Glass :
Thinkness = 8mm
Warranty :
Two Years
Description

1 x 4W RGBW 4in1 LED Underwater Light With 8MM Step Tempered Glass For Pool Lighting


Description

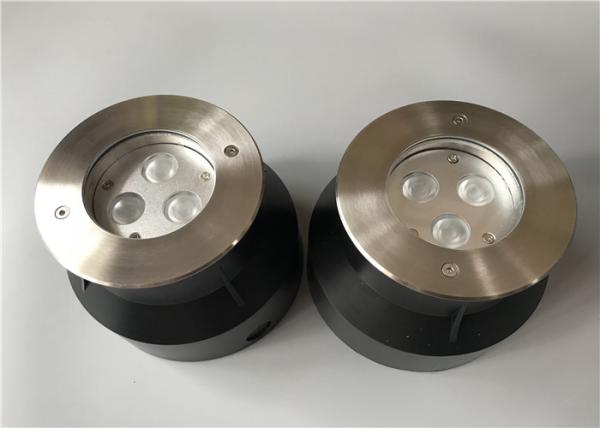

This is a LED underwater lights with recessed installation widly used in swimming pool and pond lighting.

ABS sleeve provide easy and convenient installation and good protection.Molding shapped SUS 316

stainless steel material come with good heat dissipation and corrosion resistant performance.


Quick Details

  1. 2W 3W 4W power
  2. DC12/24V
  3. 118mm diameter
  4. RGB 3in1,RGB4 4in1
  5. 3 years warranty


Technical Datas

Model No. AL-4X
Input Voltage DC12/24V
Power 3W,9W
Dimension Φ118mm x H55mm
Sleeve Dimension Φ108mm x H122mm
Color R/G/B/Y/RGB/RGB 3in1/Amber/W/CW/WW
Color Temperature 2700K~6500K
LED Chip CREE 1W/3W high power LED
LED Qty 3pcs
Beam Angle 20°/30°
Dimmable YES
Weight 1.5Kg
Housing 304 & 316 Stainless Steel
Front Cover 304 & 316 Stainless Steel
Sleeve PVC
IP Grade IP68
Carton Package Dimension 34x18x31CM
Carton Package Weight 6Kg
Carton Package Qty 4pcs
Certification CE,RoHS
Warranty 2/3years



Material & Manufacturing Technique

Housing: Molding shaped stainless steel sus316#.
Front cover: Molding shaped stainless steel sus316#
Glass: Step tempered glass,T=8mm
Lens: All-in -one optional lens,efficiency ≥ 85%
Loading Capacity: Exert force area of Φ10=770Kgs,Φ30=1600Kgs,Φ60=1860Kgs
Cable gland: IP68 PG-11 copper with nickel-coated.
LED: High power LED
PCB: Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
Driver:

Constant current output

Single color LED=1-circuit output

RGB 3in1 LED=3-circuit output
Power cable:

H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)
Sleeve: ABS



Model Number Infos

Model No. Color LED Qty Voltage Power
AL-4X0302 Red/Green/Blue/Yellow/White/WW/CW 3pcs 12V/24VDC 3 x 2W
AL-4X0304 RGB 3pcs 12V/24VDC 3 x 3W
AL-4X0305 RGB 3in1 3pcs 12V/24VDC 3 x 3W
AL-4X0305M RGB 3in1 with DMX 3pcs 12V/24VDC 3 x 3W
AL-4X0307 RGBW 4in1 3pcs 12V/24VDC 3 x 4W



Competitive Advantage

1. Whole lamp is made of 316 / 304 Stainless Steel,Weight = 1.5Kg,high level quality underwater light.
2. With ABS sleeve,lamp body can be buried into pool wall,the lighting effect is beautiful.
3. High power CREE & Osram LED,W/WW/R/G/B/Y/RGB 3in1 color optional,meet diversified lighting color
Change.
4. H07RN-F trong power cable length can be customzied.
5. Professional 10 years manufacturing and exporting experience,keep good quality control and good
after-sales service.


Warning

1.The underwater light has to be installed underwater light to prevent the lamp burned by over heating.

2. Pls connect it to right voltage,12V or 24VDC.

3.The best installation environment is underwater -20℃-40℃ less than 1m depth.


Dimension

1 x 4W RGBW 4in1 LED Underwater Fountain Lights With 8MM Step Tempered Glass For Pool Lighting

Packing

1 x 4W RGBW 4in1 LED Underwater Fountain Lights With 8MM Step Tempered Glass For Pool Lighting

Photoes

1 x 4W RGBW 4in1 LED Underwater Fountain Lights With 8MM Step Tempered Glass For Pool Lighting

1 x 4W RGBW 4in1 LED Underwater Fountain Lights With 8MM Step Tempered Glass For Pool Lighting



Application

Swimming pool lighting,garden pool lighting,square pool lighting,landscape pool lighting.
