RGBW 3in1 LED Fountain Light With SUS316 Stainless Steel With DMX512

Description

High power LED fountain lamp can install in water for decoration or illumination. It is widely used for fountain pool, theme park, etc. With built-in DMX512 decorder,can finish various of color charing mode.

Also you can make programme according to your project requirements.

Quick Details

• 9W,27W,12W,36W
• DC12V/24V
• IP68
• RGB 3in1 with DMX512
• 3 years warranty

Technical Datas

Material & Manufacturing Technique

Housing:Molding shaped stainless steel sus316#.

Front cover:Molding shaped Stainless steel sus316#.

Gasket:EPDM gasket.

Glass:Step tempered galss,T=8mm

Cable gland:IP68 PG-11 copper with nickel-coated.

LED:High power LED

PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk

Driver:Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output

Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth

Power cable:H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)

Model Number Infos

Products Advantage

1. SUS 316 stainless steel materials,good quality,2.6kg wright.Strong corrosion resistance.
2. Reliable brand of LED,CREE/OSRAM/Epistar high power LED,long lifetime.
3. With built-in DMX512 decorder plate,can finish various color changing mode.
4. 10MM thickness step tempered glass,strong bearing capacity.

Warm Tip & Warning

1. DC12/24V,pls don't connect to 110V or 240V high voltage.
2. The best height for this LED underwater light lighting is less then 1M.
3. The power cable of this LED underwater light can be customized.
4. This LED underwater light has very lighting effect for fountain lighting project.

Size

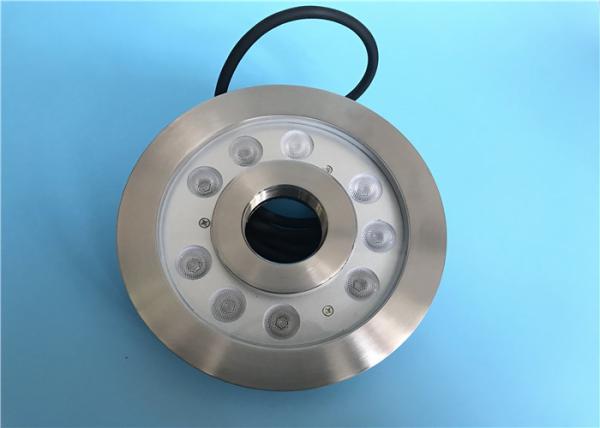

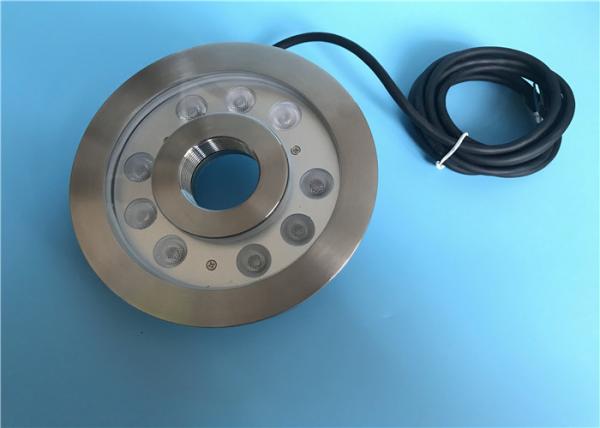

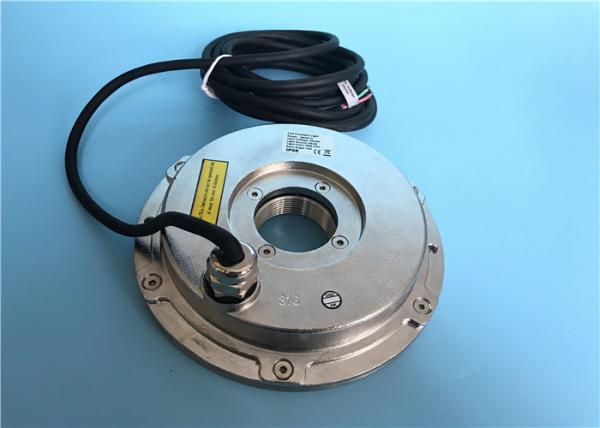

Photoes

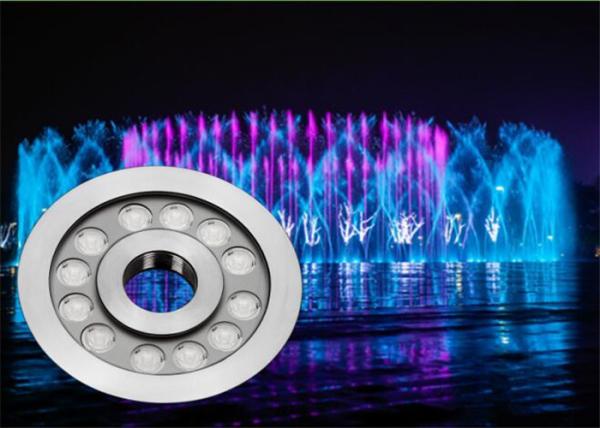

Application Scene
