24V LED Recessed Underwater Light For Concrete Floor With CE ROHS
24V LED Recessed Underwater Light For Concrete Floor With CE ROHS
24V LED Recessed Underwater Light For Concrete Floor With CE ROHS
24V LED Recessed Underwater Light For Concrete Floor With CE ROHS
24V LED Recessed Underwater Light For Concrete Floor With CE ROHS
24V LED Recessed Underwater Light For Concrete Floor With CE ROHS
24V LED Recessed Underwater Light For Concrete Floor With CE ROHS
24V LED Recessed Underwater Light For Concrete Floor With CE ROHS
Specifications
Brand Name :
A.L
Model Number :
AL-4TB
Certification :
CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
4pcs/CTN (49x25x28CM),Weight 12Kg
LED Type :
1W/3W CREE high power LED
Beam Angle :
25°
Material :
304/316 Stainless Steel
Installation :
Recessed
Voltage :
DC12/24V
Description

Recessed Fountain Light Underwater Lights Used For Concrete Floor With CE ROHS

Description

This high power LED fountain light use stainless steel SUS16L material,widely used in water fountain and underwater lighting.RGBW 4in1 and

RGB 3in1 with DMX512 have various color mixing,beautiful lighting effect can meet many kinds of lighting project requirements.

It can be installed recessed concrete floor,DC12/2V safe low voltage safe for people to touch.

Quick Details

  • Power:9W,27W,12W,36W
  • Volltage:DC12V/24V
  • IP Rating:IP68
  • Color:RGB 3in1 with DMX512,RGBW 4in1
  • Installation:Recessed
  • Warranty:3 years warranty

Specification

Model No. AL-4TB
Input Voltage DC12/24V
Power 9W;27W,12W,36W
Dimension Φ182mm x H64m
Color RGB 3in1 with DMX512
LED Chip CREE 1W/3W high power LED
LED Qty 9pcs,12pcs
Beam Angle 25°
Dimmable YES
IP Grade IP68
Weight 2.6Kg
Housing 316 Stainless Steel
Front Cover 316 Stainless Steel
Certification CE,RoHS
Warranty 2years
Packing Details
Carton Package Dimension 49*25*28CM
Carton Package Weight 12Kg
Carton Package Qty 4pcs

Material & Manufacturing Technique

Housing Molding shaped stainless steel sus316#.
Front cover Molding shaped stainless steel sus316#.
Gasket Silicone Gasket
Glass Step tempered galss,T=8mm
Cable gland IP68 PG-11 copper with nickel-coated.
LED CREE/OSRAM/EPISTAR High power LED
PCB Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
Driver

Constant current output

Single color LED=2-circuit output

RGB 3in1 LED=6-circuit output
Power cable

H07RN-F 2x1.0m² L=3m(for single color)

H07RN-F 4x1.0m² L=3m(for RGB)

Model Number Infos

Model No. Color Voltage Power
AL-4TB0902 Red/Green/Blue/Yellow/White/WW/CW 12V/24VDC 9 x 2W
AL-4TB0904 RGB 12V/24VDC 9 x 3W
AL-4TB0905 RGB 3in1 12V/24VDC 9 x 3W
AL-4TB0905M RGB 3in1 with DMX 12V/24VDC 9 x 3W
AL-4TB0907 RGBW 4in1 12V/24VDC 9 x 3W
AL-4TB1202 Red/Green/Blue/Yellow/White/WW/CW 12V/24VDC 12 x 2W
AL-4TB1204 RGB 12V/24VDC 12 x 3W
AL-4TB1205 RGB 3in1 12V/24VDC 12 x 3W
AL-4TB1205M RGB 3in1 with DMX 12V/24VDC 12 x 3W

Products Advantage

  1. Quality:SUS 316 stainless steel materials,good quality,2.6kg weight.Strong corrosion resistance.
  2. Reliable brand of LED:CREE/OSRAM/Epistar high power LED,long lifetime.
  3. DMX512:With built-in DMX512 decorder plate,can finish various color changing mode.
  4. 10MM thickness step tempered glass:strong bearing capacity.

Dimmable Support

  • Triac
  • PWM
  • 1-10V
  • DALI

Size

24V LED Recessed Underwater Light For Concrete Floor With CE ROHS

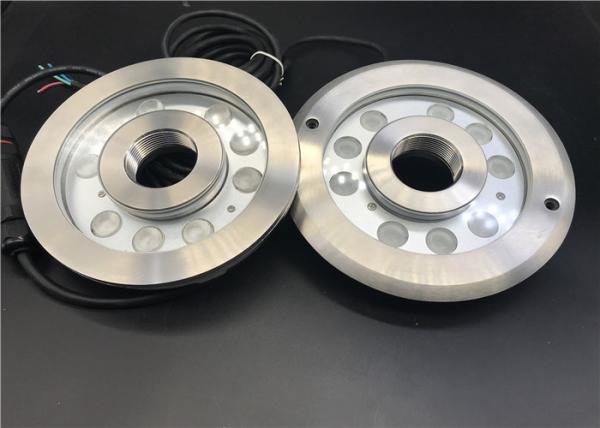

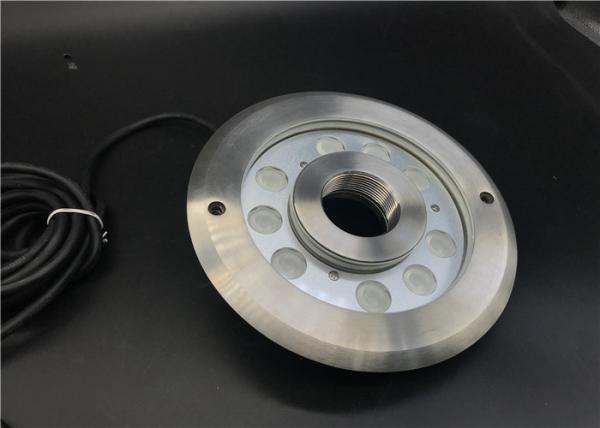

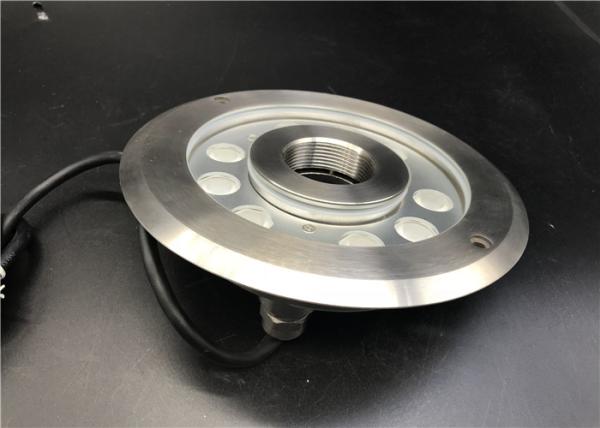

Photoes

24V LED Recessed Underwater Light For Concrete Floor With CE ROHS

24V LED Recessed Underwater Light For Concrete Floor With CE ROHS

Appliation

Fountains,aquariums,recreational facilities,floor,water landscapes,swimming pools,ponds,parks,squares,sidewalks,shopping mall,gardens,lawn,entertainment place,decoration underwater,park lake,water stage.etc.,

24V LED Recessed Underwater Light For Concrete Floor With CE ROHS

24V LED Recessed Underwater Light For Concrete Floor With CE ROHS
