Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V
Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V
Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V
Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V
Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V
Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V
Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V
Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V
Specifications
Brand Name :
A.L
Model Number :
AL-E2CD
Certification :
CE,ROHS
Place of Origin :
Guangdong,China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
8pcs/CTN (27x27x29CM),Weight 6Kg
Power :
1W,3W
Beam Angle :
30°
Input :
24V;120V;240V
Material :
316 Stainless Steel,Die-casting Aluminum
Cable Length :
0.6m or longer
Warranty :
Two years
Description

Four Ways Lighting LED Inground Lights With RGB 3in1 24VDC 120V 240V Voltage

Description

Special design for one/two/four ways side-emitting lighting ways,the light has very beautiful lighting effect,widely used in gardens,parks,and

squares lighting.2000K 3000K 4000K 6000K and RGB 3in1 color optional,more colors,more choices.

316 stainless steel front cover,the light will never rust,and die-casting aluminum housing,the light has excellent heat dissipation and long lifetime.

Technical Datas

Model No. AL-E2CD
Input Voltage 24V,120V,240V
Power 3W
Light Size Φ116mm x H70.5m
Sleeve Size Φ110mm x H102m
Color R/G/B/Y/Amber/W/CW/WW
Color Temperature 2700K~6500K
LED Chip CREE 1W/3W high power LED
LED Qty 6pcs
Beam Angle 15°/30°/45°/60°
Dimmable YES
IP Grade IP67
Weight 0.75Kg
Lighting Way Side Lighting
Housing Die-casting aluminum
Sleeve PVC
Carton Package Dimension 27 x 27 x 29CM/8pcs
Carton Package Weight 6Kg
Certification CE,RoHS
Warranty 2/3years

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Front cover:stainless steel sus316#.

Loading Capacity:>2000Kg

Cable gland:IP68 PG-11 copper with nickel-coated.

Gasket:Molding shaped silicone seal

Driver:Constant current output

Applicaation environment: -20℃-40℃

Power cable: H05RN-F 3x1.0mm² L=0.5M(High Voltage)

Mounting Sleeve:012PVC

Model Information

Model No. Color Power Lighting Way
AL-1E2CD Sigle Color 2W One-Side-Lighting
RGB 3in1 2W One-Side-Lighting
AL-2E2CD Sigle Color 2W Two-Side-Lighting
RGB 3in1 2W Two-Side-Lighting
AL-4E2CD Sigle Color 2W Four-Side-Lighting
RGB 3in1 2W Four-Side-Lighting

Competitive Advantage

1. 304/316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
2. R/G/B/Y/W/CW/WW/ color optional,meet different lighting design.
3. Low voltage 24V,high voltage 120V-240V optional.
4. One/Two/Four side-lighting,choose the most appropriate way to light the building.

Dimension

Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V

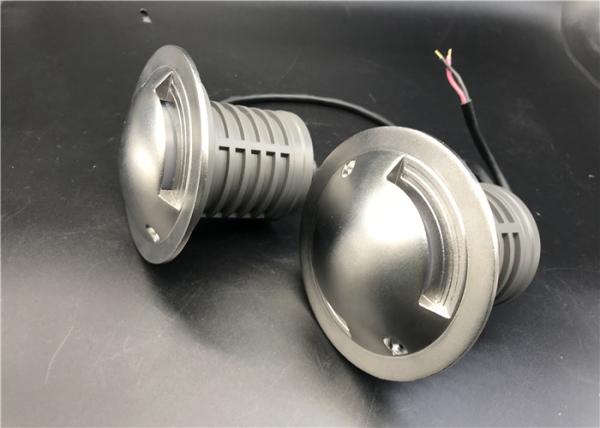

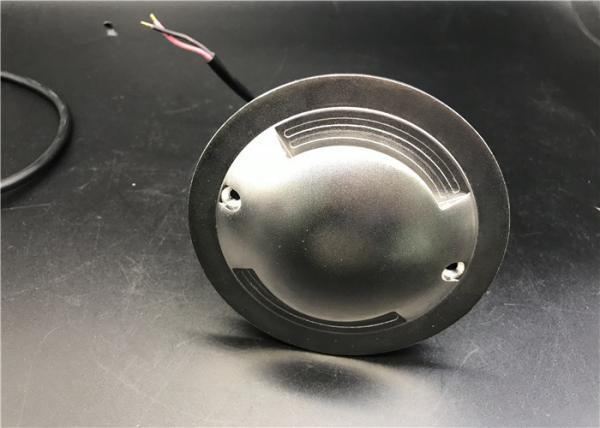

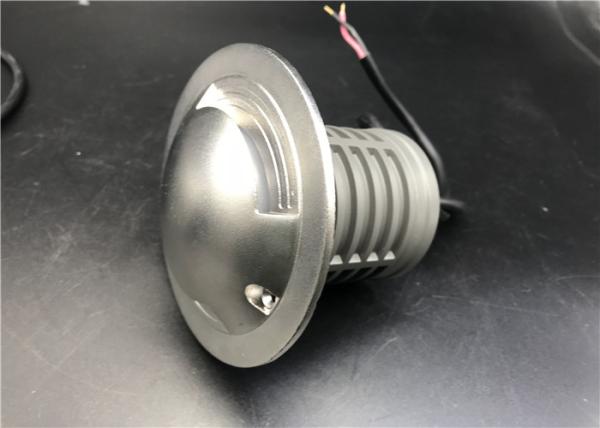

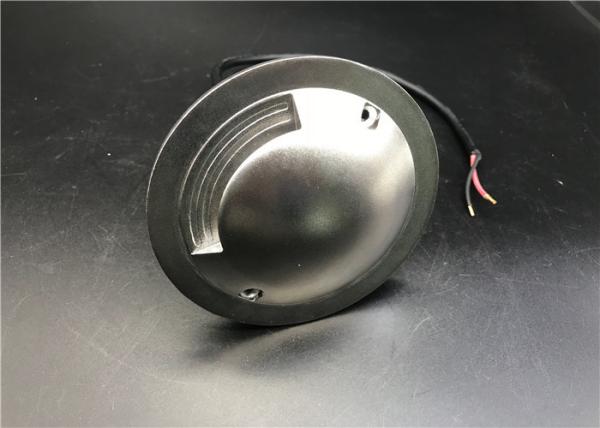

Side Lighting LED Underground Lights photo show

Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V

Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V

Application

LED Underground Light is widely used for decorative lighting in gardens, streets, square, villa, parks, lawns, supermarket, parking lots, exclusive stores, virescence places, tourist attractions and amusement places. They can make dynamic and beautiful scenes.

Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V

Four Ways Lighting LED Inground Lights With RGB 3 In 1 24VDC 120V 240V
