3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS
3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS
3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS
3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS
3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS
3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS
3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS
3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS
Specifications
Brand Name :
A.L
Model Number :
AL-5FL
Certification :
CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
Yellow Box,Yellow Carton
IP Grade :
IP68
Driver :
Built-in Constant Current Driver
Voltage :
DC24V
Warranty :
2 years
Bracket :
316 Stainless Steel
Product Name :
LED underwater light,linear light
LED Qty :
3PCS
Description

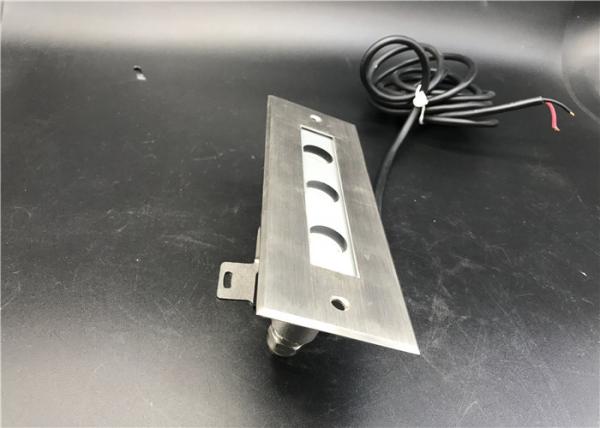

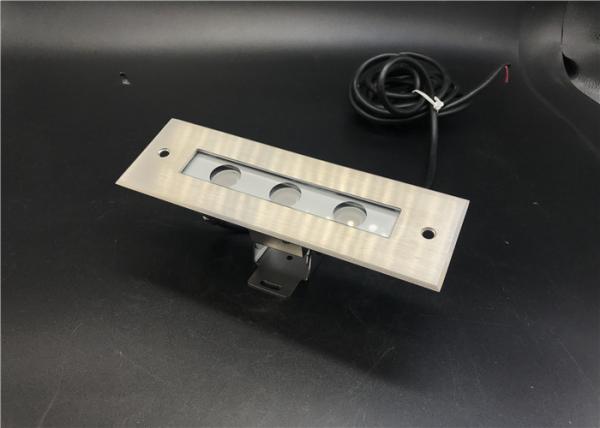

LED Underwater Light Linear Light With 3Pcs Cree High Power LED DC24V

Designed as linear bar type shape,this underwater light is widely used many kinds of water landscape lighting project.

Cree/Osram reliable brand LED as light source,long lifetime and stable performance.1.0mm² rubber power cable length.

You can choose the right lenth for your project design.


Parameters

Model No. AL-5FL
Input Voltage DC24V
Power 6W,9W
Dimension 195x63x65mm
Color Single Color/RGB 3in1/RGB 3in1 with DMX512
Color Temperature 2000K 3000K 4000K 6000K
LED Chip OSRAM,Epistar,CREE high power LED
LED Qty 3PCS
Beam Angle 15°/30°/45°/60°
Power Cable 3M
Dimmable YES
Light Angle Adjustable YES
IP Grade IP68
Weight 1.4Kg
Operating Temperature -20℃~40℃
Water Depth Less than 1m
Certification CE,RoHS
Warranty 2/3years



Features

1.Source: Epistar/Cree/Osram high power LED, bright and uniform light.
2.ROHS materials compliant, environmental friendly.
3.Opto LED symbiosis for peak lm.
4.316# stainless steel.
5.IP68, 100% waterproof. Can be put in the water.
6.8mm Tempered glass, able to bear huge pressure.
7.Durable Cable PG-11. With embered box and screw for easy installation.
8.CE, ROHS, IP68 approved


Material & Manufacturing Technique

Housing:Molding shaped stainless steel sus316#.
Front cover:Molding shaped stainless steel sus316#.
Bracket:Molding shaped stainless steel sus316#.
Glass:Tempered glass,T=7mm
Lens:Optional lens,efficiency ≥ 85%
Cable gland:IP68 PG-11 copper with nickel-coated.
LED:CREE COB LED
PCB:Excellent heat conductivity aluminum,coefficient of heat conductivity≥2.0w/mk
Driver:Constant current output,constant voltage input
Applicaation environment:Temperature of water between -20℃-40℃ less than 1m depth
Power cable:H05RN-F 2x1.0m² L=2m(for single color)
H05RN-F 4x0.75m² L=2m(for RGB)


Model Number Infos

Model No. Color LED Qty Voltage Power
AL-5FL0302 Single Color 3pcs 24VDC 3 x 2W
AL-5FL0305 RGB 3in1 3 x 3W
AL-5FL0305M RGB 3in1 With DMX 512 3 x 3W


Competitive Advantage

  1. Molding shaped stainless steel SUS316 for housing,front cover and bracket, whole light quality improved.
  2. Super brightness CREE OSRAM led as light source,save 85% than incandescent bulb.
  3. No UV,energy saving and environment protecting.
  4. High quality of PCB and housing material,excellent heat-dissipation,ensure products long lifetime.
  5. DMX512 intelligent control,more colors to light up your water porject.
  6. 2 years warranty,professional after-sale service.

Lens & Bracket

3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS


More Photoes

3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS

3Pcs Cree LED Underwater Linear Light With 3M Power Cable CE RoHS
