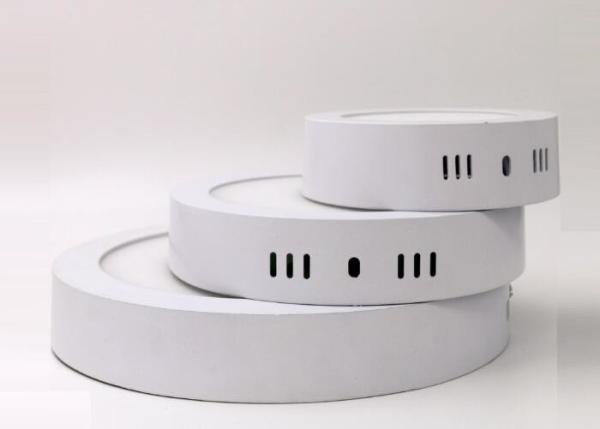

Surface Mounted LED Panel Light 300MM Diameter With 180 Degree Beam Angle
Surface Mounted LED Panel Light 300MM Diameter With 180 Degree Beam Angle
Surface Mounted LED Panel Light 300MM Diameter With 180 Degree Beam Angle
Surface Mounted LED Panel Light 300MM Diameter With 180 Degree Beam Angle
Surface Mounted LED Panel Light 300MM Diameter With 180 Degree Beam Angle
Surface Mounted LED Panel Light 300MM Diameter With 180 Degree Beam Angle
Specifications
Brand Name :
A.L
Model Number :
AL-SM2835R-24W
Certification :
CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
20,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
Color box
Power: :
18W
Diameter: :
Φ 300mm / 11.8”
Voltage: :
AC90V - 265V
Lumen: :
2400lm
Color: :
Warm White / White / Cold White
Warranty: :
2 & 3 Yeas
Description

300MM Diameter 24W AC90V - 265V High CRI Round Surface Mounted LED Panel Light 2835SMD

Quick Details

  1. Input Voltage:AC90-265V
  2. Lamp Diameter:φ300mm / 11.8"
  3. Luminous Flux:90 ~ 100 lm/W
  4. CRI > 80Ra
  5. Color:Warm White /Nature White / Cold White

Technical Datas

Model No. AL-SM2835R-24W
Input Voltage AC90-265V
Power 24W
Lumen 2400lm
Dimension 300mm / 11.8inch
Color Temperature 3000k / 4000k / 6500K
LED Chip Taiwan Epistar,2835SMD
CRI Ra > 80
LED Qty 120pcs
PF >0.92
Lifetime 4000H
Beam Angle 180degree
Housing Color White
Housing Material Die-casting Aluminum
Operation Temperature -200C ~400C
Dimmable NO
IP Grade IP20
Installation Surface Mounted
Single Package Dimension
Single Package Weight
Shape Round
Certification CE,RoHS
Warranty 2 years

Material & Structure

LED Chip Imported 2835 high brightness LED,high CRI,long lifetime.
Radiator Integrative die-casting aluminum,with streak on the housing,good heat dissipation.
Diffuser Plate High light transmission,light is uniform and soft,can protect your eyes.
Light Guide Plate Professional optical LGP,light is uniform,and no dark area.
Reflective Sheeting Reflective rate > 95%.
Base Board Aviation aluminum,good heat dissipation,no deformation.
Connector Male and female plug,easy and safe installation
Cable Wire Red copper ,with PC insulating layer,high temperature resistant,safe for using,
Driver Intelligent constant current isolated driver,safe and reliable.

Installation

Surface Mounted LED Panel Light 300MM Diameter With 180 Degree Beam Angle

Product Advantage

  1. Energy saving, 90% than traditional light.
  2. Ultra-bright,,SMD2835 ,uniform light.
  3. Aircraft Aluminum, efficient heat dissipation.
  4. Low light decay, IC constant driver, long lifespan 50000 hours.
  5. Ultra Thin,Easy to Install .

Our Service

  1. You will get what you pay for and more.
  2. Customer’s opinion always comes first.
  3. Good after-sale service including technical guide.
  4. Strong package for each item.
  5. Discounts can be offered base on the adequate quantity.

24W Surface Mounted LED Panel Light Photo Show

Surface Mounted LED Panel Light 300MM Diameter With 180 Degree Beam Angle

Surface Mounted LED Panel Light 300MM Diameter With 180 Degree Beam Angle
