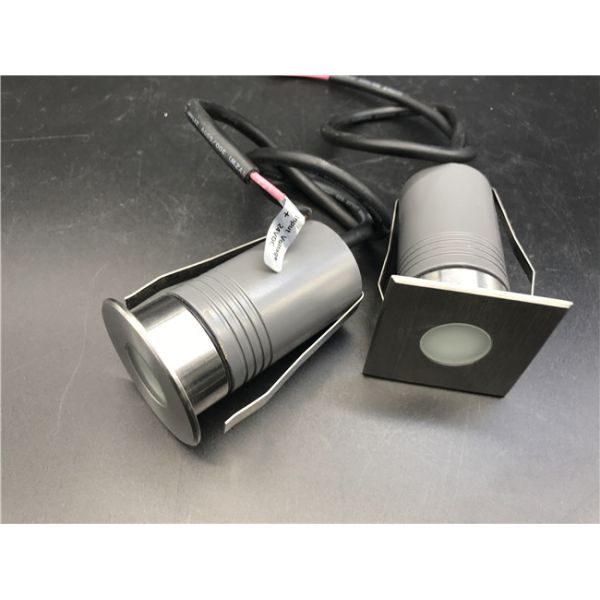

IP67 Waterproof LED Underground Lights With 316 Stainless Steel Square Shape


Description

Designed with front and square shape front cover,the light can show two shapes to meet your different types of lighting projects.

Asymmetrical and symmetrical and surface type can give you different kinds of lighting effect.

Single color and RGB 3in1 color optioanl,more colors for choosing.


Technical Datas

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Lens:Optical lens,efficiency≥85%
Gasket:Molding shaped silicone seal
Glass:Step tempered galss,T=8mm
Cable gland:IP68 PG-9 copper with nickel-coated.
LED:High power LED
Loading capacity:Exert force area of Φ10=1330Kgs
Applicaation environment: -20℃-40℃
Power cable:24VDC low voltage: H05RN-F 2x1.0mm² L=0.5M
Main voltage:H05RN-F 3x1.0mm² L=0.5M
RGB 24VDC:H05RN-F 4x0.75mm² L=0.5M
Mounting Sleeve:Black ABS


Model Number Information

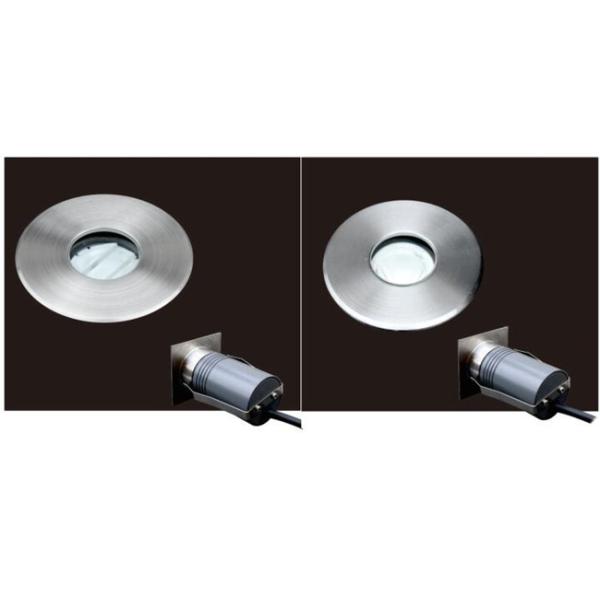

R:Round shape front cover
S:Square shape front cover

C:Asymmetrial lens

D:Surface type

Competitive

• 316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
• Single color/RGB 3in1/RGBW 4in1/RGB 3in1 DMX512,various colors optional.
• Low voltage 12V 24V,high voltage 120V-240V optional.
• Symmetrical & Asymmetrical lens optional,surface lighting effect.
• Two years warranty.

Size




Asymmetrical and Symetrical Lens




Common Lens Unsymmetrical Lens Surface

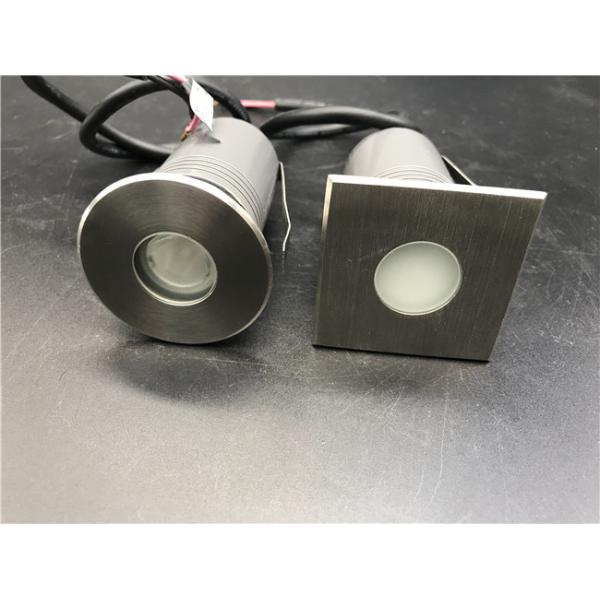

Products Photoes

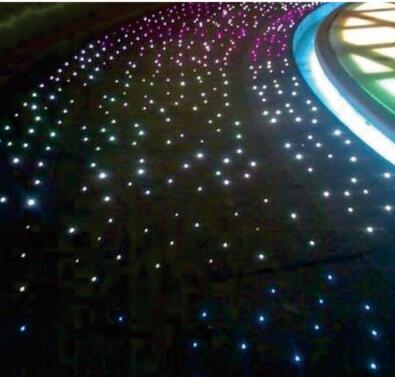

Application

Tag

LED underground light,LED inground light,LED buried light,stainless steel underground light,LED step light,LED outdoor light,LED garden light.
