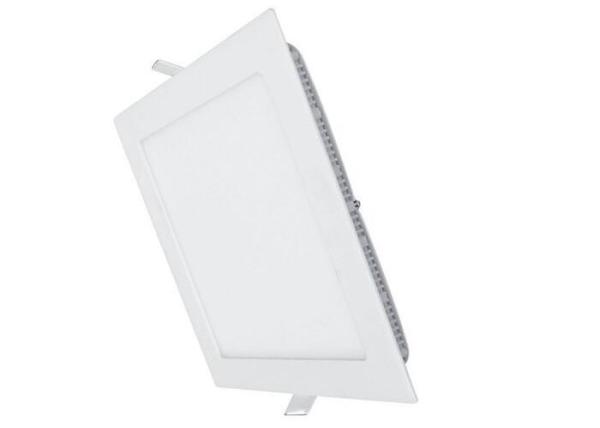

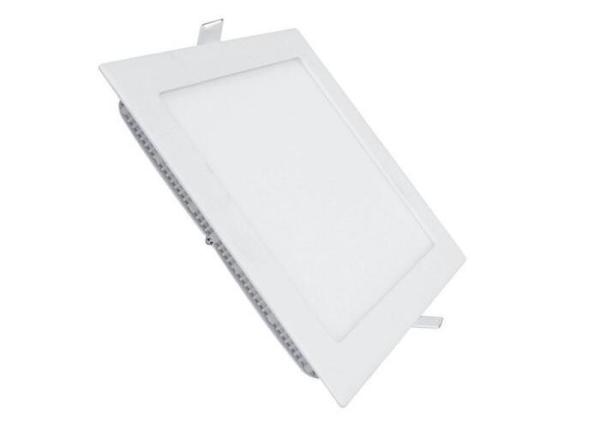

High Brightness LED Recessed Panel Light 24 Watt With Modern Decorating Style
High Brightness LED Recessed Panel Light 24 Watt With Modern Decorating Style
High Brightness LED Recessed Panel Light 24 Watt With Modern Decorating Style
High Brightness LED Recessed Panel Light 24 Watt With Modern Decorating Style
High Brightness LED Recessed Panel Light 24 Watt With Modern Decorating Style
High Brightness LED Recessed Panel Light 24 Watt With Modern Decorating Style
Specifications
Brand Name :
A.L
Model Number :
AL-SP2835-24W
Certification :
CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
20,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
Color box
Power :
24W
Cut-out :
280x 280MM
IP Grade :
IP20
LED Type :
2835 SMD LED
Driver :
External
Connect type :
Male Female Plug
Description


24W Square Shape 2835SMD LED Recessed Panel Light Ceiling Light


Quick Details

---Power:24W
---Input Voltage:AC90-265V
---Cuting Size:280x 280MM
---Luminous Flux:90 ~ 100 lm/W
---Color:Warm White /Nature White / Cold White
---Warranty:Two years


Product Parameters

Model No.AL-SP2835-24W
Input VoltageAC90-265V
Power24W
Lumen1920lm
CRIRa>80
Light Size300 x 300MM
Cut Size280 x 280MM
Color Temperature3000K / 4000K / 6500K
LED ChipTaiwan Epistar,2835SMD
LED Qty120pcs
PF>0.92
Lifetime4000H
Beam Angle180degree
Housing ColorWhite
Housing MaterialAluminum Die-casting
Light Guide PlatePMMA
Operation Temperature-200C ~400C
DimmableNO
IP GradeIP20
Single Package Dimension
Single Package Weight
ShapeSquare
CertificationCE,RoHS
Warranty2 years


Features

  • Low power consumption assure optimum brightness.
  • Uniform distribution of light with high efficiency.
  • Consume 24 watt power for lightening.
  • Sleek and trendy design as well.



Description
1. Product variety:Dimmable,white color & RGB,3 ways installation,round & square shape,customized LED
panel lights are avaliable for your choice.
2. Modern appearance design:Perfect combination for lighting and decoration.
3. Flexible application:Wall and ceiling application.
4. Excellent lighting effect:Soft and uniform light,no dark area,no flicker,eyes-protect.
5. Energy saving: 60% energy-saving with higher luminous efficiency than the traditional lights.
6. Longer lifespan: excellent thermal management and refined alumimum lengthen lifetime up to 40.000
hours.


Product Structure

LED ChipImported 2835 high brightness LED,high CRI,long lifetime.
RadiatorIntegrative die-casting aluminum,with streak on the housing,good heat dissipation.
Diffuser PlateHigh light transmission,light is uniform and soft,can protect your eyes.
Light Guide PlateProfessional optical LGP,light is uniform,and no dark area.
Reflective SheetingReflective rate > 95%.
Base BoardAviation aluminum,good heat dissipation,no deformation.
ConnectorMale and female plug,easy and safe installation
Cable WireRed copper ,with PC insulating layer,high temperature resistant,safe for using,
DriverIntelligent constant current isolated driver,safe and reliable.



Competitive Advantage

1. Ultra-thin flat panel design, accord with modern decoration style.
2. Imported PMMA light guide plate,make uniform and soft light,protect your eyes.
3. Superior quality aviation aluminum die-casting light body,good heat dissipation and beautiful
appearance,light weight.
4. High brightness 2835SMD LED chip,high CRI,long lifetime.
5. Intelligent IC constant current driver,safe and durable.
6. Enegry-saving,high efficiency,non-UV light source.


Application

1. Home lighting:Living room,bedroom,study,bathroom,kitchen,aisle passage.
2. Commercial lighting:Super maket,shopping mall,hospital,hotel,stores,airport,station,office building.
3. Industrial Lighting:Factory workshop,warehouse,showroom,meeting room,laboratory room
4. Some other places.


Tag

Recessed LED Panel Light,LED Panel Light,LED Ceiling Light,Square LED Panel Light

Installation

High Brightness LED Recessed Panel Light 24 Watt With Modern Decorating Style


Aging Test

High Brightness LED Recessed Panel Light 24 Watt With Modern Decorating Style
