7.5 Inch LED Recessed Panel Light 2835 SMD With High Temperature Oxidation Treatment
7.5 Inch LED Recessed Panel Light 2835 SMD With High Temperature Oxidation Treatment
7.5 Inch LED Recessed Panel Light 2835 SMD With High Temperature Oxidation Treatment
7.5 Inch LED Recessed Panel Light 2835 SMD With High Temperature Oxidation Treatment
7.5 Inch LED Recessed Panel Light 2835 SMD With High Temperature Oxidation Treatment
7.5 Inch LED Recessed Panel Light 2835 SMD With High Temperature Oxidation Treatment
Specifications
Brand Name :
A.L
Model Number :
AL-RP2835-15W
Certification :
CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
20,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
Color box
Power :
15W
Diameter :
7.5Inch / 190mm
Housing Color :
White
Material :
Aluminum Die-casting
IP Grade :
IP20
LED Type :
SMD 2835 LED
Description

15W 7.5 Inch 2835SMD LED Recessed Panel Light For Commercial Lighting

Quick Details

---Power:15W

---Input Voltage:AC90-265V

---Cuting Diameter:φ175mm / 7"

---Luminous Flux:90 ~ 100 lm/W

---Color:Warm White /Nature White / Cold White

---Warranty:Two years

Technical Datas

Model No. AL-RP2835-15W
Input Voltage AC90-265V
Power 15W
Lumen 1350lm
Dimension 190mm / 7.5inch
Cut Dimension 175mm / 7inch
Color Temperature 3000-6500K
LED Chip Taiwan Epistar,2835SMD
PF >0.92
Lifetime 4000H
Beam Angle 180degree
Housing Color White
Housing Material Aluminum Die-casting
Operation Temperature -200C ~400C
Dimmable NO
IP Grade IP20
Single Package Dimension
Single Package Weight
Shape Round
Certification CE,RoHS
Warranty 2 years

Material & Structure

LED Chip Imported 2835 high brightness LED,high CRI,long lifetime.
Radiator Integrative die-casting aluminum,with streak on the housing,good heat dissipation.
Diffuser Plate High light transmission,light is uniform and soft,can protect your eyes.
Light Guide Plate Professional optical LGP,light is uniform,and no dark area.
Reflective Sheeting Reflective rate > 95%.
Base Board Aviation aluminum,good heat dissipation,no deformation.
Connector Male and female plug,easy and safe installation
Cable Wire Red copper ,with PC insulating layer,high temperature resistant,safe for using,
Driver Intelligent constant current isolated driver,safe and reliable.

Product Features

  • Ultra thin design,let the Panel exactly Embedded the ceiling, makes the ceiling flat!Not just light,also a part of the building!
  • Wide input voltage:AC85-265V,50000hours lifespan,more than 5 years market testing mature and stable product.
  • CE & RoHS safety certification.2-3 years high quality guarantee.
  • Profession and responsible factory,large qty production everyday,stable quality,experienced production & after-sales service,and good price.

Competitive Advantage

1. Aviation aluminum die-casting,high-temperature oxidation treatment,good heat-dissipation,never fade.

2. Safe intelligent IC isolated driver.

3. All products pass CE and RoHS certification.

4. Nano PMMA light guide plate keeps high light transmittance,uniform and soft light,no dark space.

5. No Flash,protect your eyes.

6. Energy-saving.15W lamp light for 83 days consume 1kW/h.

7. Long lifespan,40,000H.

Warning Note:

1) Please make sure that power is off during the whole installation procedure.

2) Please make sure the connecting voltage is AC90-265V,and don't exceed the working voltage range.

3) This lamp has to be installed for indoor,please don't light for outdoor lighting.

Our Service


1. Professional person communicate with you before the order.

2. OEM&ODM, also provide customized service.

3. Distributoership are offered for your unique design and some our current model.

4. Protection of your sales area, ideas of design and all your private information.

5. Provide strict quality check for each part,each process before export.

6. Provide complete post-sale service,including installation,technical guide.

Tag:

LED flat panel light,ultrathin led ceiling light,led recessed panel light,round recessed led panel light

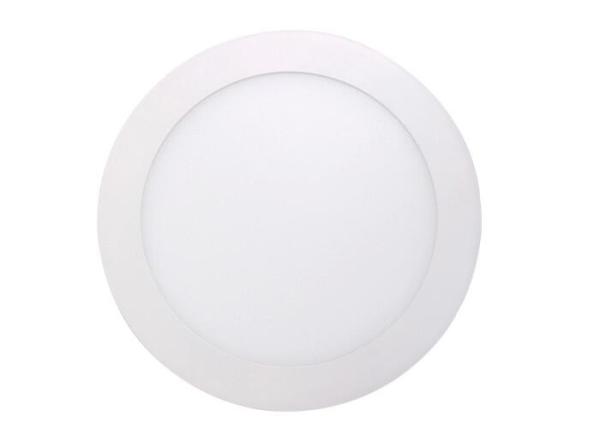

15W Round Recessed Panel Light Photo Show
