High Density And Brightness COB LED Strip Lights With 180 Degree Beam Angle
High Density And Brightness COB LED Strip Lights With 180 Degree Beam Angle
High Density And Brightness COB LED Strip Lights With 180 Degree Beam Angle
High Density And Brightness COB LED Strip Lights With 180 Degree Beam Angle
High Density And Brightness COB LED Strip Lights With 180 Degree Beam Angle
High Density And Brightness COB LED Strip Lights With 180 Degree Beam Angle
High Density And Brightness COB LED Strip Lights With 180 Degree Beam Angle
High Density And Brightness COB LED Strip Lights With 180 Degree Beam Angle
Specifications
Brand Name :
A.L
Model Number :
AL-SL-D
Certification :
UL,CE,RoHS
Place of Origin :
Guangdong,China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
40,000meters per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
5m per reel,5m packed in one anti-static bag, 80bags / 1 CTN(52x31x30CM)
FPC Width :
10mm
Input :
12V;24V
IP Grade :
IP68
LED Type :
COB LED
Length :
5m/Reel
Warranty :
Two years
Description


High Density and Brightness COB LED Flexible Strip Lights With 180degree Beam Angle


Quick Details

  • Strip Type:COB LED flexible strip light
  • Length:5M
  • Color:Warm white/Natural White/Cold White/R/G/B
  • Color Temperature:2700K/3000K/4000K/6000K
  • Beam Angle:180 degree


Features

  • Fluorescent glue material with COB package technology,without any led supported,only led chip emitting,better heat-resistance PCB.
  • High density and high brightness and long lifetime,no dark area.
  • 180degree beam angle,better lighting effect.
  • More flexible and easy to install with 3M glue tape.


Technical Datas

Model No.

AL-SL-D
Input Voltage DC12/24V
Power 14W/m
Length 5m
CRI Ra>80,Ra>90
Lumen 100lm/W
Color Temperature 2700K~6000K
LED Chip COB
Color WW/NW/CW/R/G/B
Beam Angle 180degree
Operation Temperature -250C ~550C
FPC Color White
Carton Package Dimension 52*31*30CM
Carton Package Qty 80reel
Certification CE,RoHS
Warranty 2years



Models Optional

Model Number LED Qty Power FPC Width Lumen Min.cut
AL-SL-D378 378pcs/m 14W/m 10mm 1450-1900lm 55.55mm
AL-SL-D504 504pcs/m 14W/m 10mm 1400-1600lm 41.67mm
AL-SL-D640 640pcs/m 14W/m 10mm 1400-1800lm 25mm

Photoes

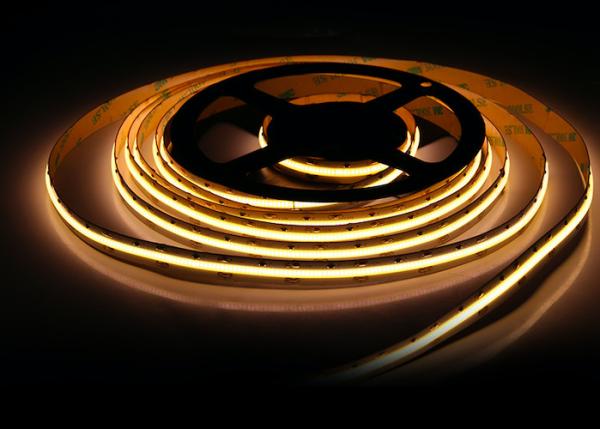

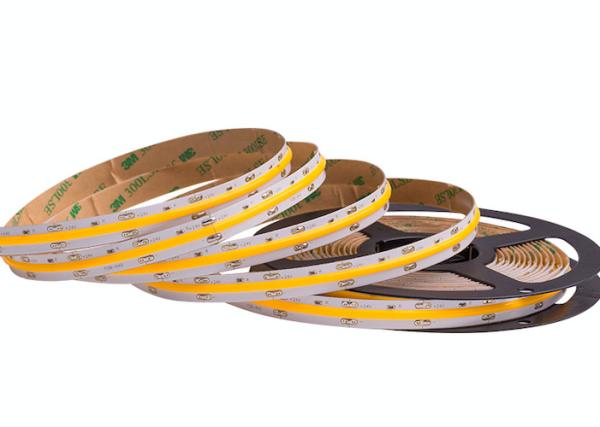

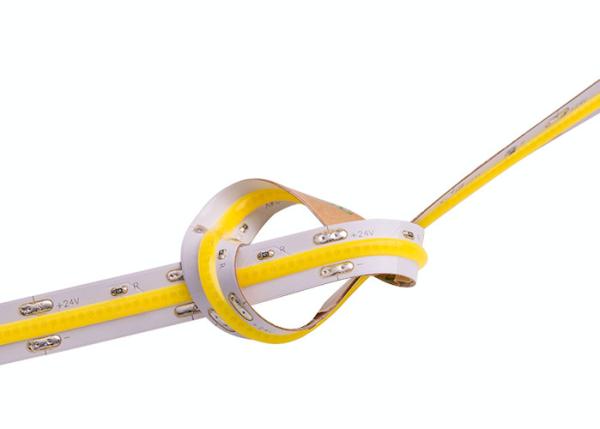

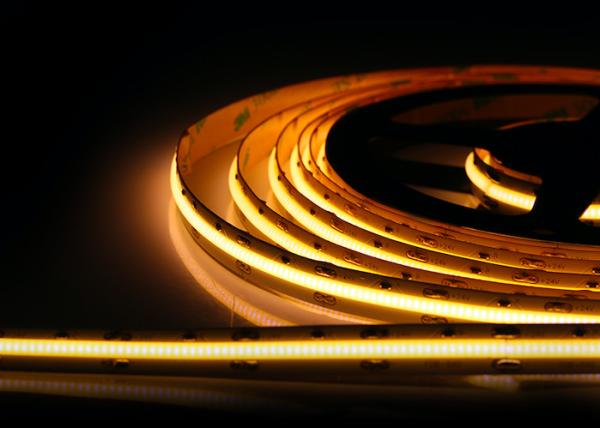

High Density And Brightness COB LED Strip Lights With 180 Degree Beam Angle

Application

  • City skyline lighting villas advertising wall signs chrimas,decorative landscape
  • Irregular design of body decoration
  • Establishments ceiling cavity design
  • Public lighting
  • Furniture dark groove trim
  • Automotive beauty

Note

  • Please read the spefication and precautions carefuly before installation.
  • Please don't use nail or sharp instruments to install led strip on the object.
  • Fixed led strip,you can not use acidic glue,it's recommended to use a neutral glue.
