CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle
CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle
CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle
CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle
CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle
CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle
CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle
CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle
Specifications
Brand Name :
A.L
Model Number :
AL-2ADE
Certification :
CE ROHS
Place of Origin :
Guangdong,China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
7pcs/CTN (27x27x29CM),Weight 8Kg
Light Source :
1pcs CREE 9W COB LED
Voltage :
24VDC,240VAC
LED Type :
LED Inground Light,LED Well Light
Color Temperature :
2700K/3000K/4000K/6000K
IP Grade :
IP67
Dimmable :
PWM,DALI,0-10V,Triac
Material :
316 stainless steel+aluminum
Beam Angle :
15/25/36/60 degree
Warranty :
2 Years
Description

CREE COB 9W LED Inground Light With DMX512 And PWM Control , 2 Years Warranty

Quick Details

  • Power:1x9W
  • Voltage:12V,24V,120V,240V
  • Color:R/G/B/Y/RGB 3in1/WW/CW/W
  • Light Size:Φ116mm x H100mm
  • Material:316 stainless steel + Die-casting aluminum
  • Cover Shape:Round and Square

Technical Datas

Model No. AL-2ADE
Input Voltage 12V,24V,120V,240V
Power 1x9W
Light Size Φ116mm x H100m
Sleeve Size Φ102mm x H150m
Color Single Color
Color Temperature 2700K~6500K
LED Chip 2835 SMD LED
LED Qty 15pcs
Beam Angle 15/25/38/60°
Dimmable YES
IP Grade IP67
Weight 1.14Kg
Front Cover 316 Stainless Steel
Housing Die-casting aluminum
Sleeve ABS
Carton Package Dimension 27 x 27 x 29CM/8pcs
Carton Package Weight 7Kg
Certification CE,RoHS
Warranty 2/3years

Material & Manufacturing Technique

Housing: 12# Die-casting grey powder coated aluminum
Front cover: stainless steel sus316#.
Seal ring: Silicone waterproof ring
Glass: Ultra-white transparent tempered glass,T=8mm
Reflection cup: PC plastic,light transmittance>93%
Driver: Wide voltage input,constant current output
Power cable:

Rubber power cord H05RN-F 2x1.0mm2 L=0.6M(Low Voltage)

Rubber power cord H05RN-F 3x0.75mm2 L=0.6M(HIgh Voltage)
Embedded parts: ABS black plastic
Applicaation environment: -20℃-40℃
Warranty: 2 years

Model Information

Model No. Color Power Cover Shape
AL-2ADES W/WW/CW/R/G/B/Y 1 x 9W Square
AL-2ADER W/WW/CW/R/G/B/Y 1 x 9W Round

Features

  • Die-casting aluminum housing,excellent heat dissipation.
  • 316 stainless steel front cover,erosion-resisting,durable and beautiful to look.
  • 120-240V high voltage optional,don't need power transformer.
  • PWM,0-10V,Triac and DALI dimmable optional.
  • DMX512 control type,can finish large building lighting system.
  • CREE COB LED,reliable LED,good lighting effect and long lifetime.

Size

CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle

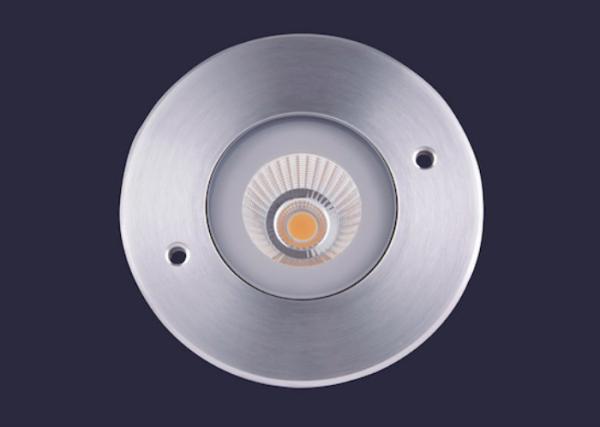

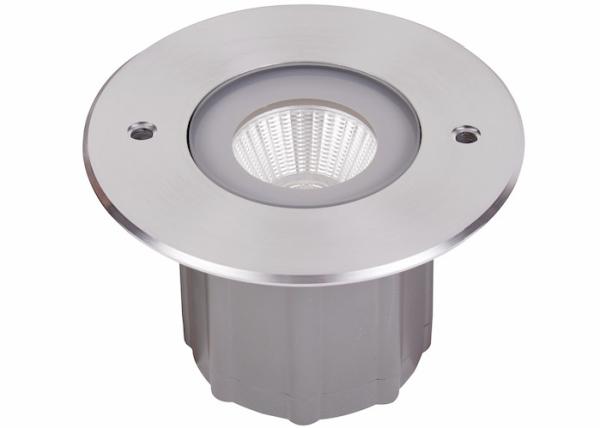

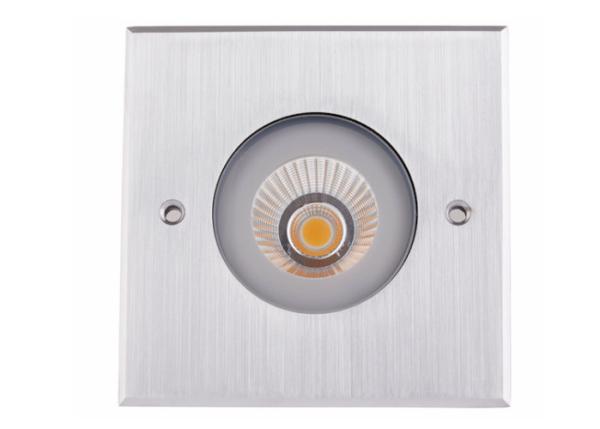

Photoes

CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle

CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle

Application

Park,garden,square,road,path,stair

CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle

CREE COB 9Watt LED Inground Light With PWM Control 3000K 36 Degree Beam Angle
