IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden
IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden
IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden
IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden
IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden
IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden
IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden
IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden
Specifications
Brand Name :
A.L
Model Number :
AL-2ADD
Certification :
CE ROHS
Place of Origin :
Guangdong,China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2,000pcs per day
Delivery Time :
Sample and small order 2-4workdays,bulk order 8-12 workdays
Packaging Details :
7pcs/CTN (27x27x29CM),Weight 8Kg
Light Source :
15pcs 2835 SMD LED
Voltage :
12/24VDC,120-240VAC
LED Type :
LED Inground Light,LED Well Light
Color Temperature :
2000K/2700K/3000K/4000K/6000K
IP Grade :
IP67
Dimmable :
PWM,DALI,0-10V,Triac
Material :
316 stainless steel+aluminum
Beam Angle :
120 degree
Warranty :
2 Years
Description

IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden

Quick Details

  • Power:12x0.2W
  • Voltage:12V,24V,120V,240V
  • Color:R/G/B/Y/RGB 3in1/WW/CW/W
  • Light Size:Φ116mm x H100mm
  • Material:316 stainless steel + Die-casting aluminum
  • Warranty:Two years

Technical Datas

Model No. AL-2ADD
Input Voltage 12V,24V,120V,240V
Power 15x0.2W
Light Size Φ116mm x H100m
Sleeve Size Φ102mm x H150m
Color R/G/B/Y/RGB 3in1/Amber/W/CW/WW
Color Temperature 2700K~6500K
LED Chip 2835 SMD LED
LED Qty 15pcs
Beam Angle 120°
Dimmable YES
IP Grade IP67
Weight 1.14Kg
Front Cover 316 Stainless Steel
Housing Die-casting aluminum
Sleeve ABS
Carton Package Dimension 27 x 27 x 29CM/8pcs
Carton Package Weight 7Kg
Certification CE,RoHS
Warranty 2/3years

Material & Manufacturing Technique

Housing:12# Die-casting grey powder coated aluminum

Front cover:stainless steel sus316#.

Lens:Asymmetrical and symmetrical optical lens,efficiency≥85%

Gasket:Molding shaped silicone seal

Glass:Step tempered galss,T=8mm

Cable gland:IP67 PG-9 plastic.

LED:2835SMD LED

Loading capacity:Exert force area of Φ10=1330Kgs, Φ30=1840Kgs

Applicaation environment: -20℃-40℃

Power cable:24VDC low voltage:

H05RN-F 2x1.0mm² L=0.6M

Main voltage:

H05RN-F 3x0.75mm² L=0.6M

RGB 24VDC

H05RN-F 4x0.75mm² L=0.6M

Control:PWM factory default control type,DMX512 optional control type.

Model Information

Model No. Color Power
AL-2ADD W/WW/CW/R/G/B/Y 15 x 0.2W

Competitive Advantage

  • Die-casting aluminum housing,excellent heat dissipation.
  • 316 stainless steel front cover,erosion-resisting,durable and beautiful to look.
  • 120-240V high voltage optional,don't need power transformer.
  • PWM,0-10V,Triac and DALI dimmable optional.
  • DMX512 control type,can finish large building lighting system.
  • Light with light guide plate,soft and uniform lighting effect.

Size

IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden

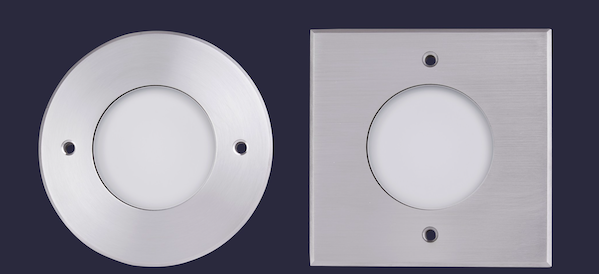

Photoes

IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden

IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden

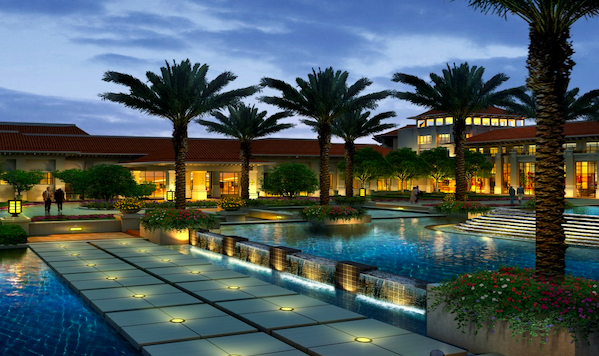

Application

Park,garden,square,road,path,stair

IP67 Waterproof Inground LED Lights 120 Degree Beam Angle 2700K For Garden

Tag

LED underground lights,LED inground lights,LED step lights,LED stair lights,LED well light,LED lawn light,LED up-light
