WLL 2000KG ,Double ply polyester webbing sling / lifting sling with reinforced lifting eyes,
WLL 2000KG ,Double ply polyester webbing sling / lifting sling with reinforced lifting eyes,
WLL 2000KG ,Double ply polyester webbing sling / lifting sling with reinforced lifting eyes,
WLL 2000KG ,Double ply polyester webbing sling / lifting sling with reinforced lifting eyes,
WLL 2000KG ,Double ply polyester webbing sling / lifting sling with reinforced lifting eyes,
WLL 2000KG ,Double ply polyester webbing sling / lifting sling with reinforced lifting eyes,
WLL 2000KG ,Double ply polyester webbing sling / lifting sling with reinforced lifting eyes,
WLL 2000KG ,Double ply polyester webbing sling / lifting sling with reinforced lifting eyes,
Specifications
Brand Name :
dlt-sling
Model Number :
RS 8t
Certification :
CE,GS ,CCS,TUV
Place of Origin :
NANJING
MOQ :
100
Price :
Price is negotiable
Payment Terms :
L/C, T/T, D/A
Supply Ability :
5-6 container/month
Delivery Time :
25-35days per 20'container
Packaging Details :
shrink package, Box, pallet
Material :
100% polyester
Standard :
Conformaity EC Council Direcive 2006/42/EC Machinery
Safety factor :
6:1 , 7:1
Color :
standard requirment
certificate :
TUV ,CE,GS
Work Length: :
1m-100m
Description

Double ply polyester webbing sling / lifting sling with reinforced lifting eyes:
Material: High tenacity 100% Polyester / Nylon
Safety Factor:5:1, 6:1, 7:1, 8:1
Certificate:CE/GS
Length: As required Color: Color code
Layers: One layer to four layers
Standard: ISO4878, EN1492-1, ASME B30.9, AS1353
Characteristic: PU impregnated ,WLL & Length printed,Low elongation
Package:Single packed in shrinking foil or plastic with Certificate of Conformity

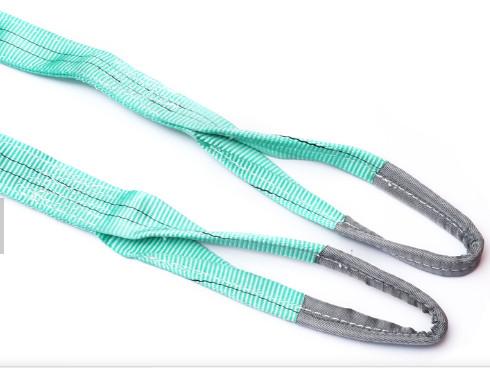

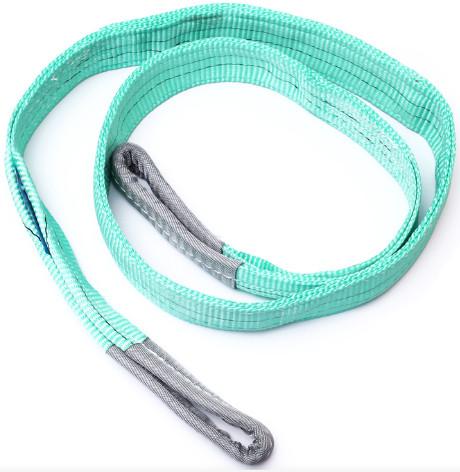

Eye-Eye webbing sling is made from high tenacity 100% polyester webbing with reinforced eye loops at both ends.It can be made from one layer to four layers,which we usually call Simplex webbing sling,Duplex webbing sling,Triplex webbing sling and Quadraplex.And the eyes can be made into Flat eyes,Twisted eyes,and Reversed eyes.Eye-eye webbing slings are versatile as they can be used in choker, vertical, or basket hitches.Polyester fabric has low elongation, so it's better able to hold the load without the risk of shocking.OEM service is also available.


Product Name		 polyester webbing sling
Material 100% high tenacity polyester
Width 25mm,30mm,50mm,60mm,75mm,90mm,100mm,125mm,150mm
180mm,200mm,240mm,250mm,300mm
Length from 1m to 20,can be customized as require m up
W.L.L. From 1Ton to 12 Ton or up
Safety Factor 4:1,5:1,6:1,7:1,8:1 (AS 1353.1) all available
Layer 2 ply
Color According to EN standard or as required
Standard According to Machinery Directive 2006/42/EC and EN1492-1:2008+A1
Elongation >=7%
Lifting Eye types 1.Flat Eye
2.Reversed Eye
3.Folded Eye 1/2 Width from 1 Side
4.Folded Eye 1/2 width from 2 sides
5.Folded Eye 1/3 width
Remark:all above 5 lifting eye types are available.

Please let us know the following information before we could offer price:
1. Capacity of webbing sling
2. Length of sling
3. Your estimated quantity
4. Safety Factor

Conformity EC Council Direcive 2006/42/EC Machinery

S.F 6:1 7:1 8:1
WLL(kg) Stock No Width M.B.S Stock No Width M.B.S Stock No Width M.B.S
1000 EE 6010 25/38mm 6t EE 7010 30/50mm 7t EE 8010 50mm 8t
2000 EE 6020 50mm 12t EE 7020 60mm 14t EE 8020 65mm 16t
3000 EE 6030 75mm 18t EE 7030 90mm 21t EE 8030 95mm 24t
4000 EE 6040 100mm 24t EE 7040 120mm 28t EE 8040 120mm 32t
5000 EE 6050 125mm 30t EE 7050 150mm 35t EE 8050 150mm 40t
6000 EE 6060 150mm 36t EE 7060 180mm 42t EE 8060 180m 48t
8000 EE 6080 200mm 48t EE 7080 240mm 56t EE 8080 240mm 64t
10000 EE 6100 250mm 60t EE 7100 300mm 70t EE 8100 300mm 80t
12000 EE 6120 300mm 72t EE 7120 300mm 84t / / /
MEMO JB/T8521.1 EN1492.1 AS1353
