Anti Flaming Aluminum Triplex Service Wire Heatproof Anti Corrosion

Specifications

Brand Name :

Model Number :

RVV

Certification :

CCC/CE

Place of Origin :

Zhejiang haiyan

MOQ :

2000meter

Payment Terms :

T/T

Delivery Time :

20~30 work days

Packaging Details :

Cartons and woven bags

color :

as your request

Conductor :

Copper Core

Insulation :

PVC Insulation Cable

Material :

PVC Copper

Size :

as your request

Description

High quality pure copper and aluminum wire overhead insulated cable is easy to bend, convenient to install and low cost

Introduction:

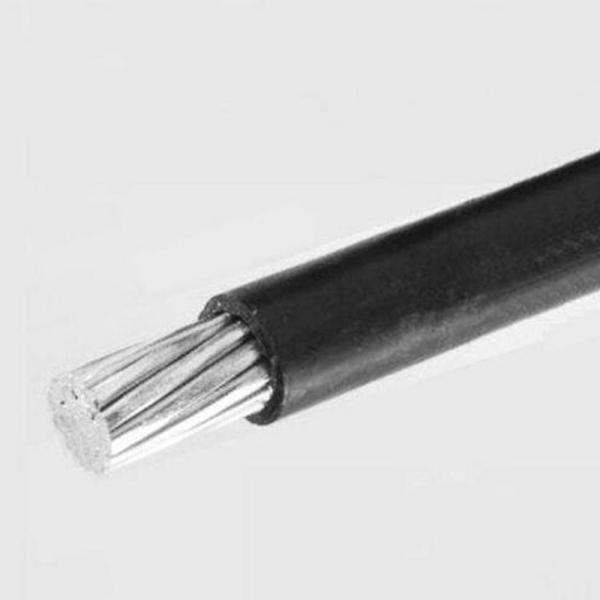

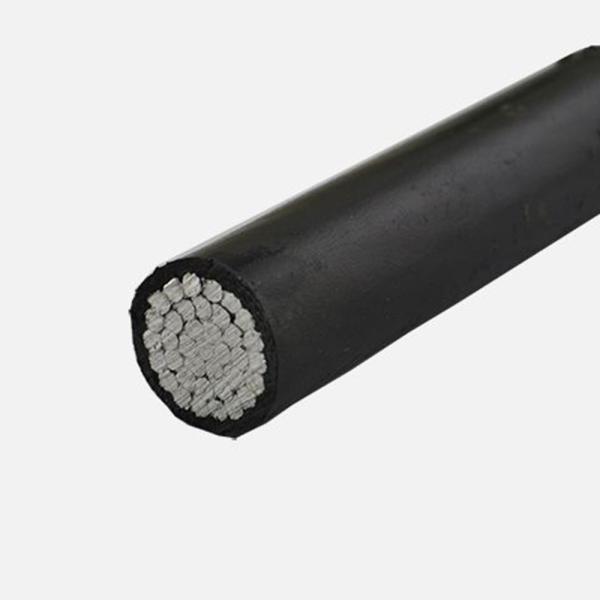

Aluminum overhead insulated cable is an overhead wire with an insulating layer and protective sheath. It uses a special cable similar to the production process of cross-linked cables. It is a new transmission method between overhead wires and underground cables.
Compared with underground cables, although overhead cables are more susceptible to external influences, are not safe enough, and are not beautiful, they are easier to erect, with high power supply reliability, good power supply stability, convenient installation and maintenance, and reasonable economy. It is still widely used in places far away from signal towers, where the number of users is small and changes are large, and it is difficult to lay underground cables.
Overhead cables are generally single-core cables. According to their structure, they can be divided into hard aluminum wire structure, hard drawn copper wire structure, aluminum alloy wire structure, steel core or aluminum alloy core support structure, and self-supporting three-core grain structure (wire core Can be hard aluminum or hard copper wire) etc.

Cable Size	Current Rating (Note 1)	Short Circuit Rating (Note 2)	Conductor Resistance @ 20°C	Conductor Resistance (ac) @ 80°C	Self Supporting System		Supporting Core System
					Induction Reactance @ 50Hz	Impendance (z) @ 50Hz at 80°C	Supporting Core Size	Induction Reactance @ 50Hz	Impendance (z) @ 50Hz at 80°C
mm²	(A)	kA	( /km)	( /km)	( /km)	( /km)	mm²	( /km)	( /km)
25	105	2.3	1.200	1.490	0.096	1.493	54.6	0.101	1.493
35	144	3.2	0.868	1.078	0.096	1.082	54.6	0.097	1.082
50	183	4.6	0.641	0.796	0.090	0.801	54.6	0.089	0.801
70	228	6.4	0.443	0.550	0.089	0.557	54.6	0.086	0.557
95	277	8.5	0.320	0.397	0.086	0.406	54.6	0.081	0.405
120	322	11.0	0.253	0.314	0.084	0.325	70	0.079	0.324
150	350	13.8	0.206	0.256	0.082	0.269	95	0.079	0.268

Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.

FAQ

1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates R&D, manufacture and sales of various wires and cables

2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc

3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.

4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.

5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
