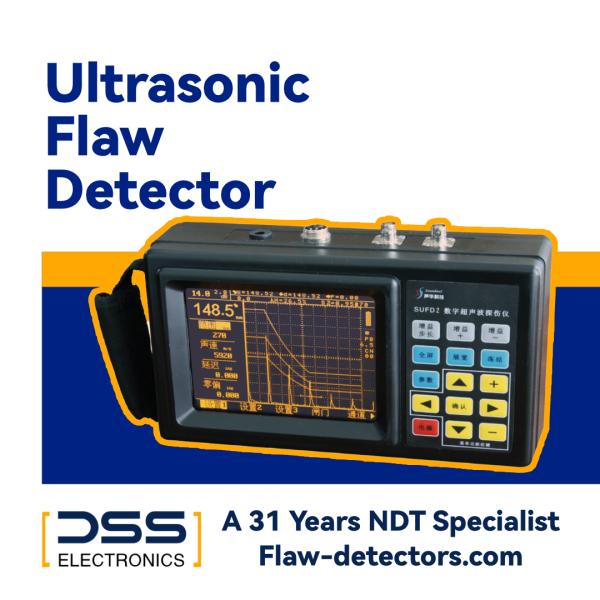

Functional features:
1, operation interface: man-machine dialogue (all Chinese), the use of function display window, menu operation,
Make it modern and practical.
2, process selection: boot into the instrument test state, press the parameter key, process selection, select the current use
In the lower left corner of the display screen, a schematic diagram of the process will be displayed, and the instrument will enter the process test
State, flaw detection can begin.
3, flaw detection process: in the form of software, the flaw detection process is solidified in the instrument, and the instrument is automatically called out for use when detecting.
4, flaw detection intelligence: the operator only needs to connect the probe, press the process key to select the process, which can be automatically adjusted by the instrument
The corresponding flaw detection process is used to detect the flaw, and the parameters of the instrument need not be adjusted against the process, so the instrument
The equipment has a strong flaw detection intelligence.
5, distance compensation: real-time compensation for remote flaw detection sensitivity, improve the height of far acoustic path waveform.
6, RF expansion: the echo in the gate is extended and displayed in RF mode.
7, process calibration: sound speed, incident zero, refraction Angle, probe front, distance amplitude curve and other parameters for calibration
Quasi-measurement and setting.
8, peak search: can retain the maximum damage wave scanned in the gate.
9, peak envelope: can retain the peak echo movement track.
10, average noise reduction: the use of digital signal processing technology, can be repeated overlapping echoes, reduce random noise.
11, detection mode: positive half wave, negative half wave, full wave detection and RF echo.
12, storage capacity: can store and play back more than 1000 data waveform images.
13, data storage: with the detection process and project files, crack report three types of data storage, playback functions.
14, EL display: can meet the wide temperature, vibration resistance, wide viewing Angle, high brightness, high contrast electroluminescence plain display
Indicator, fast response, real-time, clear, stable display of waveform, menu or positioning values, and
No backlight required, good visibility for both inside and outside field use.
15, data communication: through the standard LPT two-way communication interface and computer communication, waveform, charts, documents
Mutual transmission of the detection results to achieve computer management.
16, portable and practical: AC and DC integrated power supply, the instrument can work continuously for more than 6 hours under battery power supply,
And small size, light weight, low power consumption, small and portable, suitable for field inspection.
