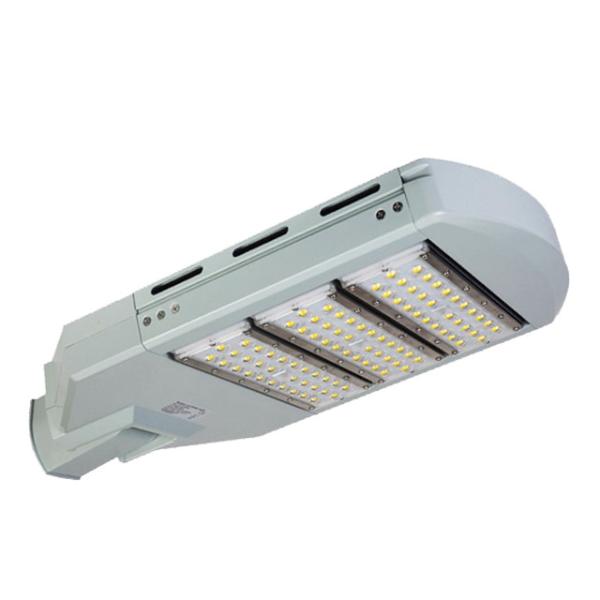

Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Specifications
Brand Name :
LEDYOND
Model Number :
LY-ST12120-XX
Certification :
CE RoHS
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000 pcs/month
Delivery Time :
7-10 work days
Packaging Details :
Standard export carton 1pcs/carton,WG:8.8kg, Cartion Size:64*40*16cm
Item :
120w led street light
LED source :
Luxeon 5050 led
Watt :
120W
Luminous :
19200lm
Driver :
Meanwell driver
Lifetime :
>50000 hours
Control :
Daylight control, motion sensor
Description

Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project

Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project

120W Modular led street light Dimension:

Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
120W Modular LED Street Light Specifications:

Par NO

Parameter

 LY-ST22090XX LY-ST22120XX LY-ST22150XX
Input voltage AC100V～240V 50/60HZ
System consumption(W) 90 120 150
Luminous flux(lm) 14850 19440 24000
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050
Current 0.43A/220V 0.57A/220V 0.72A/220V
CRI ＞75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs) ＞50000
Luminous efficiency(lm/w) ＞160
Dimmable YES＆NO YES＆NO YES＆NO
IP Rating IP65
Net Weigh(kg) 7.6 7.6 7.6
Size(mm) 569*328*98 569*328*98 569*328*98
Product details
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Adopt original Lumileds Luxeon 5050 LED Chip, highest brightness level chip, to ensure high light efficiency. Green environmental protection, no UV light and infrared radiation, no mercury pollution.
Use world top brand Meanwell driver, wide voltage 100-305V AC, power factor >0.98, efficiency > 88%, with good resistance to over-current,over-voltage, which fully ensure long life span and high stability of the products.
With world best quality PC lens, 100% original Japan imported materials, with very good quality. High/Low temperature resistant(-100~+150℃).
Modular Design
Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend
life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose. Nice appearance and non-fouling properties, Protection class IP66.
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
NEMA 7 pin Socket available
The most popular extend function of the smart dimming street light in this day and age. Connect the 0-10v driver, Meanwell brand or Inventronics or Sosen optionable By control the LORA gataway to control each LORA master on the NEMA socket. The way of Smart lighting system
LORA Gateway dimming system diameter
In order to make it compatible with your market LORA gataway, we suggest you take the LORA knobs and LORA master from your local supplier. Of course if you wanna take the system from us here is warmly welcomed. contact Pure for more details.
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Optical daylight sensor 3 pin introduction
When the sunshine getting weak in dusk, when the ambient surround lux lower than 10 lux (or by customer special indirection), the
light turn on automatically; After a night's light up work, then the dawn comes, when the surround lux higher than 30 lux (or by customer special indirection),
the light turn off automatically.
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government projectHighway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Company Profile:
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Projects
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
FAQ
Q1. What is your MOQ?
MOQ: 1 Pcs. Which is No MOQ.

Q2. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.

Q3. What is the payment terms of your formal order?
We accept payment via TT, Paypal, Western Union, and we offer EXW terms.

Q4.Can you guarantee the product quality?
We offer 3-10 years warranty to our products. We ensure and guarantee the production quality of all products, either sample order or formal order, with LEYOND's quality control process, we achieved less than 0.2% general failure rate, this was based on our sales records in the past 10 years.

Q5. Can you provide OEM and ODM service?
Yes, we can provide OEM and ODM product, with customized label design on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.

Q6. Can you provide the certificate and test reports?
Yes, please contact our sales staff, we can provide all the certificates, test reports, photometric reports and IES files of each of our luminaire.

Q7.How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q8.What is the lead time of your product?
Our standard lead time for sample is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
Highway street led lamp IK08 IK10 standard 100W 120W 150W modular led street light for government project
